1. Before setting up a LAN PC to act as a DMZ Host, configure it with a fixed IP Address.
2. In the "One Page Setup" screen, ensure the Private IP Address is set to the BAR-WL Wireless Router's default setting of
192.168.1.1. In the Public IP Address area, select "Specify an IP Address", then enter the IP Address and other necessary
information provided by your ISP.
3. Click "DMZ Host" from the Advanced Menu. Enter the fixed IP Address of the Exposed Host PC in the "DMZ Host" IP
Address location. Remember, entering "0" will disable this application and activate the BAR-WL Wireless Router's firewall.
4. Click "Apply".

2.12 Access Control

The Access Control feature allows administrators to block certain users from accessing the Internet or specific applications. Before
using this function, the network PCs which you want to control the access limitation must be assigned fixed IP Addresses. There
are three methods of limited access:

• IP Address

• URL Access Settings
• MAC Address

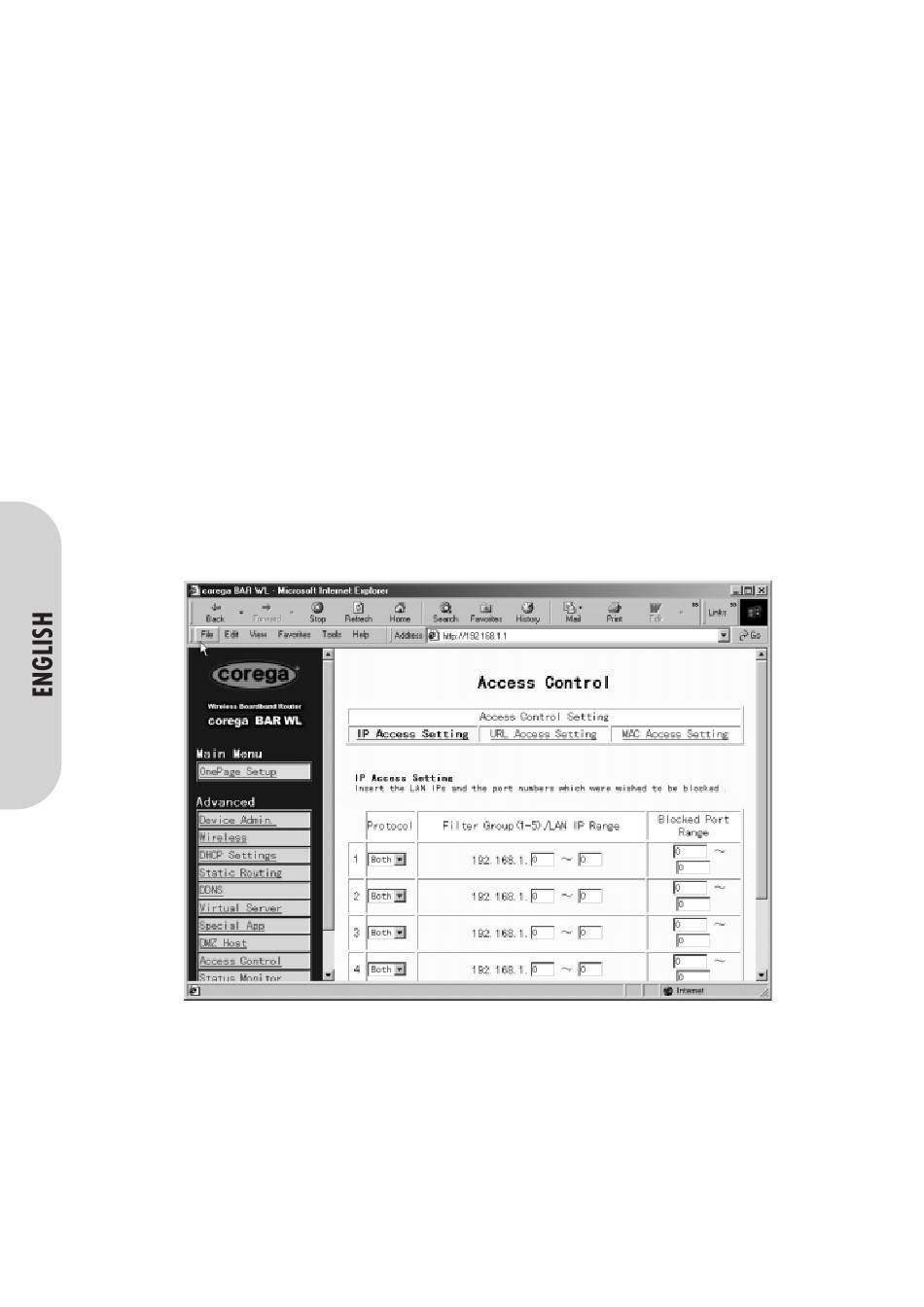

2.12.1 IP Address
• Protocol
Select the protocol type as "TCP" or "UDP" from the drop down list. If you are not sure which one to choose, select
"Both".
• Filter Group/LAN IP Range
Enter the range of IP addresses which you want them to be a controlled group to have the same access limitation.
• Block Port Range
Enter the range of port numbers which are used by the applications you wish to be blocked.
