7. Select "Obtain an IP address automatically". Click "OK". Restart your PC to complete the TCP/IP installation.

Appendix A.2 Fixed (Static) IP Addresses Configuration

Fixed (Static) IP addresses may be assigned to network devices for many reasons, such as the server PCs or printers which are

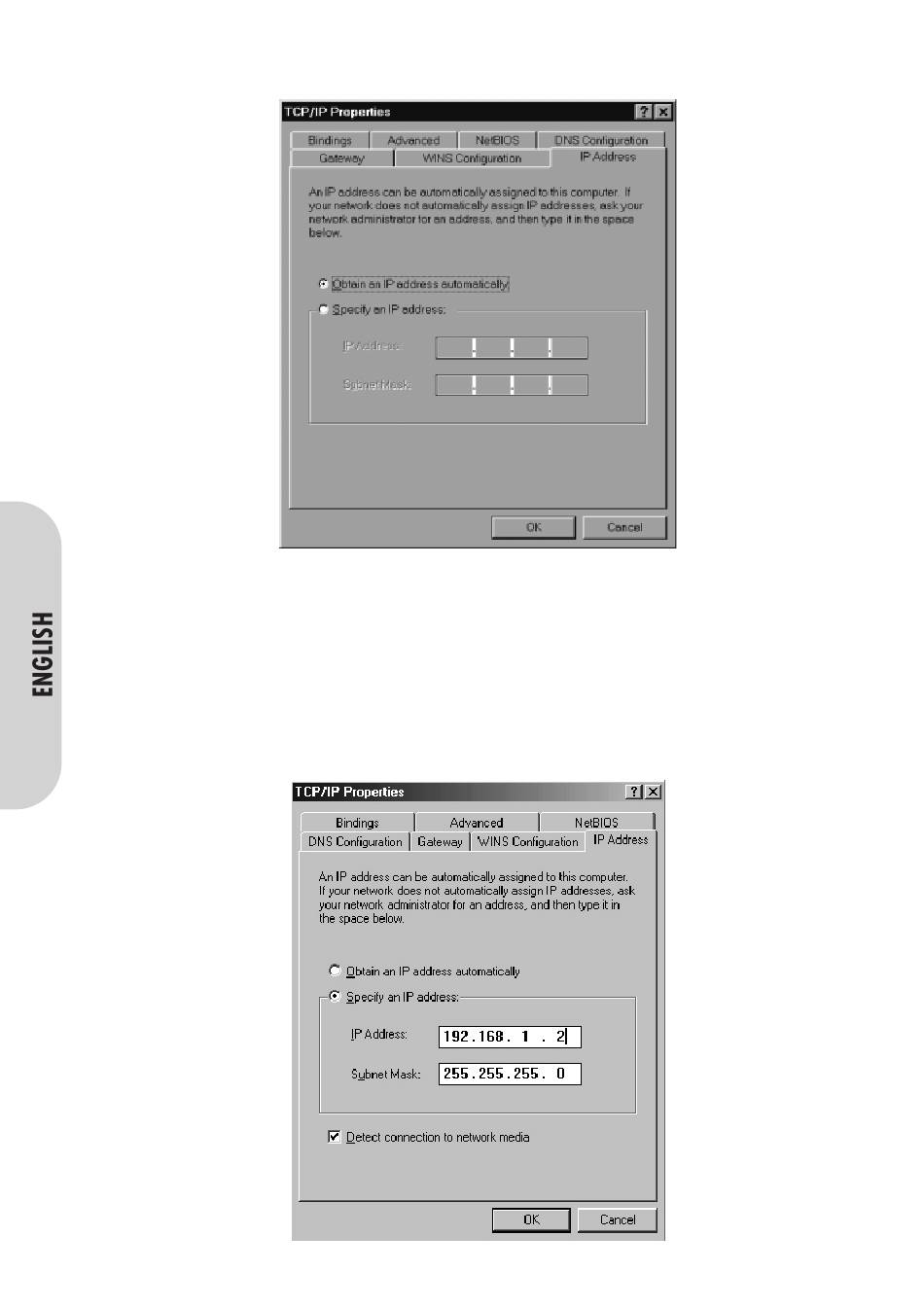

consistently accessed by multiple users. To set up computers with Fixed (Static)IP Addresses, go to the "IP Address" tab of the
"TCP/IP Properties" window as showing above.
1. Select "Specify an IP address" and enter "192.168.1.***" in the "IP Address" location (where *** is a number
between 2 and 254 used by the BAR-WL Wireless Router to identify each computer), and the default "Subnet Mask"
255.255.255.0". Note that no two computer on the same LAN can have the same IP address.
27
