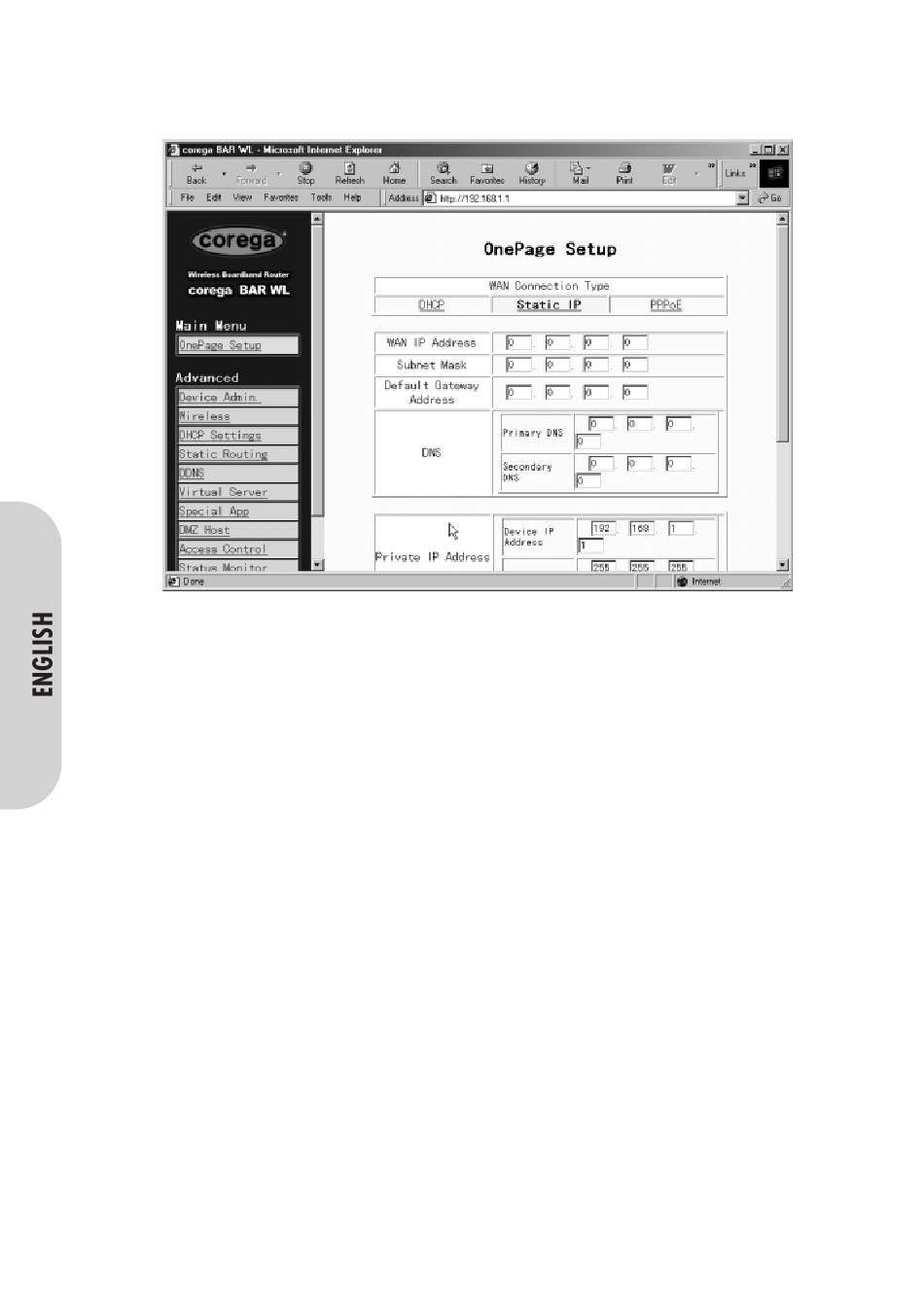

2.3.2 OnePage Setup with Static IP on the WAN

In this mode, the Public IP Address and Subnet Mask of the router are used by external users of the Internet (including your ISP).
• Specify WAN IP Address
Enter the IP address provided by your ISP.
• Subnet Mask
Enter the subnet mask values provided by your ISP.
• Default Gateway IP Address
Your ISP will provide you with the Default Gateway IP Address. This is sometimes called the 'Next-hop'.
• Domain Name Server (DNS)
Your ISP will provide you with at least one DNS IP Address. Multiple DNS IP settings are common. The first available DNS
entry is used in most cases.
• Private IP Address
This is the LAN IP address of the Router. This is the address that is used to configure the router. The default values are:
192.168.1.1 for IP Address and
255.255.255.0 for Subnet Mask.
For setting up of the wireless, see section 2.3.1
11
