Display shows The flue blower is defec-
"Alar fan fail" tive or the printed circuit
board cannot measure its
speed.

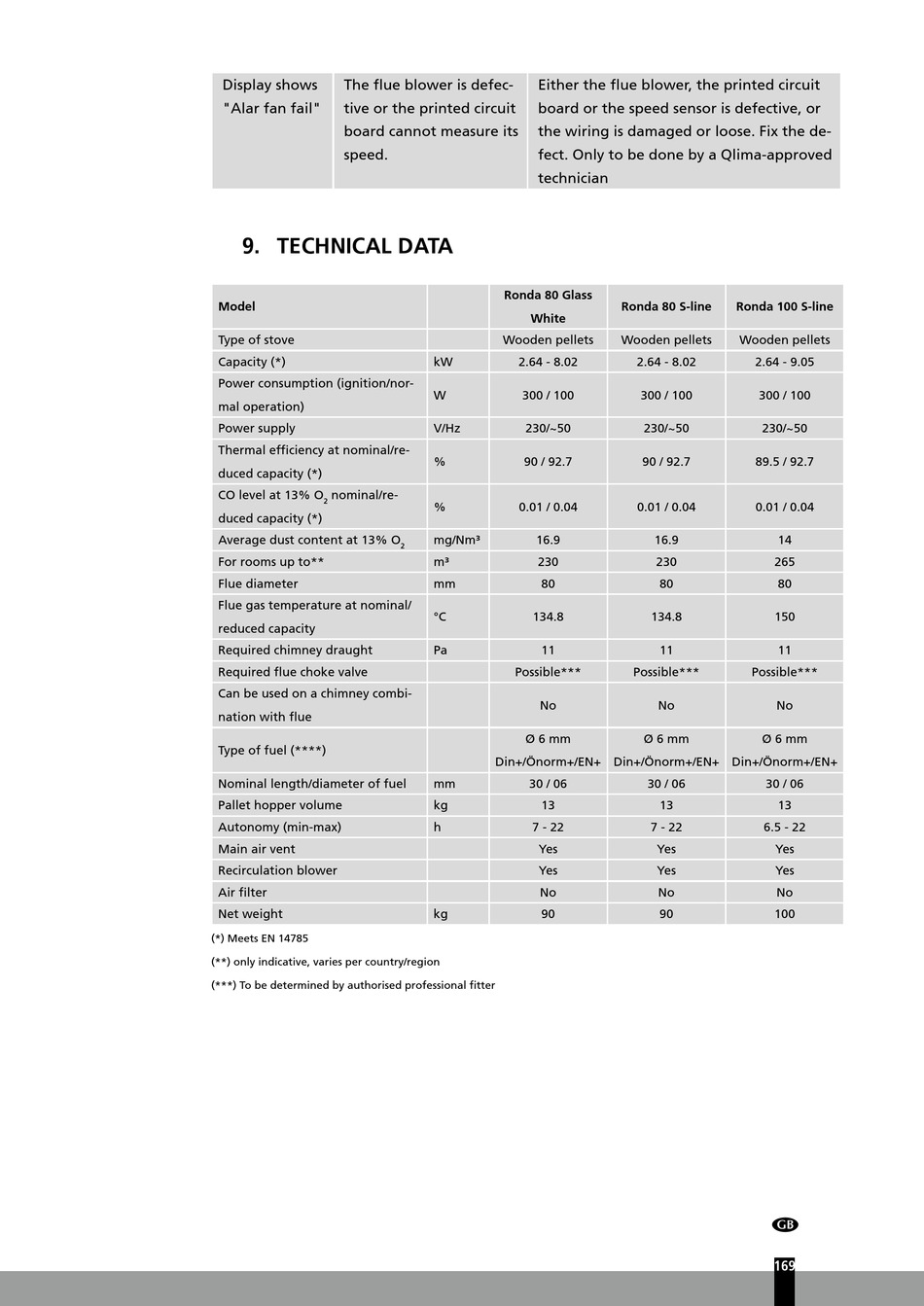

9. TECHNICAL DATA

Model
Type of stove
Capacity (*)
Power consumption (ignition/nor-
mal operation)
Power supply
Thermal efficiency at nominal/re-
duced capacity (*)
CO level at 13% O nominal/re-
2
duced capacity (*)
Average dust content at 13% O
For rooms up to**
Flue diameter
Flue gas temperature at nominal/
reduced capacity
Required chimney draught
Required flue choke valve
Can be used on a chimney combi-
nation with flue
Type of fuel (****)
Nominal length/diameter of fuel
Pallet hopper volume
Autonomy (min-max)
Main air vent
Recirculation blower
Air filter
Net weight
(*) Meets EN 14785
(**) only indicative, varies per country/region
(***) To be determined by authorised professional fitter
Either the flue blower, the printed circuit
board or the speed sensor is defective, or
the wiring is damaged or loose. Fix the de-
fect. Only to be done by a Qlima-approved
technician
Ronda 80 Glass
White
Wooden pellets
kW 2.64 - 8.02
W 300 / 100
V/Hz 230/~50
% 90 / 92.7
% 0.01 / 0.04
mg/Nm³ 16.9
2
m³ 230
mm 80
°C 134.8
Pa 11
Possible***
No
Ø 6 mm
Din+/Önorm+/EN+
mm 30 / 06
kg 13
h 7 - 22
Yes
Yes
No
kg 90
Ronda 80 S-line Ronda 100 S-line
Wooden pellets Wooden pellets
2.64 - 8.02 2.64 - 9.05
300 / 100 300 / 100
230/~50 230/~50
90 / 92.7 89.5 / 92.7
0.01 / 0.04 0.01 / 0.04
16.9 14
230 265
80 80
134.8 150
11 11
Possible*** Possible***
No No
Ø 6 mm Ø 6 mm
Din+/Önorm+/EN+ Din+/Önorm+/EN+
30 / 06 30 / 06
13 13
7 - 22 6.5 - 22
Yes Yes
Yes Yes
No No
90 100
