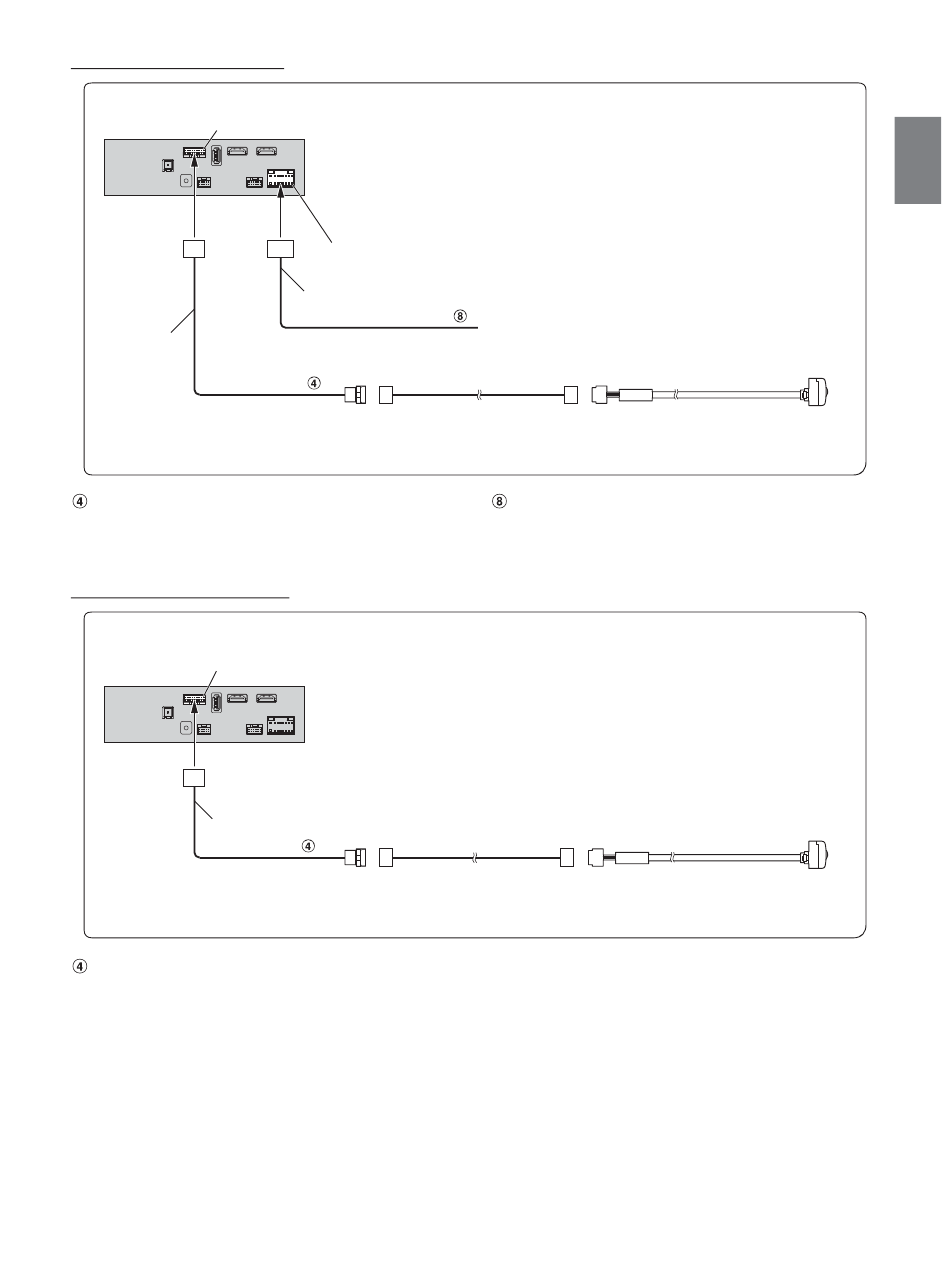

Connection of a Rearview camera
CAN I/F connector
CAN I/F cable
CAMERA
Direct CAMERA Input Connector
• Set the Camera Select to "Rear. " For details, refer to "Setting the Camera Input" in the OWNER'S MANUAL (CD-ROM).
Connection of a Frontview camera
CAN I/F connector
CAN I/F cable
CAMERA
Direct CAMERA Input Connector
• Set the Camera Select to "Front. " For details, refer to "Setting the Camera Input" in the OWNER'S MANUAL (CD-ROM).
Power Supply connector
Power cable
Reverse
(Orange/White)
Camera extension cable
(included with direct rearview camera)
Camera extension cable
(included with direct rearview camera)
Connect to the plus side of the car's reverse lamp.
HCE-C127D/HCE-C157D/HCE-C252RD
(sold separately)
Reverse Lead (Orange/White)
HCE-C257FD/HCE-C212FD
(sold separately)
