Alpine INE-W720D Installationsanleitung Seite 15

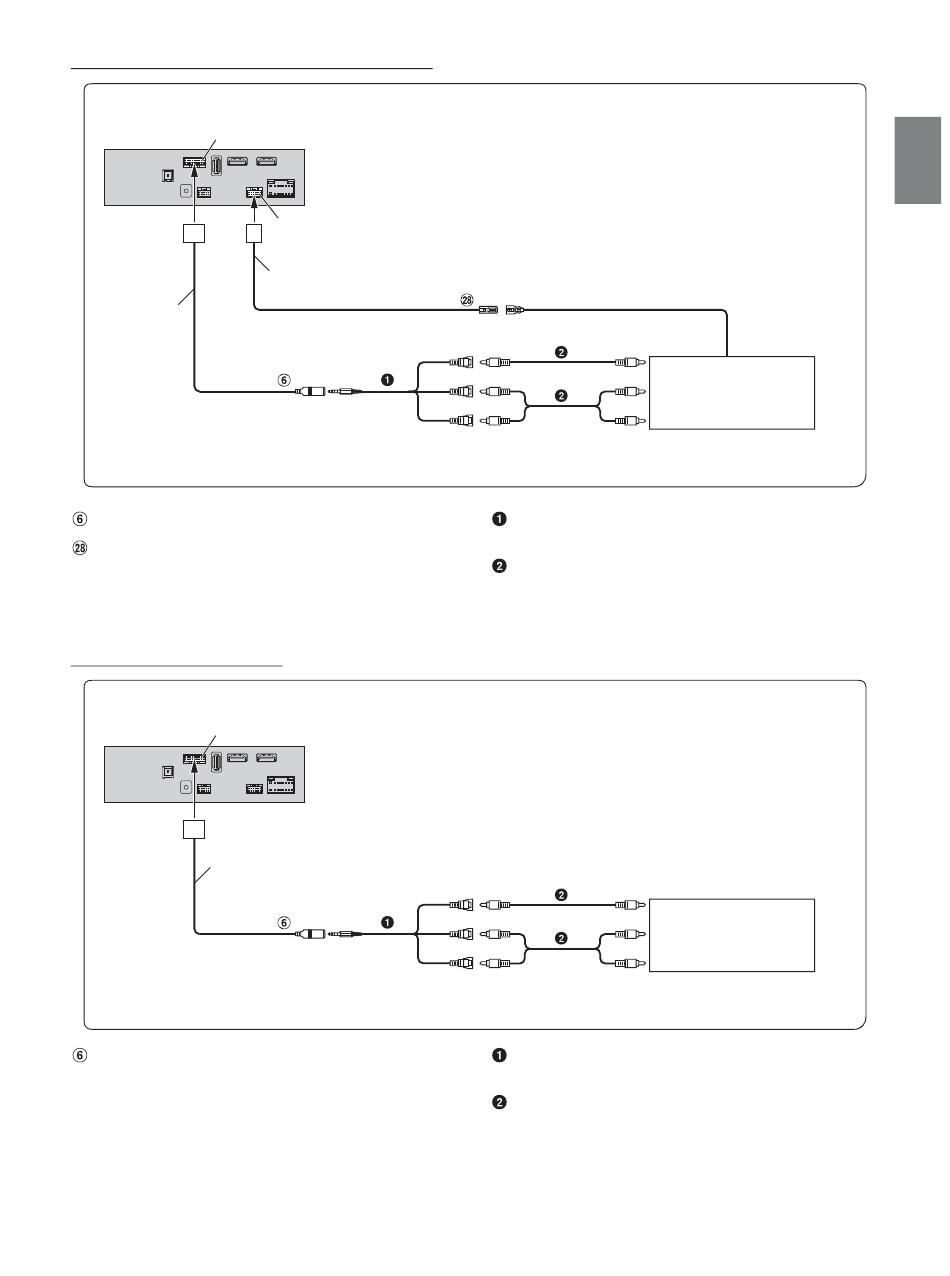

Connection of a Mobile Digital TV Receiver or USB Player
CAN I/F connector
CAN I/F cable
AUX INPUT
AUX Input Connector
Remote Control Output Lead (Brown)
• For details on using an AV/RCA interface cable (4-pole mini AV plug to 3-RCA), see "Usable AV/RCA Interface Cable (4-pole mini AV plug to 3-RCA)"
(page 7).
• Set the AUX Name to "DVB-T" or "USB Player. " For details, refer to "Setting the Auxiliary (AUX) Name" in the OWNER'S MANUAL (CD-ROM).
Connection of an External Device
CAN I/F connector
CAN I/F cable
AUX INPUT
AUX Input Connector
• You can change the name of an external device. For details, refer to "Setting the Auxiliary (AUX) Name" in the OWNER'S MANUAL (CD-ROM).
• For details on using an AV/RCA interface cable (4-pole mini AV plug to 3-RCA), see "Usable AV/RCA Interface Cable (4-pole mini AV plug to 3-RCA)"
(page 7).
W.REMOT connector
W.REMOTE cable
REMOTE OUT
(Brown)
(Yellow)
(Red)
(White)
(Yellow)
(Red)
(White)
REMOTE IN
(White/Brown)
To Video Output terminal
Mobile Digital TV Receiver
(sold separately)
or
USB Player (sold separately)
To Audio Output terminal
AV/RCA Interface Cable (4-pole mini AV plug to 3-RCA)
(sold separately)
RCA Extension Cable (sold separately)
To Video Output terminal
External Device
(sold separately)
To Audio Output terminal
AV/RCA Interface Cable (4-pole mini AV plug to 3-RCA)
(sold separately)
RCA Extension Cable (sold separately)
13
-EN
