8. Warranty

We offer a 12 month warranty on the function of the device. The warranty is
strictly limited to technical defects of the device. Further receivables can not be
accepted. In addition the „GENERAL CONDITIONS FOR THE SUPPLY OF PRODUCTS
AND SERVICES OF THE ELECTRICAL AND ELECTRONICS INDUSTRY" are relevant.

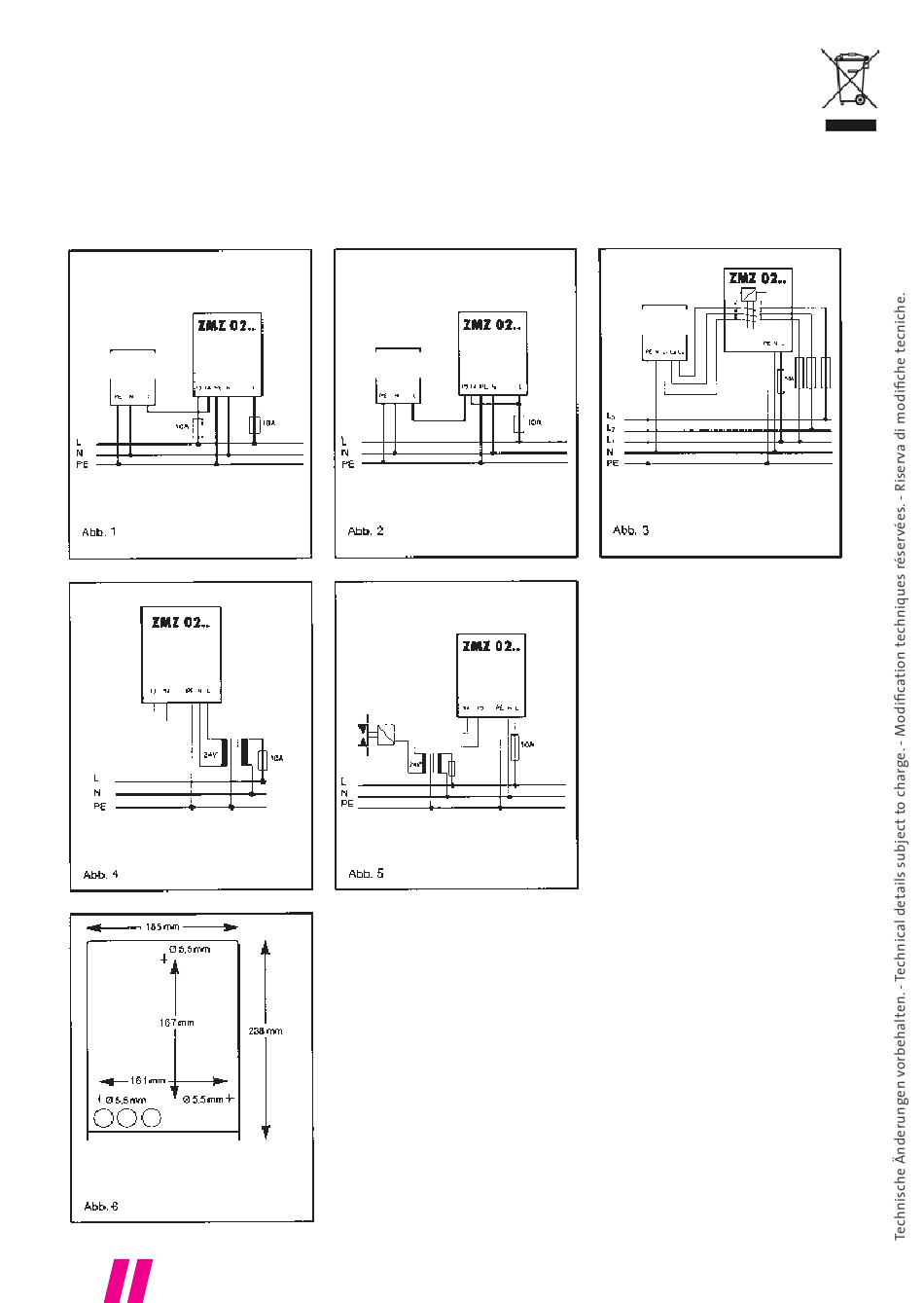

9. Wiring diagram and scale drawing

consumer
Consumer connection with
potential-free relay contact
potential-free
relay contact
Option L
Safety low-tension 24 V
Dimensions
NZR – Ihr Partner für Energiemessung
18
consumer
Direct consumer connection
Option Z
Electronical time control for shower
consumer
Three-phase consumer connection
via contactor
