4. Short manual ZMZ 0215

4.1 Settings

For all settings the four buttons on
side-cut-out of terminal cover are
used. Press button „Betrieb" before
and after every change of settings.
„Außer Betrieb" is displayed after
first pushing the button. „Reset"
follwed by version number of
software is displayed after pushing
the button in normal operation. All
changeable values can be displayed
by multiple pushing of button
„Menü".
Depending on version the following
information are displayed:
„Zeit" (time)
„Münzen" (coins)
optional „Nachlauf" (lag)
optional „Vorlauf" (advance) (start delay)
optional „ext. Start"
optional „ext. Stop"
4.2 Setting of running time
Within the menu „Zeit" the cursor (underscore) can be scrolled to the position by multip-
le pushing the button „Auswahl".
Push the button „Ändern" to set the value of basic time in HH : MM : SS.
Push the button „Betrieb" to return to operation mode or „Menü" for next setting.

4.3 Number of coins

Calling up the menu „Münzen" set the number of coins needed to start the device by
pushing the „Ändern" button. Refer to 4.2 for further settings.
NZR – Ihr Partner für Energiemessung

(running time)

(number of coins)
(lag of 2 relay)
nd
(start with external button)
(stop with external button)
Münzprüfer
Einstellungen
Prozessor

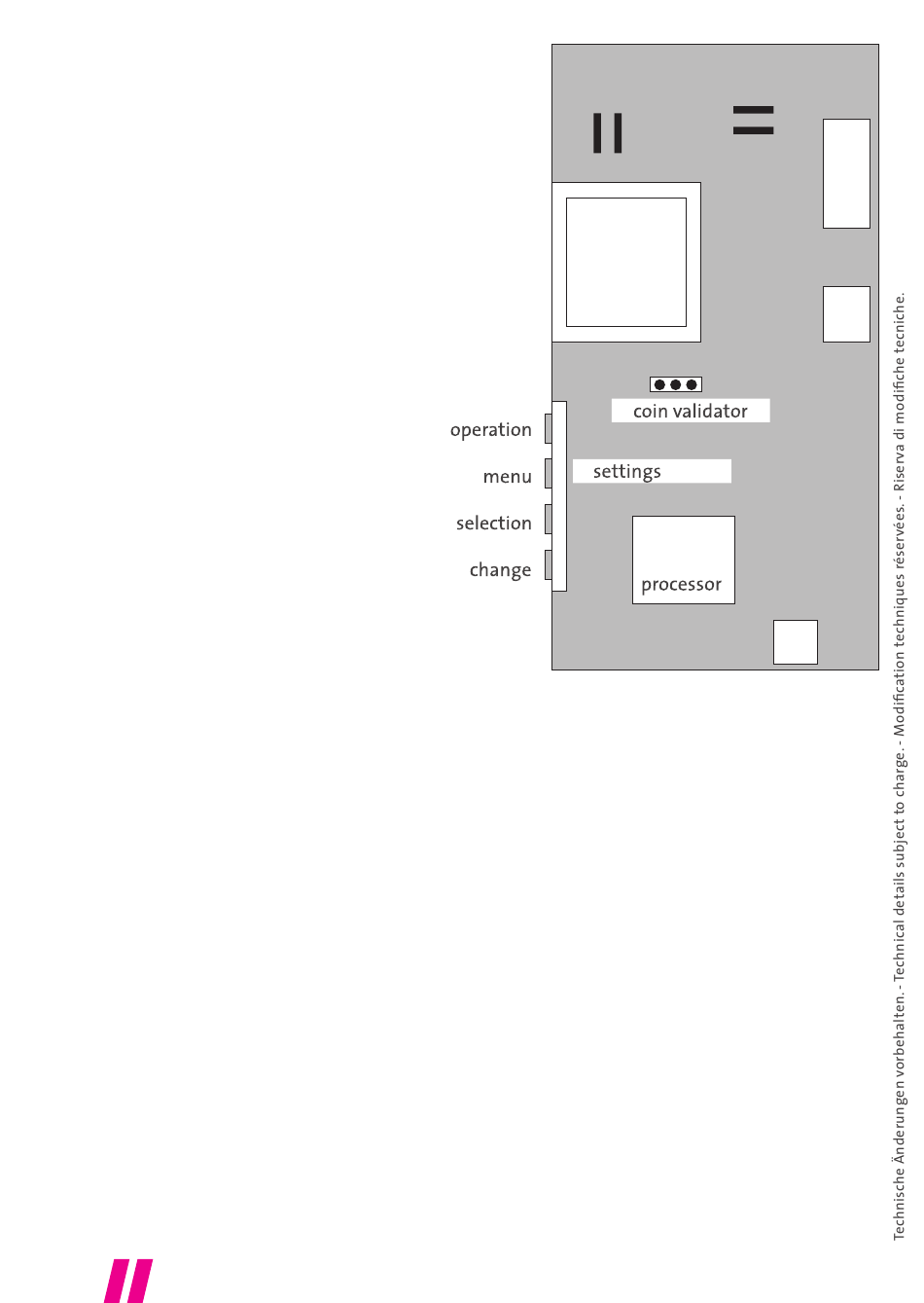

Circuit board ZMZ 0215
