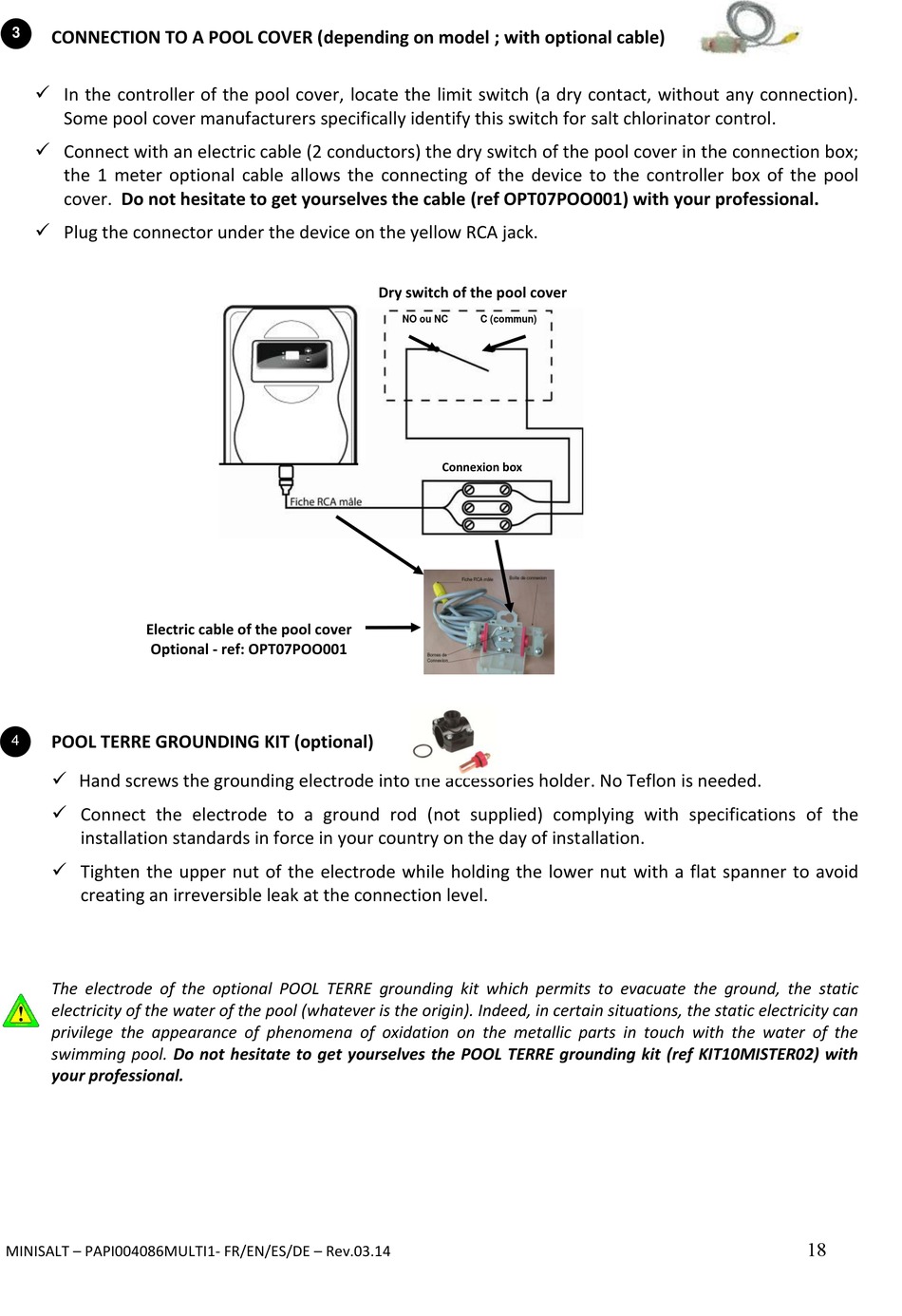

CONNECTION TO A POOL COVER (depending on model ; with optional cable)
 In the controller of the pool cover, locate the limit switch (a dry contact, without any connection).
Some pool cover manufacturers specifically identify this switch for salt chlorinator control.
 Connect with an electric cable (2 conductors) the dry switch of the pool cover in the connection box;
the 1 meter optional cable allows the connecting of the device to the controller box of the pool
cover. Do not hesitate to get yourselves the cable (ref OPT07POO001) with your professional.
 Plug the connector under the device on the yellow RCA jack.
Electric cable of the pool cover
Optional - ref: OPT07POO001

POOL TERRE GROUNDING KIT (optional)

4
 Hand screws the grounding electrode into the accessories holder. No Teflon is needed.
 Connect the electrode to a ground rod (not supplied) complying with specifications of the
installation standards in force in your country on the day of installation.
 Tighten the upper nut of the electrode while holding the lower nut with a flat spanner to avoid
creating an irreversible leak at the connection level.
The electrode of the optional POOL TERRE grounding kit which permits to evacuate the ground, the static
electricity of the water of the pool (whatever is the origin). Indeed, in certain situations, the static electricity can
privilege the appearance of phenomena of oxidation on the metallic parts in touch with the water of the
swimming pool. Do not hesitate to get yourselves the POOL TERRE grounding kit (ref KIT10MISTER02) with
your professional.
