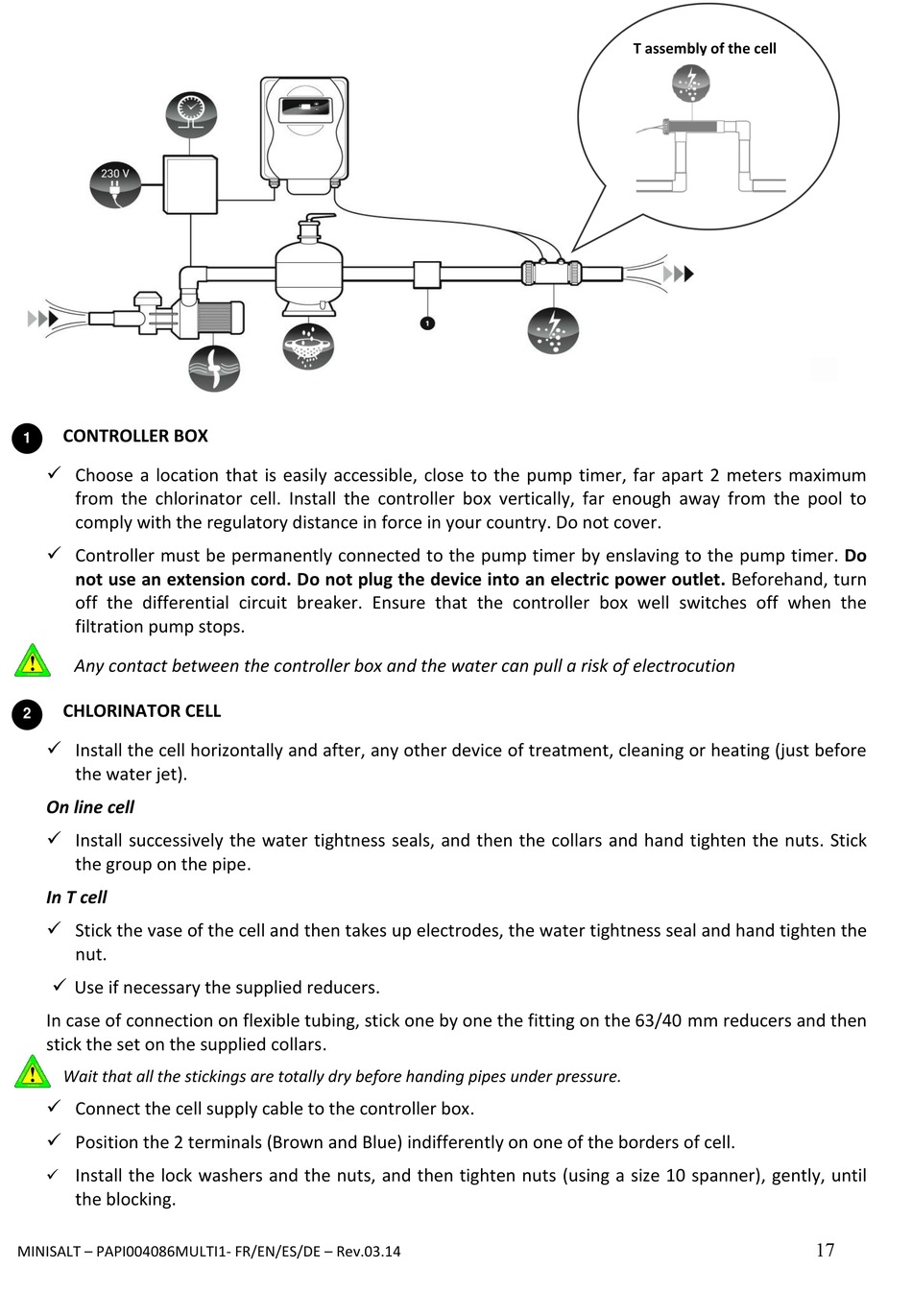

CONTROLLER BOX

1
 Choose a location that is easily accessible, close to the pump timer, far apart 2 meters maximum
from the chlorinator cell. Install the controller box vertically, far enough away from the pool to
comply with the regulatory distance in force in your country. Do not cover.
 Controller must be permanently connected to the pump timer by enslaving to the pump timer. Do
not use an extension cord. Do not plug the device into an electric power outlet. Beforehand, turn
off the differential circuit breaker. Ensure that the controller box well switches off when the
filtration pump stops.
Any contact between the controller box and the water can pull a risk of electrocution

CHLORINATOR CELL

2
 Install the cell horizontally and after, any other device of treatment, cleaning or heating (just before
the water jet).
On line cell
 Install successively the water tightness seals, and then the collars and hand tighten the nuts. Stick
the group on the pipe.
In T cell
 Stick the vase of the cell and then takes up electrodes, the water tightness seal and hand tighten the
nut.
 Use if necessary the supplied reducers.
In case of connection on flexible tubing, stick one by one the fitting on the 63/40 mm reducers and then
stick the set on the supplied collars.
Wait that all the stickings are totally dry before handing pipes under pressure.
 Connect the cell supply cable to the controller box.
 Position the 2 terminals (Brown and Blue) indifferently on one of the borders of cell.
 Install the lock washers and the nuts, and then tighten nuts (using a size 10 spanner), gently, until
the blocking.
MINISALT – PAPI004086MULTI1- FR/EN/ES/DE – Rev.03.14
T assembly of the cell
