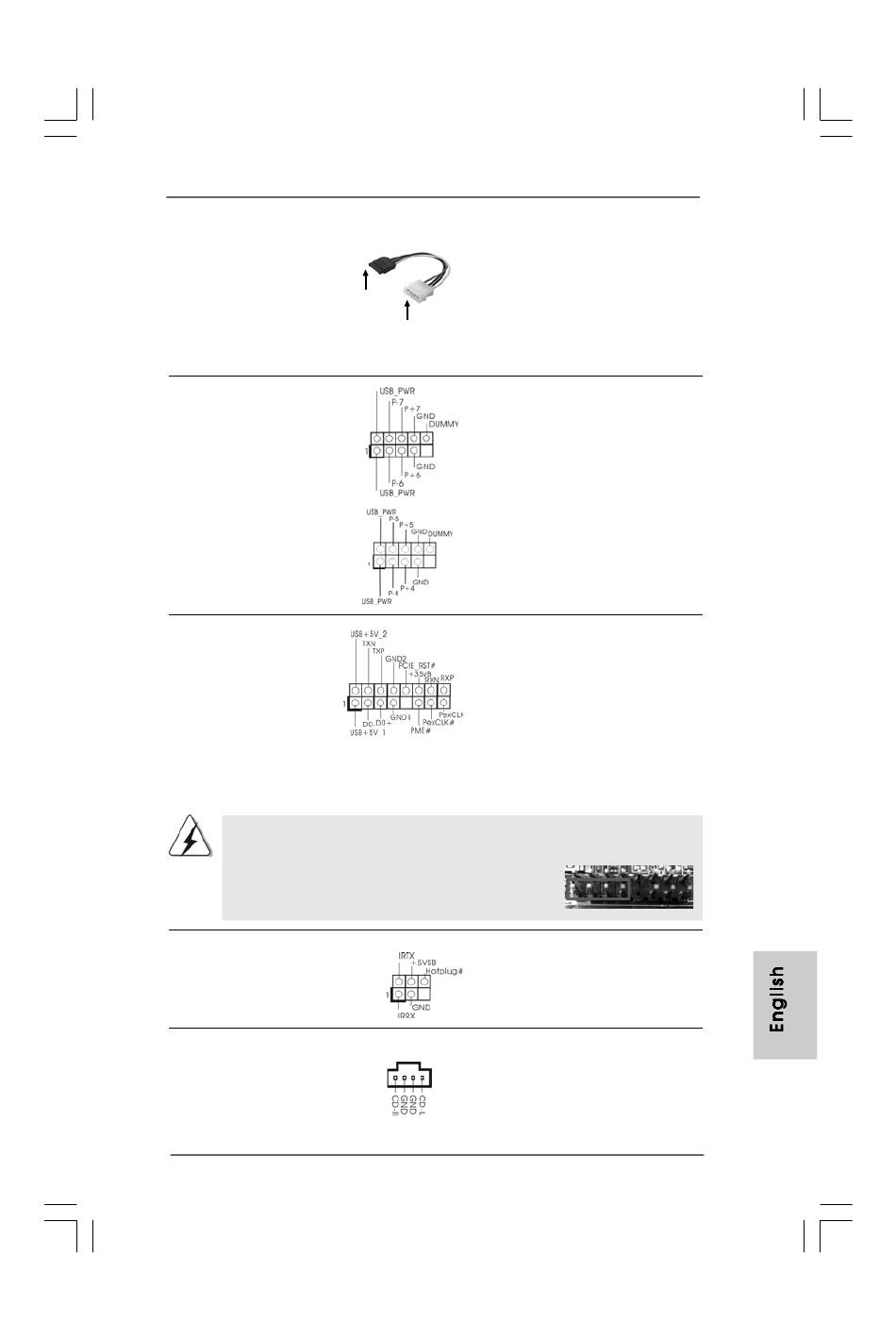

Serial ATA (SATA)
Power Cable
(Optional)
connect to the SATA
HDD power connector
USB 2.0 Headers
(9-pin US6_7)
(see p.2 No. 27)
(9-pin USB4_5)
(see p.2 No. 28)
WiFi/E Header
(15-pin WIFI/E)
(see p.2 No. 20)
If you don't plan to use WiFi+AP functin on this motherboard, this header can be
used as a 4-Pin USB 2.0 header to support one USB 2.0 port. To connect the
4-Pin USB device cable to this header, please refer to
this picture for proper installation.
DeskExpress Hot Plug Detection
Header
(5-pin IR1)
(see p.2 No. 19)
Internal Audio Connectors
(4-pin CD1)
(CD1: see p.2 No. 23)
ASRock 4CoreN73PV-HD720p Motherboard
Please connect the black end of
SATA power cable to the power
connector on each drive. Then
connect the white end of SATA
connect to
power cable to the power
the power
connector of the power supply.
supply
Besides four default USB 2.0
ports on the I/O panel, there are
two USB 2.0 headers on this
motherboard. Each USB 2.0
header can support two USB
2.0 ports.
This header supports WiFi+AP
function with ASRock
WiFi-802.11g or WiFi-802.11n
module, an easy-to-use wireless
local area network (WLAN)
adapter. It allows you to create a
wireless environment and enjoy the
convenience of wireless network
connectivity.
This header supports the Hot
Plug detection function for
ASRock DeskExpress.
This connector allows you
to receive stereo audio input
CD1
from sound sources such as
a CD-ROM, DVD-ROM, TV
tuner card, or MPEG card.
2 1
2 1
2 1
2 1
2 1
