ASROCK 4CoreN73PV-HD720p Handbuch Seite 2

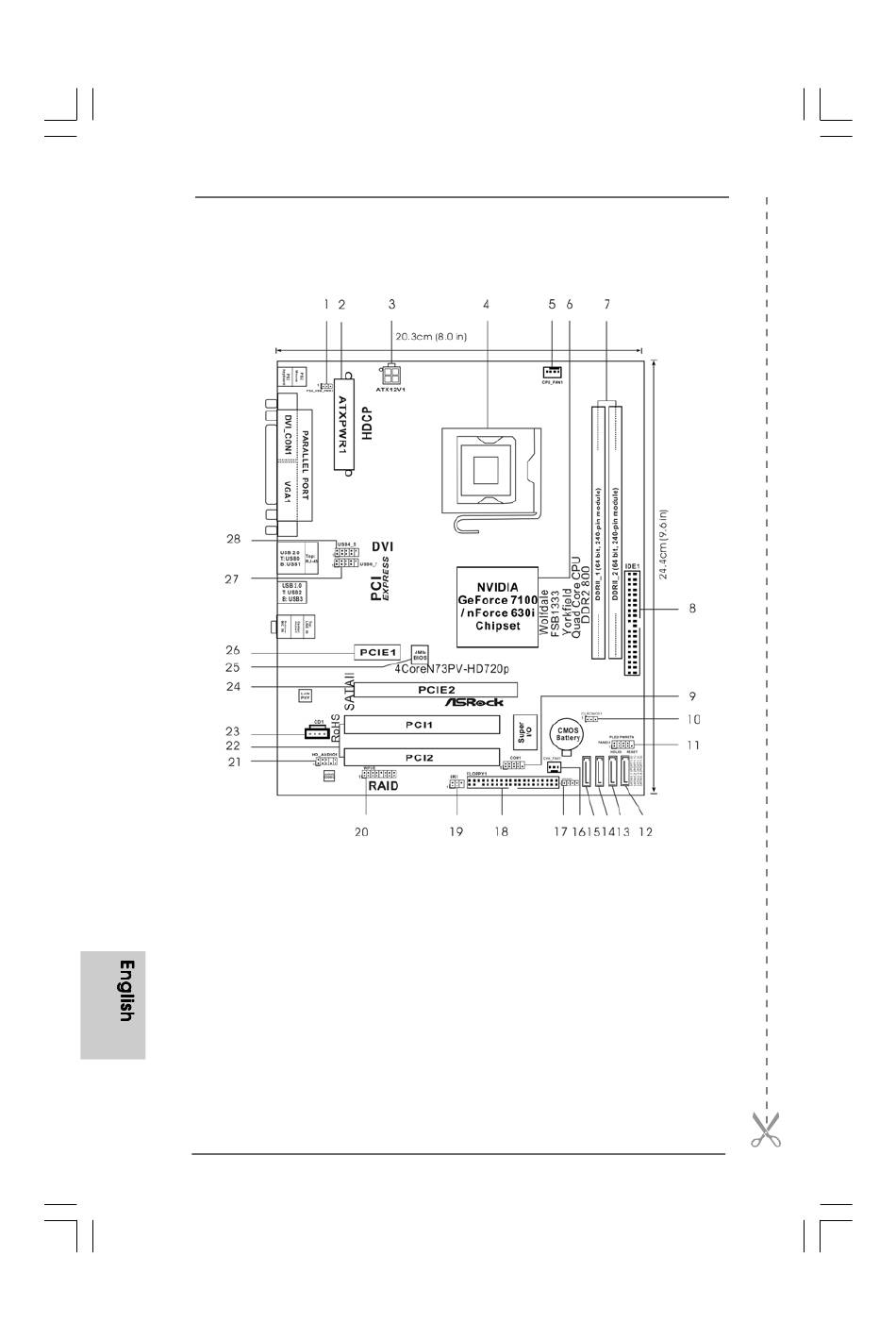

Motherboard L Motherboard Layout Motherboard L
Motherboard L Motherboard L
1 PS2_USB_PWR1 Jumper
2 ATX Power Connector (ATXPWR1)
3 ATX 12V Connector (ATX12V1)
4 775-Pin CPU Socket
5 CPU Fan Connector (CPU_FAN1)
6 North Bridge Controller
7 2 x 240-pin DDR2 DIMM Slots
(DDRII_1 and DDRII_2; Yellow)
8 IDE1 Connector (IDE1, Blue)
9 Serial Port Connector (COM1)
10 Clear CMOS Jumper (CLRCMOS1)
11 System Panel Header (PANEL1)
12 Fourth SATAII Connector (SATAII_4 (PORT1.3))
13 Third SATAII Connector (SATAII_3 (PORT1.2))
14 Secondary SATAII Connector (SATAII_2 (PORT1.1))
15 Primary SATAII Connector (SATAII_1 (PORT1.0))
2 2 2 2 2
ASRock 4CoreN73PV-HD720p Motherboard
ayout ayout ayout
ayout
16 Chassis Fan Connector (CHA_FAN1)
17 Chassis Speaker Header (SPEAKER 1)
18 Floppy Connector (FLOPPY1)
19 DeskExpress Hot Plug Detection Header
(IR1)
20 WiFi/E Header (WIFI/E)
21 Front Panel Audio Header (HD_AUDIO1)
22 PCI Slots (PCI1 - 2)
23 Internal Audio Connector: CD1 (Black)
24 PCI Express x16 Slot (PCIE2)
25 SPI Flash Memory (4Mb)
26 PCI Express x1 Slot (PCIE1)
27 USB 2.0 Header (USB6_7, Blue)
28 USB 2.0 Header (USB4_5, Blue)
