1. n
1.1 g
enerAl notes on sAfety
This operation manual is applicable for the machine UPG
5-R. The machine may only be handled by personnel who
are qualified.
Hold power tools by insulated gripping surfaces when
performing an operation where the cutting tool may con-
tact hidden wiring or its own cord. Contact with a «live»
wire will make exposed metal parts of the tool «live» and
shock the operator.
WARNING Read all safety warnings and all in-
structions. Failure to follow the warnings and in-
structions may result in electric shock, fire and/or
serious injury.
Save all warnings and instructions for future refer-
ence.
1.2 u
se of the mAchine for purposes for
which it is intended
The machine is designed to satin finish, mat, texture,
brush, polish, and smooth metal, wood, plastics, and
such like, and also stone without water.
1.3 i
ncorrect use
All uses other than those described under section
1.2 are regarded as incorrect use and are there-
fore not admissible.
1.4 ec
declArAtion of conformity
Otto Suhner GmbH of Trottäcker 50, D-79713 Bad Säck-
ingen, hereby declares under sole responsibility that the
product with the serial or batch no. (see reverse side) com-
plies with the requirements under the Directive 2014/30/
EU, 2006/42/EC, 2011/65/EU. Applied standards: EN ISO
12100, EN 60745, EN 55014-1, EN 55014-2, EN 61000-3-
2, EN 61000-3-3. Document Agent: M. Voyame. D-Bad
Säckingen, 06/2017.
M. Voyame/Division manager
2. c
2.1 p
rior to tAKing the mAchine into serVice
Before connecting tool to a power
source, be sure the voltage sup-
plied is the same as specified on
the name plate of the tool. The power sup-
ply should not vary more than 10% above or below the
voltage indicated on the nameplate. Check grinding tool
prior to use. The grinding tool must be mounted centrally
and positioned against the limit stop. The maximum al-
lowable speed of the tool and of the chuck may not be
exceeded under any circumstances. Observe national
20
S
oteS on afety
ommISSIonIng
regulations. Fit hand protection.
2.2 t
AKing the mAchine into serVice

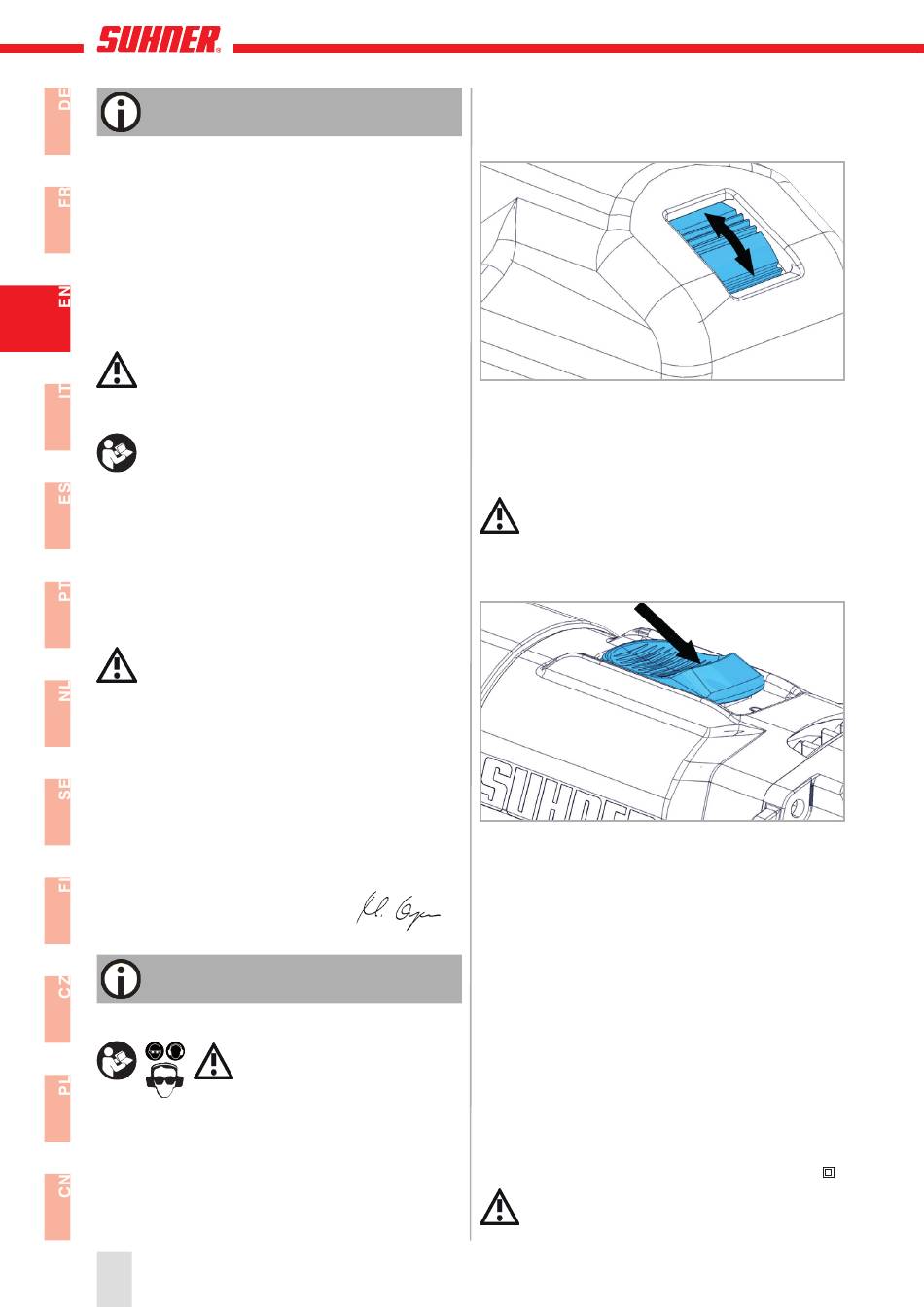

Preselect speed with adjusting wheel according to speed
table.
-1
Level 1: 1800 min
-1
Level 2: 2300 min
-1
Level 3: 2700 min
During operation never exceed the speed which
has been matched to the grinding tool specifica-
tions!
2.2.1 t /t
unr on urn off
The switch must be at the OFF position, i.e. «0» is visible.
To switch ON the machine, push the switch forwards until
you hear it engage, i.e. «1» is visible. Press the ON/OFF
swith to trigger the blocking and the machine shuts down.
2.3 r

Ating dAtA

Power voltage
Power Input
Power Output
No-load speed
Max. tool Ø
Grinding spindle thread
Sound pressure level EN 60745
Noise emission level
Vibration EN 60745
Weight w/o cable
Protection class
The specified vibration value was measured with a
standardised test procedure. It can be used to
compare products or to make an initial assess-
-1
Level 4: 3200 min
-1
Level 5: 3600 min
-1
Level 6: 4000 min
120/230/240V, 50/60Hz
1050W
650W
-1
4'400 min
125mm
M14 / ø19
86dB(A), K=3dB
97dB(A), K=3dB
2 2
5.5m/s , K=1.5m/s
2.3kg
II
