INSTALLATION

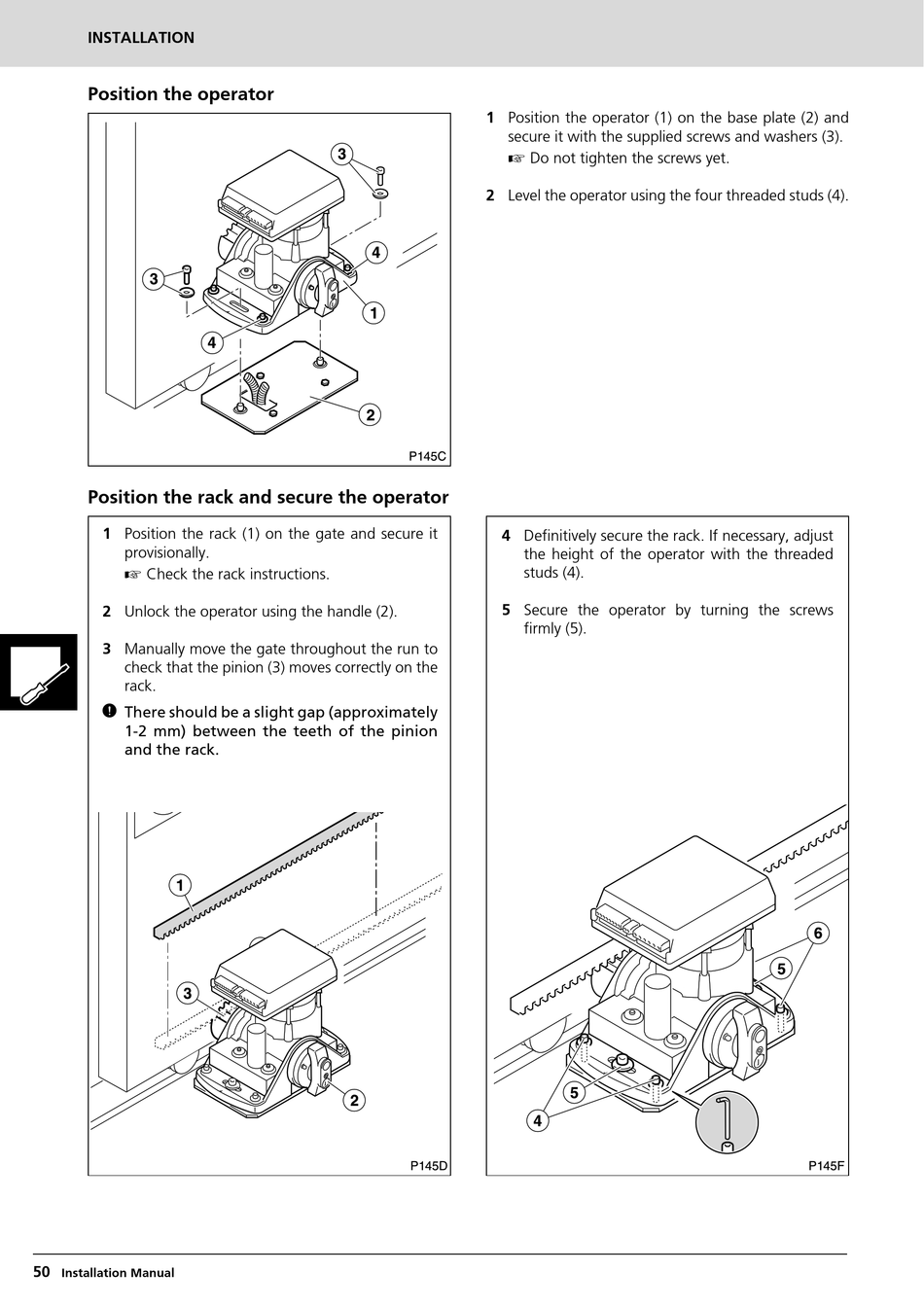

Position the operator
Position the rack and secure the operator
1 Position the rack (1) on the gate and secure it
provisionally.

Check the rack instructions.
2 Unlock the operator using the handle (2).
3 Manually move the gate throughout the run to
check that the pinion (3) moves correctly on the
rack.
O
There should be a slight gap (approximately
1-2 mm) between the teeth of the pinion
and the rack.
50
Installation Manual
1 Position the operator (1) on the base plate (2) and
secure it with the supplied screws and washers (3).

Do not tighten the screws yet.
2 Level the operator using the four threaded studs (4).
4 Definitively secure the rack. If necessary, adjust
the height of the operator with the threaded
studs (4).
5 Secure the operator by turning the screws
firmly (5).
