DESCRIPTION OF THE PRODUCT

1

ELEMENTS OF THE COMPLETE INSTALLATION

1 Gate
2 Rack
3 Operator with control panel
4 Magnetic key or proximity key reader
5 Wall pushbutton/key switch
6 Antenna
7 Closing safety photocells
8 Limit switch magnets
9 Mechanical strip
10 Traffic light
ELECTRICAL CABLING:
Element
A: Main power supply
B: Flashing light
C: Photocells (Tx / Rx)
D: Pushbutton/wall key
E: Antenna

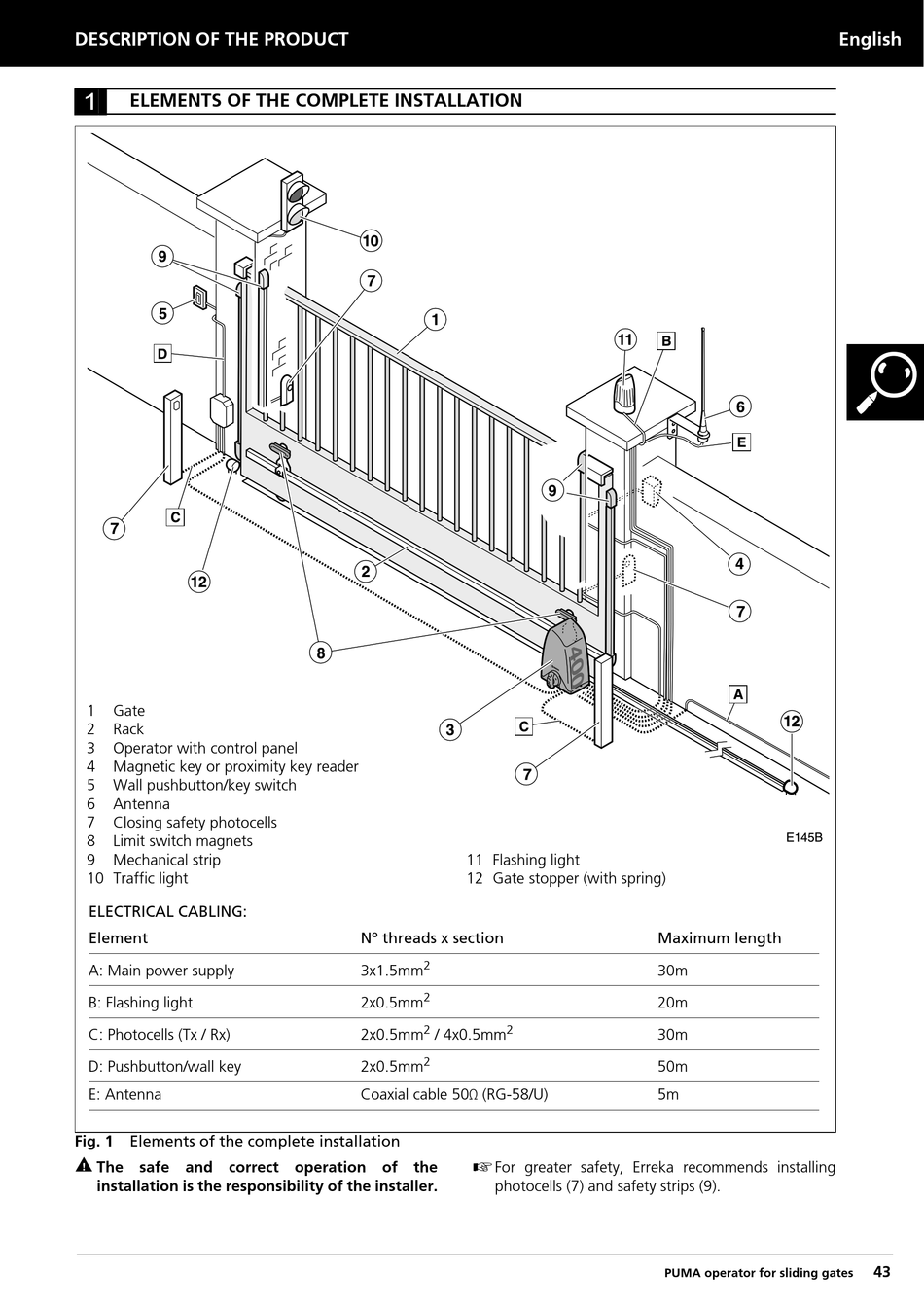

Fig. 1 Elements of the complete installation

The safe and correct operation of the
installation is the responsibility of the installer.
11 Flashing light
12 Gate stopper (with spring)
Nº threads x section
2
3x1.5mm
2
2x0.5mm
2 2
2x0.5mm / 4x0.5mm
2
2x0.5mm
k
Coaxial cable 50 (RG-58/U)

For greater safety, Erreka recommends installing
photocells (7) and safety strips (9).
Maximum length
30m
20m
30m
50m
5m
PUMA operator for sliding gates
