C0522 through C1030
Remote Condenser Models - Installation Manual

For The Installer: Remote Condenser

Locate the condenser as near as possible to the
interior location of the ice machine.
Note: The location of the condenser is relative to
the ice machine is LIMITED by the specification on
the prior page.
Meet all applicable building codes.
Remote Condenser
Interconnecting Wire
Power Supply
Roof Attachment
Install and attach the remote condenser to the roof
of the building, using the methods and practices of
construction that conform to the local building
codes, including having a roofing contractor secure
the condenser to the roof.
Remote Condenser
Refrigerant Connections
Remote Condenser
Electrical Connection

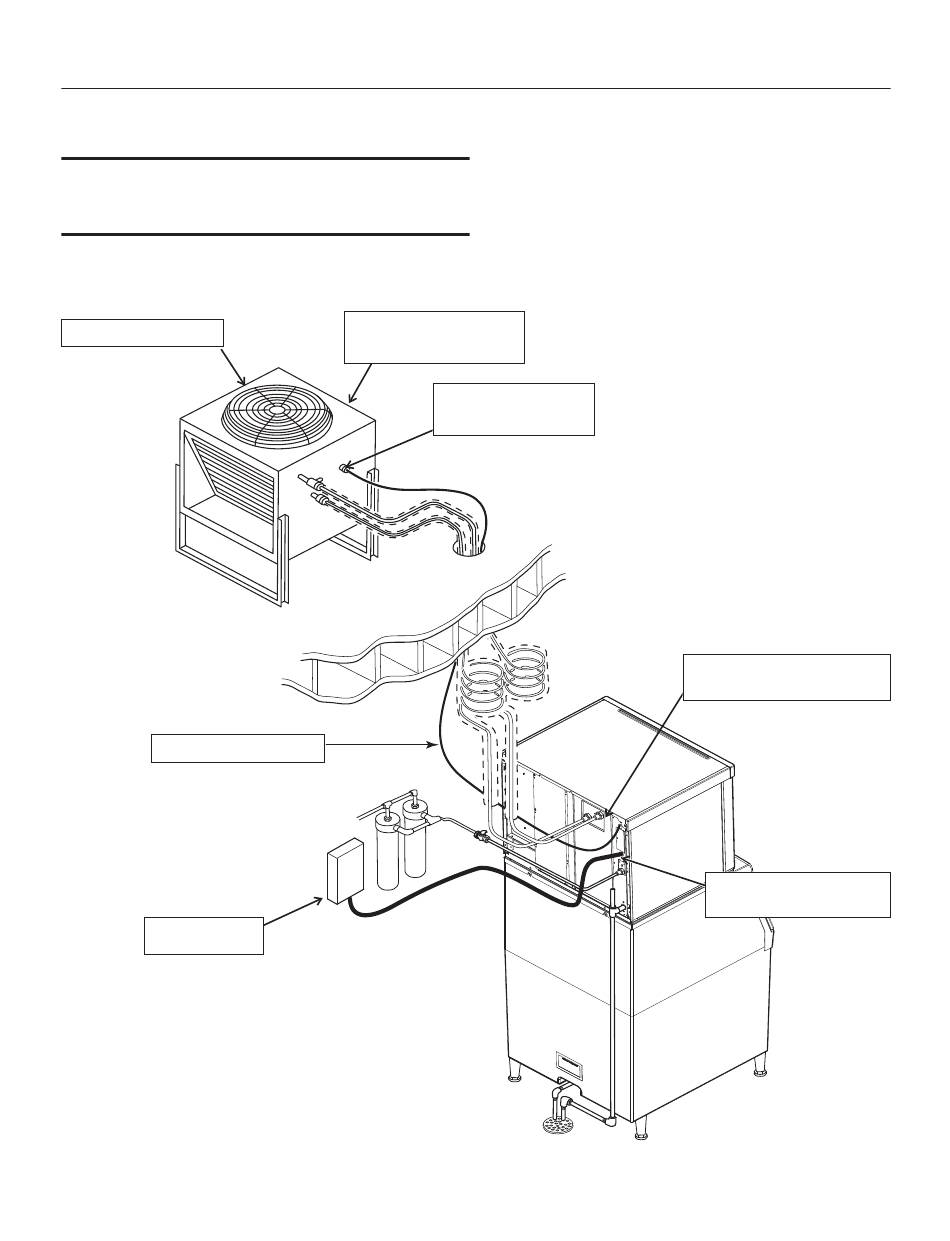

Typical System Installation
June 2007
Page 10
Ice Machine Refrigerant
Connection
Ice Machine Electrical
Connection
