Appendix 4

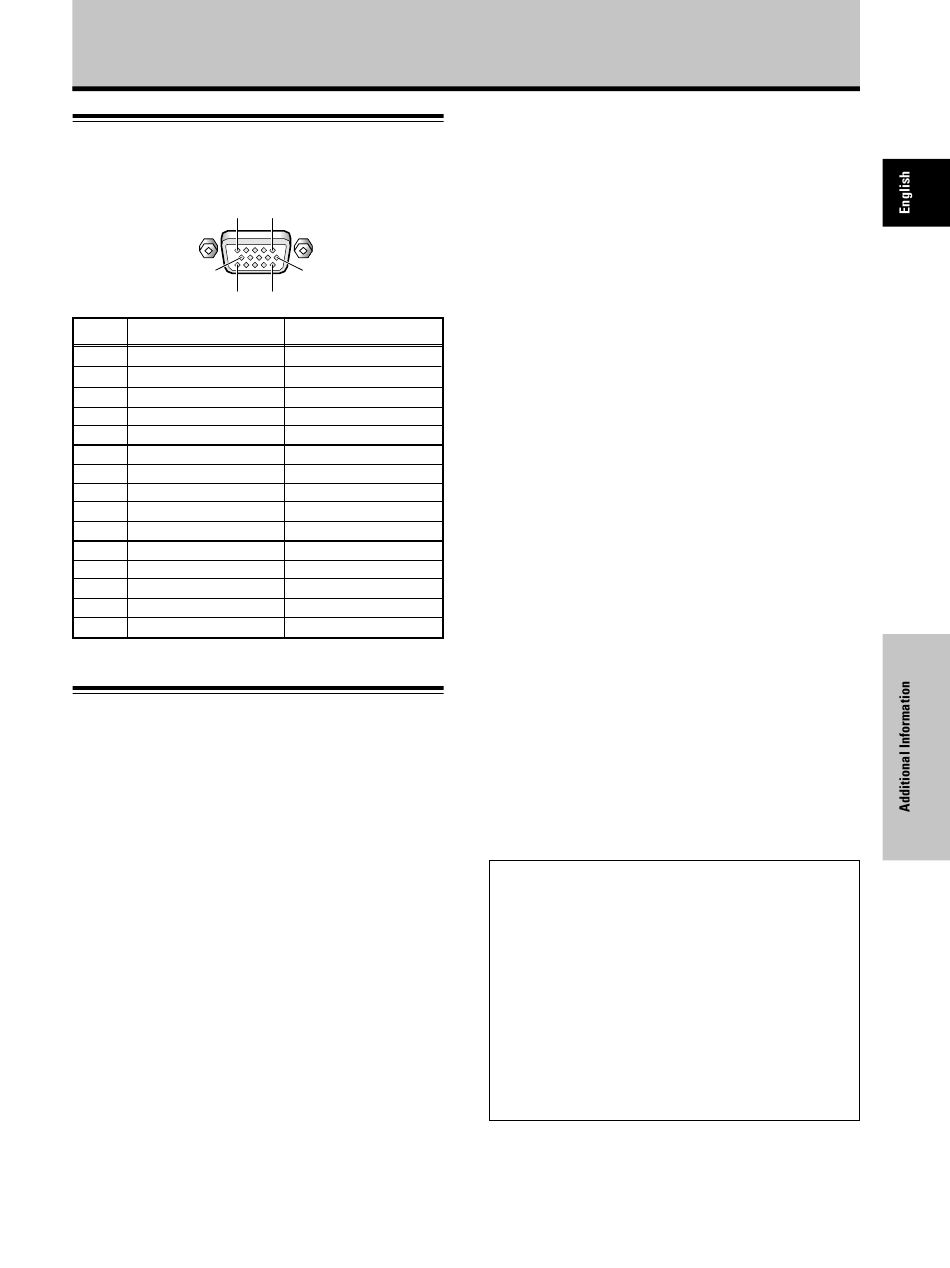

INPUT1 (Mini D-sub 15 pin female connector) pin
allocation.
5
10
15 11
Pin No. Input
1 R
2 G
3 B
4 NC (No connection)
5 GND
6 GND
7 GND
8 GND
9 DDC + 5V
10 GND
11 NC (No connection)
12 DDC SDA
13 HD or H/V SYNC
14 VD
15 DDC SCL

Explanation of Terms

Aspect ratio
The TV screen's width to height ratio is referred to as its aspect
ratio. The aspect ratio on standard TVs is 4:3 and on wide TVs or
High Definition TVs it is 16:9.
S jack (S VIDEO jack)
This jack separates and transmits the video signal as two signals;
the luminance (Y) signal and the color(C) signal. Because of this,
picture reproduction is superior to that obtained at the composite
input/output jacks.
S-video signal
The video signal is composed of two signals; the chroma signal
(color signal) which reproduces color and the luminance signal
which reproduces light and darkness. With standard video
components, these two signals are combined into one and are
handled as a video signal referred to as the "composite signal".
The S-video signal, however, is a signal that handles these two
signals separately. Because they are not combined as in the
composite video signal, the high quality of both signals can be
retained.
Component video signal
General term for video signal format composed of the Y.C
Y.P P and Y.B-Y.R-Y luminance signal + color signal.
B R
The component video signal is sometimes simply called the
"color difference signal".
1
6
Output
+
+
+
+
+
+
+
+
NC (No connection)
+
+
NC (No connection)
+
+
NC (No connection)
C ,
B R
Additional Information
G ON SYNC
This indicates a video signal in the form of a synchronization
signal added to the G (GREEN) signal of the R.G.B signal.
VGA
General term for "Video Graphics Array".
Generally this indicates a 640 dot x 480 line resolution.
WVGA
General term for "Wide Video Graphics Array".
Generally this indicates a 848 dot x 480 line resolution.
XGA
General term for "eXtended Graphics Array".
Generally this indicates a 1024 dot x 768 line resolution.
WXGA
General term for "Wide eXtended Graphics Array".
Generally this indicates a 1280 dot x 768 line resolution.
SXGA
General term for "Super eXtended Graphics Array".
Generally this indicates a 1280 dot x 1024 line resolution.
SXGA+
General term for "Super eXtended Graphics Array plus".
Generally this indicates a 1400 dot x 1050 line resolution.
DVI
General term for "Digital Visual Interface". An interface standard
proposed by the Digital Display Working Group (DDWG) for
digital displays.
HDCP
General term for "High-bandwidth Digital Content Protection".
HDCP is an encryption scheme for digital video signals created
by Intel in order to protect contents. Signals output by HDCP-
compliant DVI output connectors installed on consumer AV
components (DVD players, etc.) are encrypted using HDCP in
order to protect copyrighted contents.
This component uses NEC's Font Avenue as its screen
display font.
Font Avenue is a registered trademark of NEC.
Power Management is a registered trademark of Sun
Microsystems Inc.
TMDS is a registered trademark of Silicon Image Inc.
Apple and Macintosh are registered trademarks of Apple
Computer, Inc.
Microsoft is a registered trademark of Microsoft Corporation.
VGA and XGA are registered trademarks of International
Business Machines Co., Inc.
VESA and DDC are registered trademarks of Video Electronics
Standards Association.
Published by Pioneer Corporation.
Copyright © 2005 Pioneer Corporation.
All rights reserved.
