1.3 RF Installation

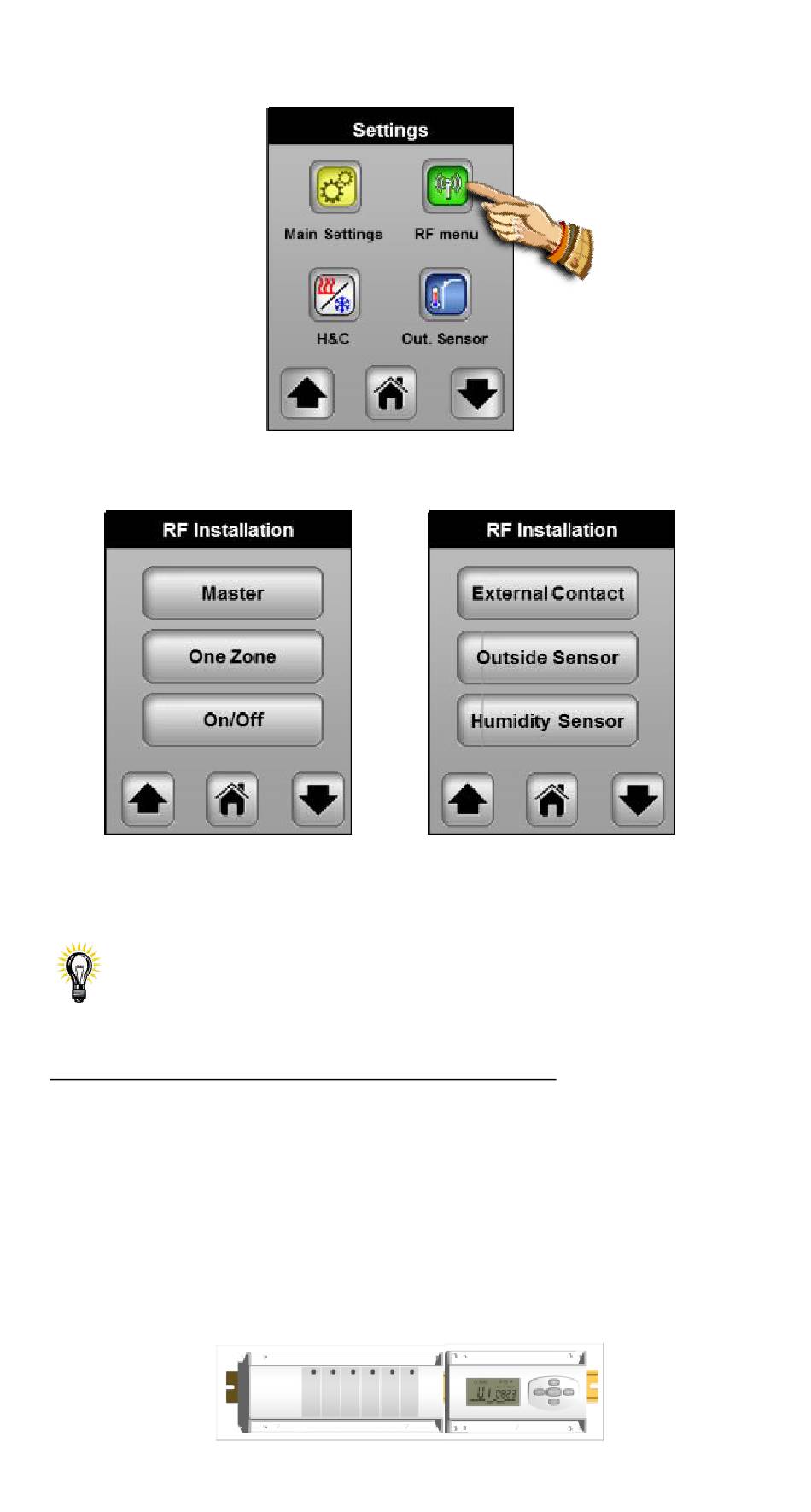

From the main screen go to the settings menu and press on the
"RF menu" button,
st
nd
1
Page
2
page
You will find in the list all types of equipment compatible with your
main zone programmer.
See part (4.9.6) for more details about compatibility and rules.
Routing rules to install a complete installation.
In order, you must install and connect all components of your
installation, MASTER-RF, ACTUATORS, THERMOSTATS...
* The following example is made with an H&C Master, just the
rules to link thermostat with the MASTER-RF will be different with a
BASIC MASTER-RF or One Zone. Please refer to the leaflet of
your receiver for more details about the "RF init" function.
a)
On the Heat & Cool MASTER-RF
8
