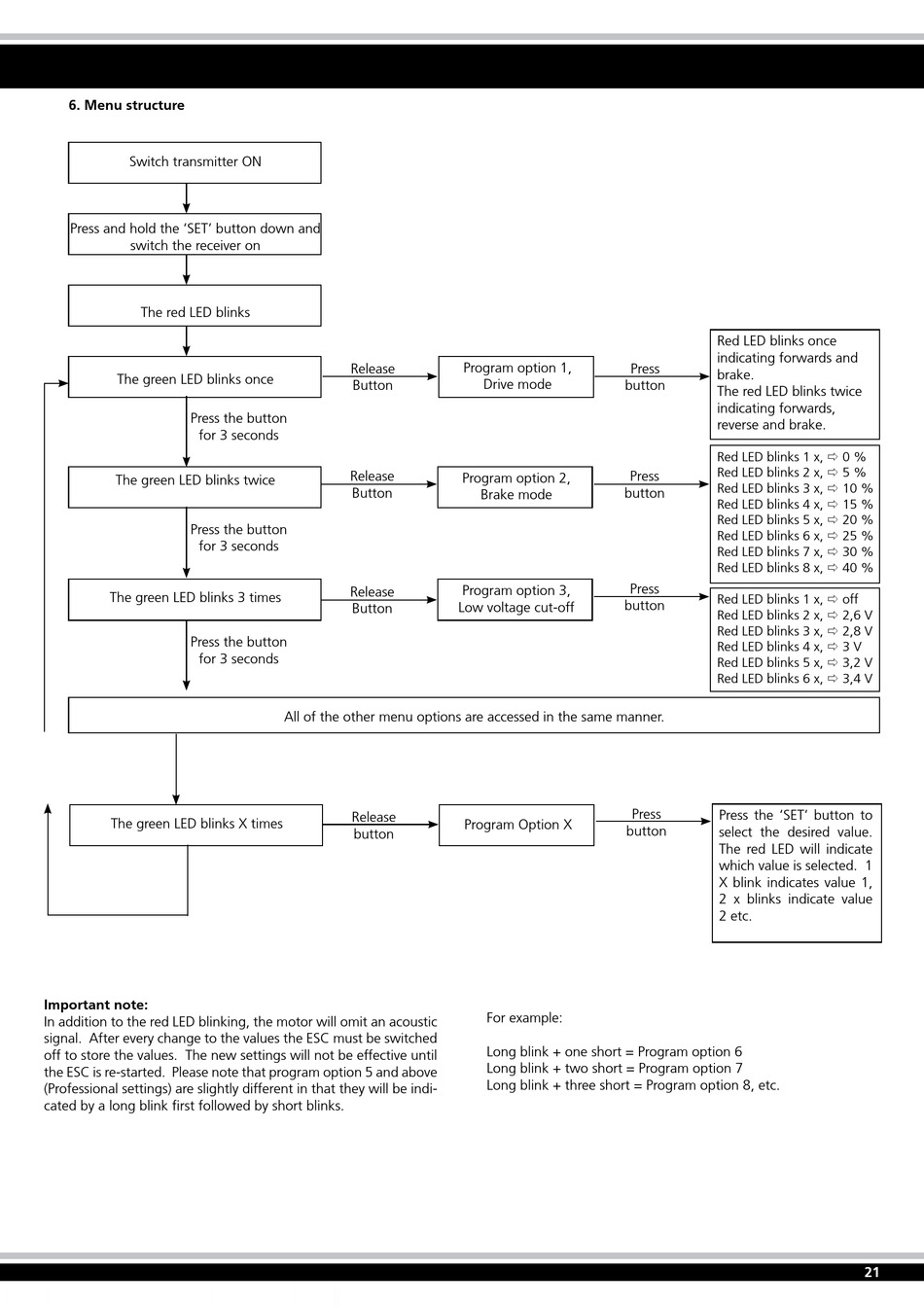

6. Menu structure
Switch transmitter ON
Press and hold the 'SET' button down and
switch the receiver on
The red LED blinks
The green LED blinks once
Press the button
for 3 seconds
The green LED blinks twice
Press the button
for 3 seconds
The green LED blinks 3 times
Press the button
for 3 seconds
The green LED blinks X times
Important note:
In addition to the red LED blinking, the motor will omit an acoustic
signal. After every change to the values the ESC must be switched
off to store the values. The new settings will not be effective until
the ESC is re-started. Please note that program option 5 and above
(Professional settings) are slightly different in that they will be indi-
cated by a long blink first followed by short blinks.
Release
Button
Release
Button
Release
Low voltage cut-off
Button
All of the other menu options are accessed in the same manner.
Release
button
Program option 1,
Press
Drive mode
button
Press
Program option 2,
button
Brake mode
Press
Program option 3,
button
Press
Program Option X
button
For example:
Long blink + one short = Program option 6
Long blink + two short = Program option 7
Long blink + three short = Program option 8, etc.
Red LED blinks once
indicating forwards and
brake.
The red LED blinks twice
indicating forwards,
reverse and brake.
Red LED blinks 1 x, ð 0 %
Red LED blinks 2 x, ð 5 %
Red LED blinks 3 x, ð 10 %
Red LED blinks 4 x, ð 15 %
Red LED blinks 5 x, ð 20 %
Red LED blinks 6 x, ð 25 %
Red LED blinks 7 x, ð 30 %
Red LED blinks 8 x, ð 40 %
Red LED blinks 1 x, ð off
Red LED blinks 2 x, ð 2,6 V
Red LED blinks 3 x, ð 2,8 V
Red LED blinks 4 x, ð 3 V
Red LED blinks 5 x, ð 3,2 V
Red LED blinks 6 x, ð 3,4 V
Press the 'SET' button to
select the desired value.
The red LED will indicate
which value is selected. 1
X blink indicates value 1,
2 x blinks indicate value
2 etc.
