Indoor Unit
Air Intake
Air Discharge
Nozzle
The outdoor unit must be installed in such a way, so as to
prevent short circuit of the hot discharged air or obstruction
to the smooth air flow. Please follow the installation clear-
ance shown in the figure. Select the coolest possible place
where intake air temperature is not greater than the outside
air temperature (maximum 45°C).
Installation clearance
Dimension A
Minimum
Distance (mm) 300
Note: If there is any obstacle higher than 2m, or if there is
any obstruction at the upper part of the unit, please allow
more space than the figure indicated in the above table.
A B
C

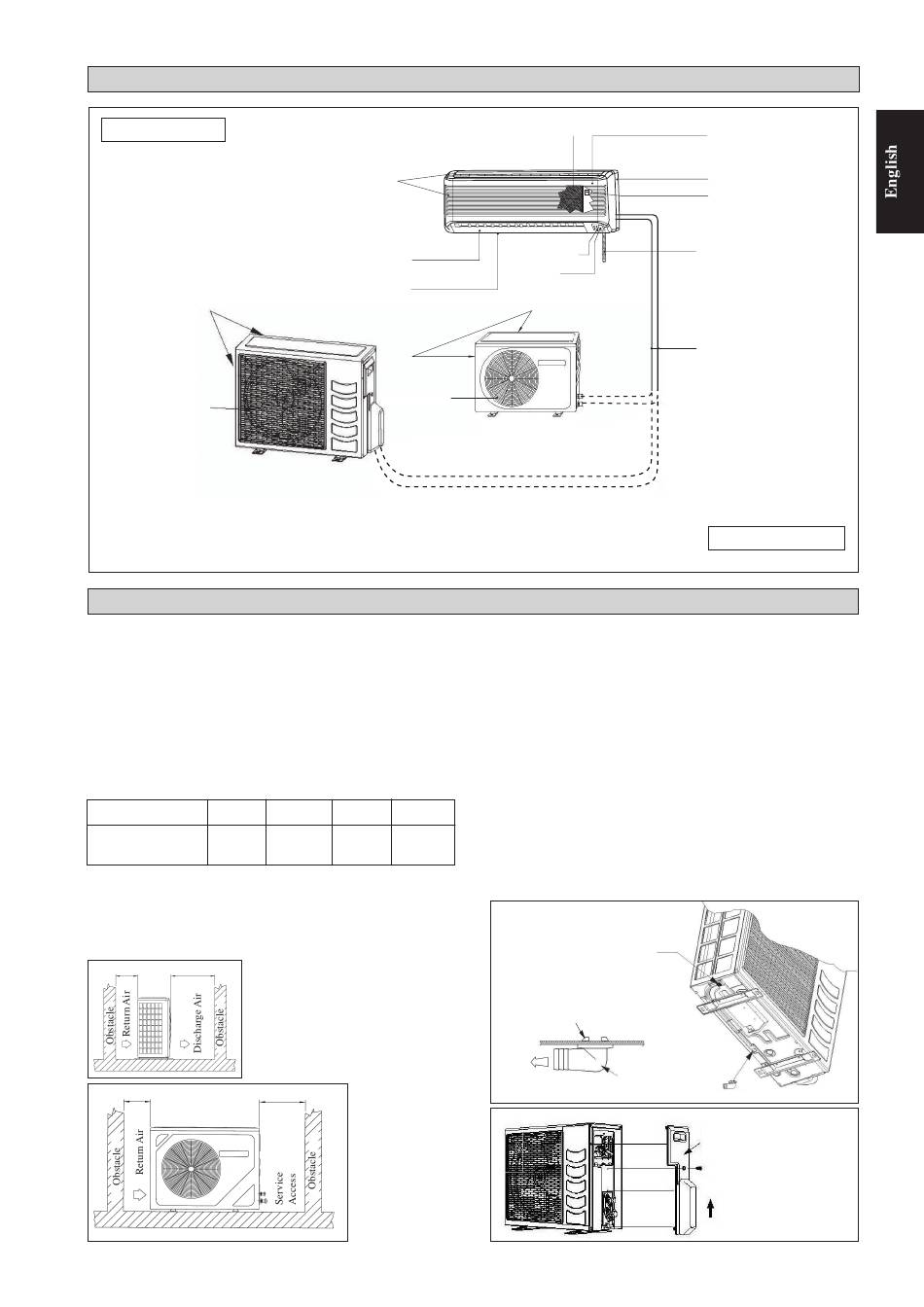

INSTALLATION DIAGRAM

Air Intake
Grille
Air Discharge Louver
Air Discharge Grille
Air
Intake
Air Discharge
Nozzle
SLC

INSTALLATION OF THE OUTDOOR UNIT

B C D
1000 300 500
D
Air Filters
Indicator
Lights
Signal
Receiver
Air Intake
SLB
Condensed Water Disposal of Outdoor Unit (Heat
Pump Unit Only)
• There are 2 holes on the base of Outdoor Unit for
condensed water to flow out. Insert the drain elbow to
one of the holes.
• To install the drain elbow, first insert one portion of the
hook to the base (portion A), then pull the drain elbow
in the direction shown by the arrow while inserting the
other portion to the base. After installation, check to
ensure that the drain elbow clings to base firmly.
• If the unit is installed in a snowy and chilly area, con-
densed water may freeze in the base. In such case, please
remove plug at the bottom of unit to smooth the drain-
age.
PLUG
A
BASE
DRAIN
ELBOW
1-3
Front Frame
Back Housing
ON/OFF Switch
Drain Hose
Refrigerant Piping
Outdoor Unit
DRAIN
ELBOW
Please remove side
plate when connect-
ing the piping and
connecting cord
PUSH & PULL UP
