2 INSTALLATION

2.3 Electrical installation

On the back of the instrument there are eight pins; Four for the screw connector for the log transducer and
four for the depth transducer. The connector is colour coded with green, yellow white and ground sign.
Connect the four wires from the log transducer according to the colours to the connector for LOG, the
blank wire is ground. If a depth transducer is connected use the DEPTH connector for that. Power supply
is either connected to green and ground for DEPTH or LOG.
Yellow
White
Screen

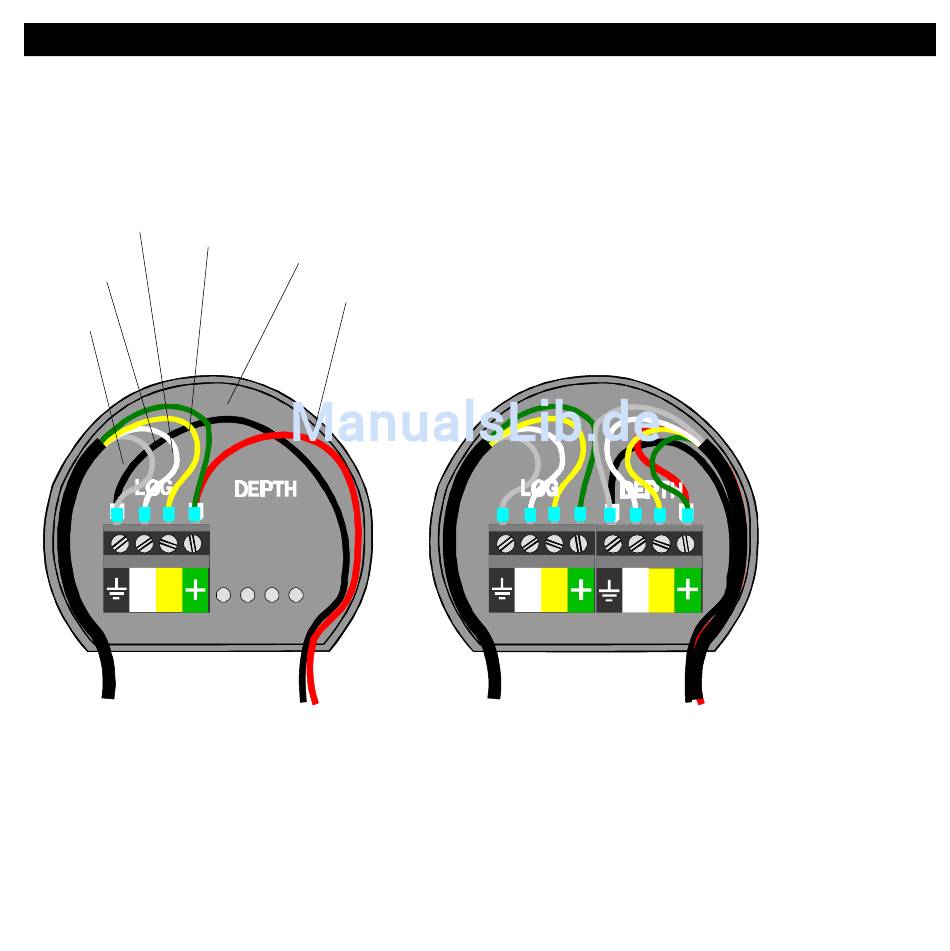

Log transducer and power supply
Connect a 5 Ampere fast fuse between the power battery and instrument on the red plus lead.
Green
Black
Red
Log and depth transducers and
power supply
5
