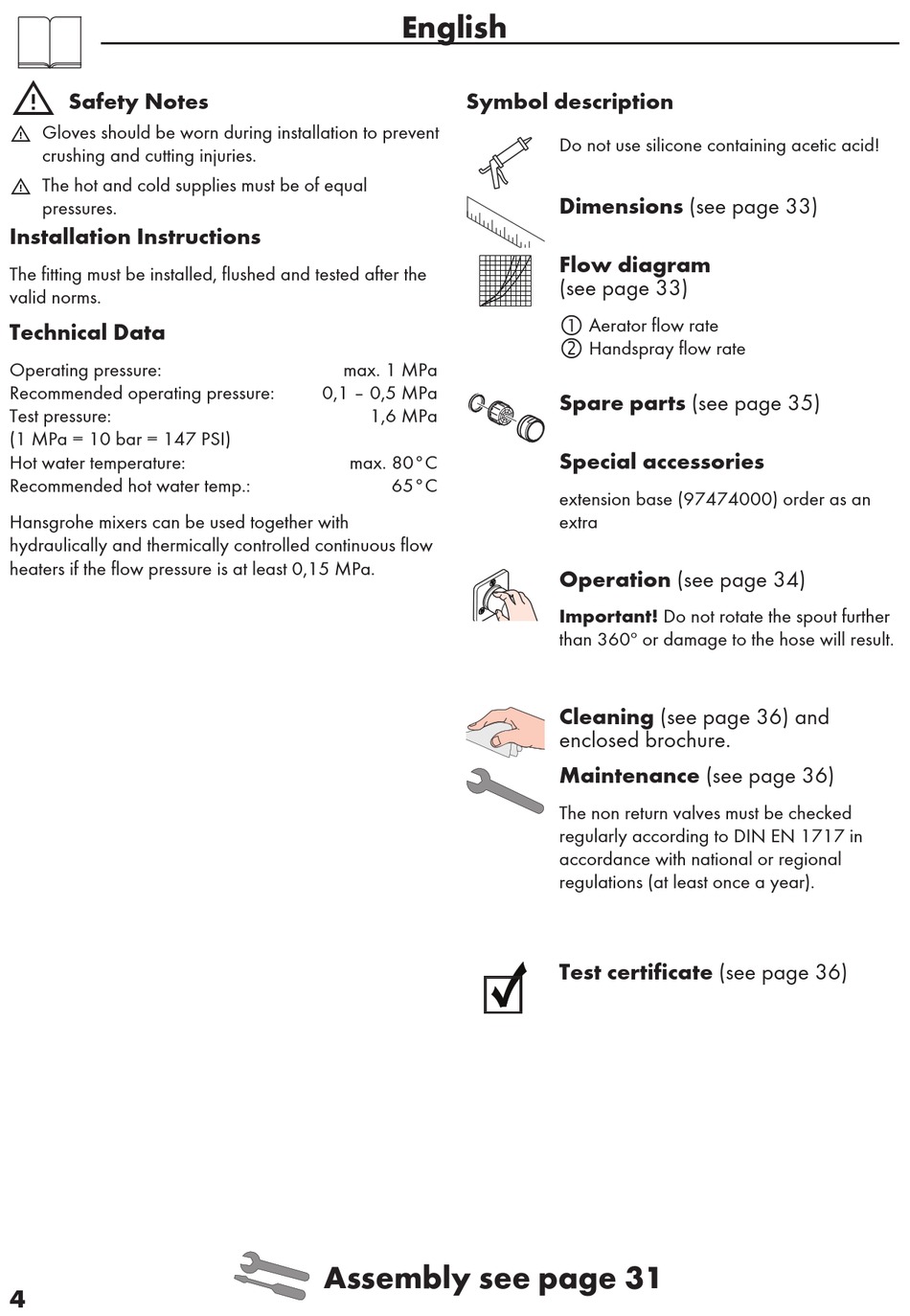

Safety Notes
6 Gloves should be worn during installation to prevent
crushing and cutting injuries.
6 The hot and cold supplies must be of equal
pressures.
Installation Instructions
The fitting must be installed, flushed and tested after the
valid norms.
Technical Data
Operating pressure:
Recommended operating pressure:
Test pressure:
(1 MPa = 10 bar = 147 PSI)
Hot water temperature:
Recommended hot water temp.:
Hansgrohe mixers can be used together with
hydraulically and thermically controlled continuous flow
heaters if the flow pressure is at least 0,15 MPa.
4
English
Symbol description
max. 1 MPa
0,1 – 0,5 MPa
1,6 MPa
max. 80°C
65°C
Assembly see page 31
Do not use silicone containing acetic acid!
Dimensions (see page 33)

Flow diagram

(see page 33)

Aerator flow rate

Handspray flow rate
Spare parts (see page 35)
Special accessories
extension base (97474000) order as an
extra
Operation (see page 34)
Important! Do not rotate the spout further
than 360º or damage to the hose will result.
Cleaning (see page 36) and
enclosed brochure.
Maintenance (see page 36)
The non return valves must be checked
regularly according to DIN EN 1717 in
accordance with national or regional
regulations (at least once a year).
Test certificate (see page 36)
