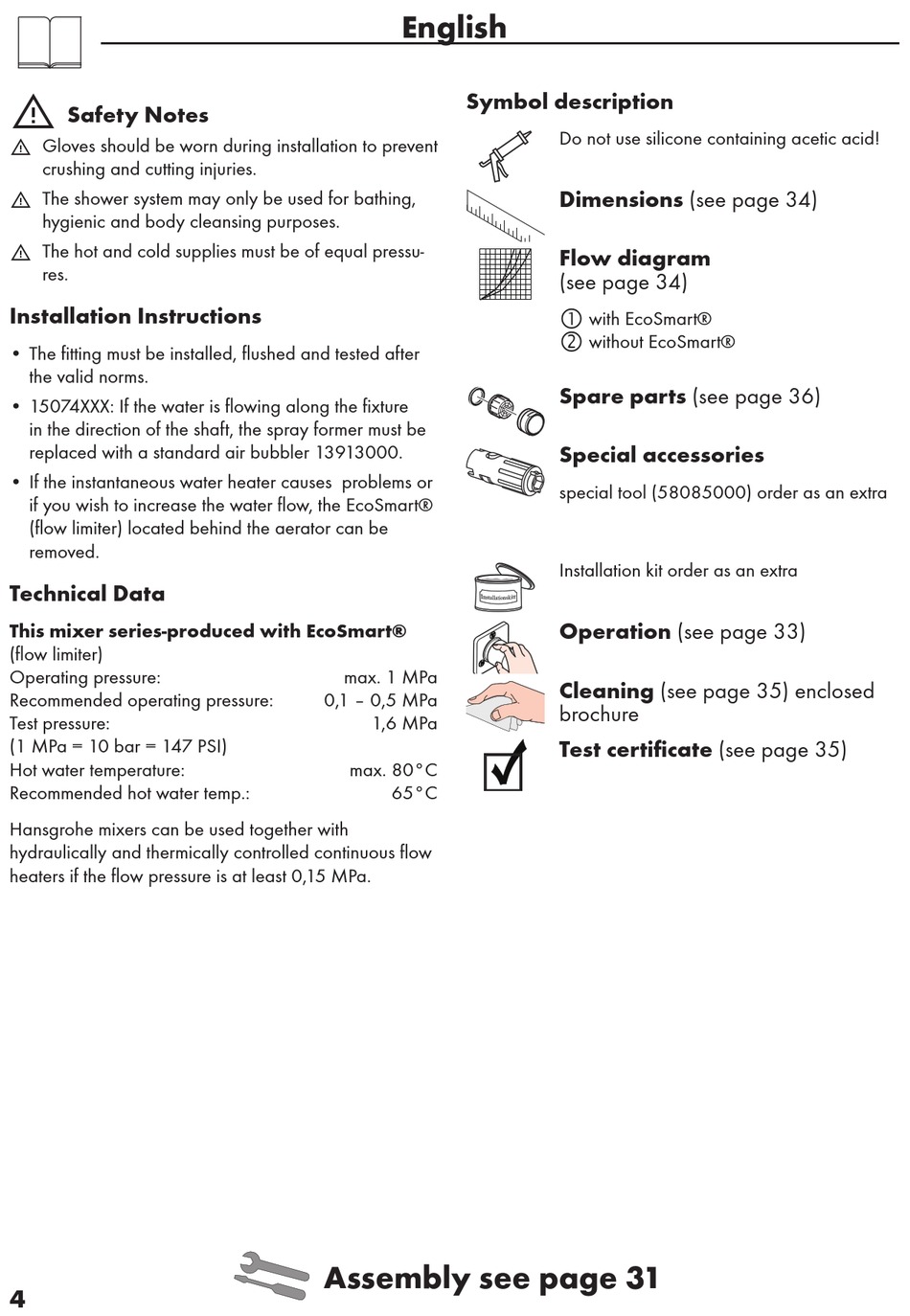

Safety Notes

Gloves should be worn during installation to prevent

crushing and cutting injuries.
The shower system may only be used for bathing,

hygienic and body cleansing purposes.
The hot and cold supplies must be of equal pressu-

res.

Installation Instructions

• The fitting must be installed, flushed and tested after
the valid norms.
• 15074XXX: If the water is flowing along the fixture
in the direction of the shaft, the spray former must be
replaced with a standard air bubbler 13913000.
• If the instantaneous water heater causes problems or
if you wish to increase the water flow, the EcoSmart®
(flow limiter) located behind the aerator can be
removed.

Technical Data

This mixer series-produced with EcoSmart®
(flow limiter)
Operating pressure:
Recommended operating pressure:
Test pressure:
(1 MPa = 10 bar = 147 PSI)
Hot water temperature:
Recommended hot water temp.:
Hansgrohe mixers can be used together with
hydraulically and thermically controlled continuous flow
heaters if the flow pressure is at least 0,15 MPa.

English

Symbol description

max. 1 MPa
0,1 – 0,5 MPa
1,6 MPa
max. 80°C
65°C
Assembly see page 31
Do not use silicone containing acetic acid!
Dimensions (see page 34)

Flow diagram

(see page 34)

with EcoSmart®

without EcoSmart®
Spare parts (see page 36)
Special accessories
special tool (58085000) order as an extra
Installation kit order as an extra
Operation (see page 33)
Cleaning (see page 35) enclosed
brochure
Test certificate (see page 35)
