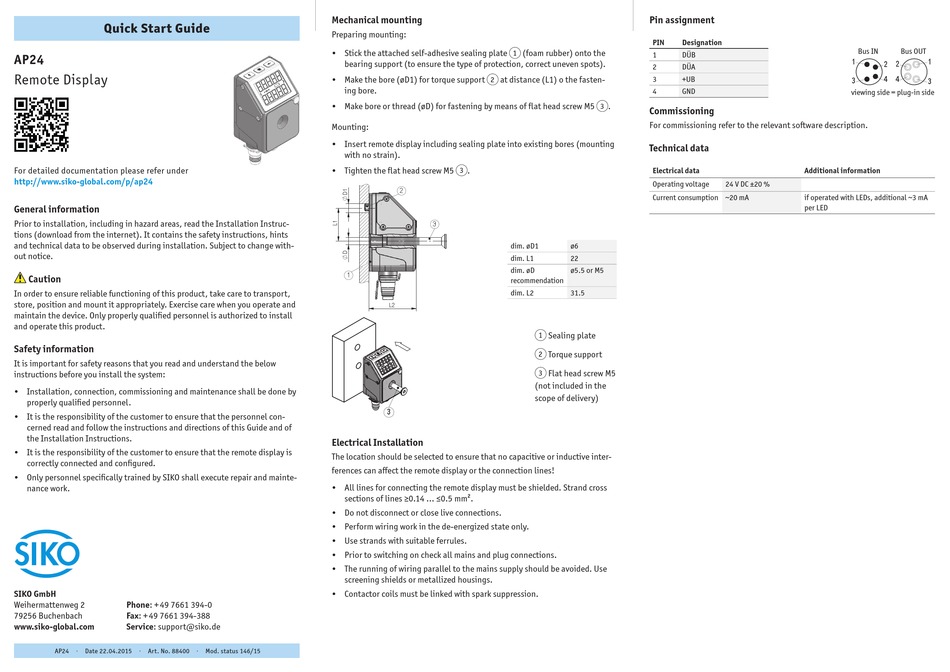

Quick Start Guide
AP24
Remote Display
For detailed documentation please refer under
http://www.siko-global.com/p/ap24
General information
Prior to installation, including in hazard areas, read the Installation Instruc-
tions (download from the internet). It contains the safety instructions, hints
and technical data to be observed during installation. Subject to change with-
out notice.
Caution
In order to ensure reliable functioning of this product, take care to transport,
store, position and mount it appropriately. Exercise care when you operate and
maintain the device. Only properly qualified personnel is authorized to install
and operate this product.
Safety information
It is important for safety reasons that you read and understand the below
instructions before you install the system:
• Installation, connection, commissioning and maintenance shall be done by
properly qualified personnel.
• It is the responsibility of the customer to ensure that the personnel con-
cerned read and follow the instructions and directions of this Guide and of
the Installation Instructions.
• It is the responsibility of the customer to ensure that the remote display is
correctly connected and configured.
• Only personnel specifically trained by SIKO shall execute repair and mainte-
nance work.
SIKO GmbH
Weihermattenweg 2 Phone: + 49 7661 394-0
79256 Buchenbach Fax: + 49 7661 394-388
www.siko-global.com Service: support@siko.de
AP24 · Date 22.04.2015 · Art. No. 88400 · Mod. status 146/15
Mechanical mounting
Preparing mounting:
• Stick the attached self-adhesive sealing plate
bearing support (to ensure the type of protection, correct uneven spots).
• Make the bore (øD1) for torque support 2 at distance (L1) o the fasten-
ing bore.
• Make bore or thread (øD) for fastening by means of flat head screw M5
Mounting:
• Insert remote display including sealing plate into existing bores (mounting
with no strain).
• Tighten the flat head screw M5 .
3


dim. øD1
dim. L1
dim. øD

recommendation
dim. L2


Electrical Installation
The location should be selected to ensure that no capacitive or inductive inter-
ferences can affect the remote display or the connection lines!
• All lines for connecting the remote display must be shielded. Strand cross
sections of lines ≥0.14 ... ≤0.5 mm².
• Do not disconnect or close live connections.
• Perform wiring work in the de-energized state only.
• Use strands with suitable ferrules.
• Prior to switching on check all mains and plug connections.
• The running of wiring parallel to the mains supply should be avoided. Use
screening shields or metallized housings.
• Contactor coils must be linked with spark suppression.
Pin assignment
PIN Designation
(foam rubber) onto the
1
1 DÜB
2 DÜA
3 +UB
4 GND
.
3
Commissioning
For commissioning refer to the relevant software description.
Technical data
Electrical data
Operating voltage
Current consumption ~20 mA
ø6
22
ø5.5 or M5
31.5
1 Sealing plate
Torque support
2
Flat head screw M5
3
(not included in the
scope of delivery)
Bus IN Bus OUT

 
 

viewing side = plug-in side
Additional information
24 V DC ±20 %
if operated with LEDs, additional ~3 mA
per LED


