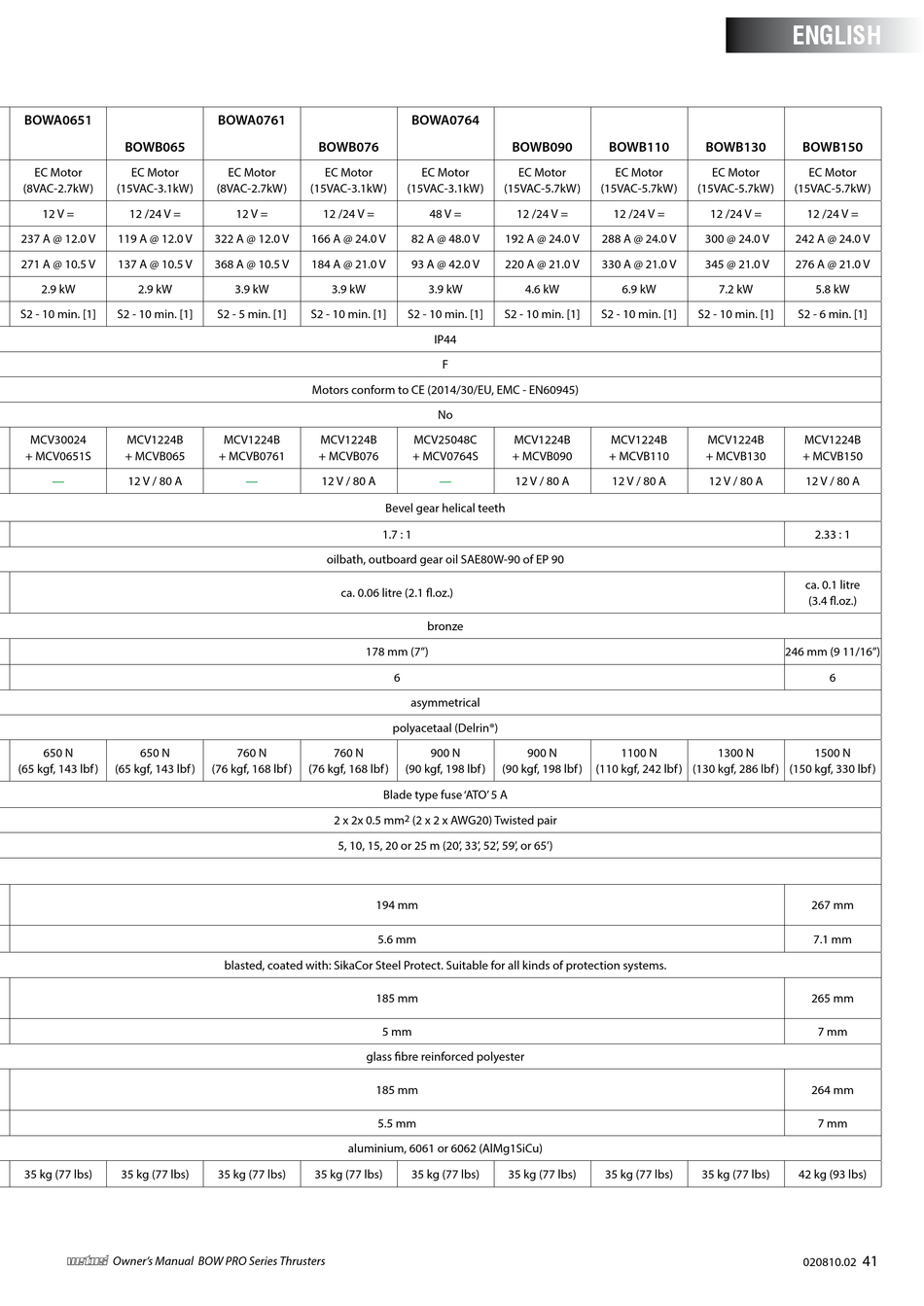

Vetus BOW PRO A BOWA0301 Handbuch Für Den Eigentümer Seite 41

BOWA0651
BOWB065
EC Motor EC Motor
(8VAC-2.7kW) (15VAC-3.1kW)
12 V = 12 /24 V =
237 A @ 12.0 V 119 A @ 12.0 V
271 A @ 10.5 V 137 A @ 10.5 V
2.9 kW 2.9 kW
S2 - 10 min. [1] S2 - 10 min. [1]
MCV30024 MCV1224B
+ MCV0651S + MCVB065
— 12 V / 80 A
650 N 650 N
(65 kgf, 143 lbf ) (65 kgf, 143 lbf )
35 kg (77 lbs) 35 kg (77 lbs)
vetus® Owner's Manual BOW PRO Series Thrusters
BOWA0761
BOWB076
EC Motor EC Motor
(8VAC-2.7kW) (15VAC-3.1kW)
12 V = 12 /24 V =
322 A @ 12.0 V 166 A @ 24.0 V
368 A @ 10.5 V 184 A @ 21.0 V
3.9 kW 3.9 kW
S2 - 5 min. [1] S2 - 10 min. [1]
Motors conform to CE (2014/30/EU, EMC - EN60945)
MCV1224B MCV1224B
+ MCVB0761 + MCVB076
— 12 V / 80 A
Bevel gear helical teeth
1.7 : 1
oilbath, outboard gear oil SAE80W-90 of EP 90
ca. 0.06 litre (2.1 fl.oz.)
178 mm (7")
760 N 760 N
(76 kgf, 168 lbf ) (76 kgf, 168 lbf )
Blade type fuse 'ATO' 5 A
2 x 2x 0.5 mm
5, 10, 15, 20 or 25 m (20' , 33' , 52' , 59' , or 65')
194 mm
5.6 mm
blasted, coated with: SikaCor Steel Protect. Suitable for all kinds of protection systems.
185 mm
5 mm
glass fibre reinforced polyester
185 mm
5.5 mm
aluminium, 6061 or 6062 (AlMg1SiCu)
35 kg (77 lbs) 35 kg (77 lbs)
BOWA0764
BOWB090
EC Motor EC Motor
(15VAC-3.1kW) (15VAC-5.7kW)
48 V = 12 /24 V =
82 A @ 48.0 V 192 A @ 24.0 V
93 A @ 42.0 V 220 A @ 21.0 V
3.9 kW 4.6 kW
S2 - 10 min. [1] S2 - 10 min. [1]
IP44
F
No
MCV25048C MCV1224B
+ MCV0764S + MCVB090
— 12 V / 80 A
bronze
6
asymmetrical
polyacetaal (Delrin®)
900 N 900 N
(90 kgf, 198 lbf ) (90 kgf, 198 lbf )
2 (2 x 2 x AWG20) Twisted pair
35 kg (77 lbs) 35 kg (77 lbs)
BOWB110 BOWB130
EC Motor EC Motor
(15VAC-5.7kW) (15VAC-5.7kW)
12 /24 V = 12 /24 V =
288 A @ 24.0 V 300 @ 24.0 V
330 A @ 21.0 V 345 @ 21.0 V
6.9 kW 7.2 kW
S2 - 10 min. [1] S2 - 10 min. [1]
MCV1224B MCV1224B
+ MCVB110 + MCVB130
12 V / 80 A 12 V / 80 A
1100 N 1300 N
(110 kgf, 242 lbf ) (130 kgf, 286 lbf )
35 kg (77 lbs) 35 kg (77 lbs)
ENGLISH
BOWB150
EC Motor
(15VAC-5.7kW)
12 /24 V =
242 A @ 24.0 V
276 A @ 21.0 V
5.8 kW
S2 - 6 min. [1]
MCV1224B
+ MCVB150
12 V / 80 A
2.33 : 1
ca. 0.1 litre
(3.4 fl.oz.)
246 mm (9 11/16")
6
1500 N
(150 kgf, 330 lbf )
267 mm
7.1 mm
265 mm
7 mm
264 mm
7 mm
42 kg (93 lbs)
