Bedienung/Operation

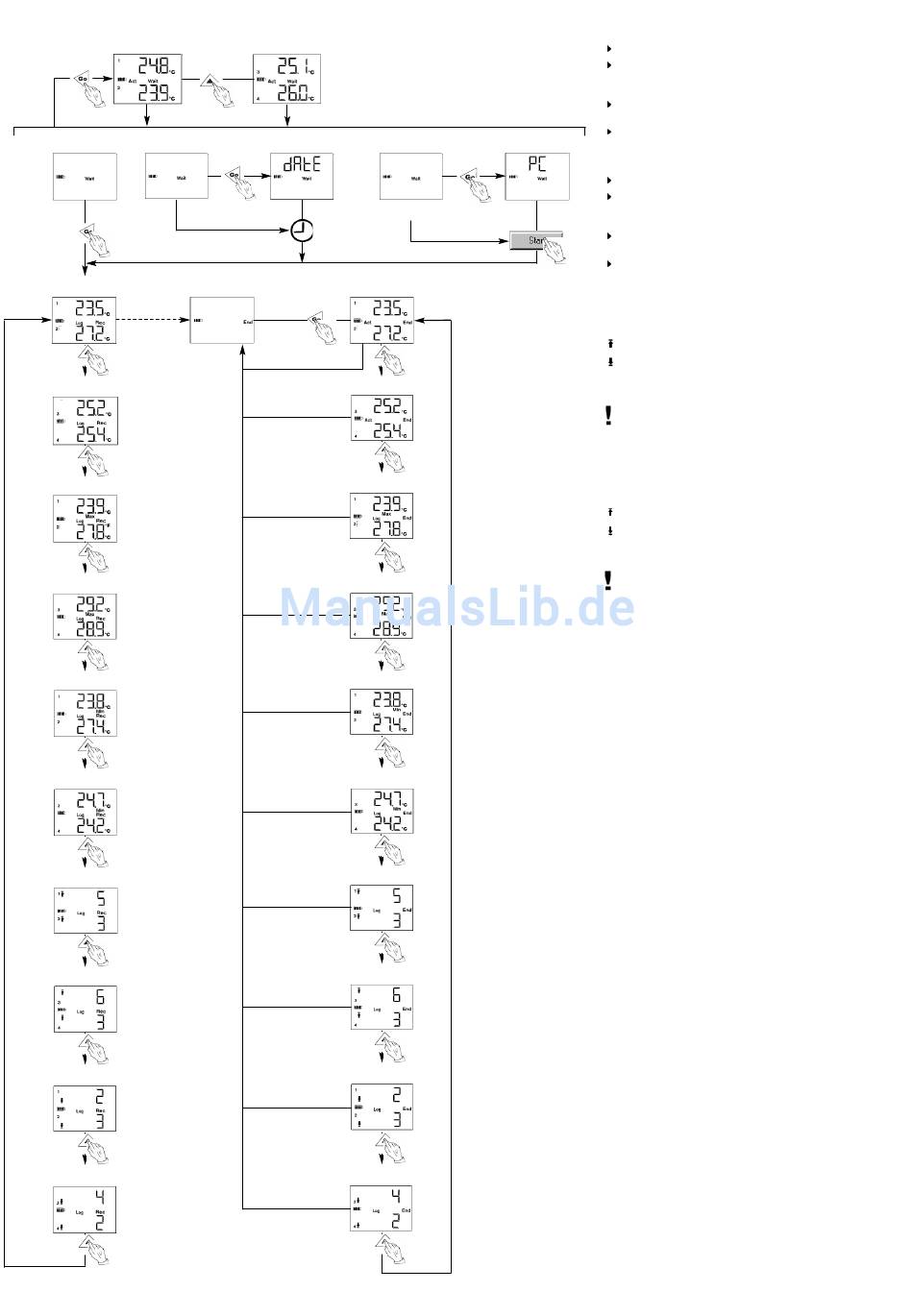

Zwischenmesswert Kanal 1 und 2
Intermediate reading Channel 1 and 2
Approx. 60s
ca. 60s
Startkriterium Tastenstart
Start criterion: Key start
>3 s
Gespeicherter Messwert Kanal 1 und 2
Saved reading Channel 1 and 2
Measuring program finished*
Gespeicherter Messwert Kanal 3 und 4
Saved reading Channel 3 and 4
Höchster Messwert Kanal 1 und 2
Highest reading Channel 1 and 2
Höchster Messwert Kanal 3 und 4
Highest reading Channel 3 and 4
Niedrigster Messwert Kanal 1 und 2
Lowest reading Channel 1 and 2
Niedrigster Messwert Kanal 3 und 4
Lowest reading Channel 3and 4
Anzahl Überschreitungen Kanal 1 und 2
No. times above limit Channel 1 and 2
Anzahl Überschreitungen Kanal 3 und 4
No. times above limit Channel 3 and 4
Anzahl Unterschreitungen Kanal 1 und 2
No. times under limit Channel 1 and 2
Anzahl Unterschreitungen Kanal 3 und 4
No. times under limit Channel 3 and 4
Zwischenmesswert Kanal 3 und 4
Intermediate reading Channel 3 and 4
Eine Zwischenmessung kann
durch kurzes Drücken der Taste
GO immer durchgeführt werden,
unabhängig von Anzeige und
Betriebszustand (Werte werden
nicht gespeichert).
Approx. 60s
ca. 60s
Startkriterium Datum/Uhrzeit
Start criterion: Date/Time
>3 s
Messprogramm beendet*
Zwischenmesswert Kanal 1 und 2
Intermediate reading Channel 1 and 2
Approx. 60s
ca. 60s
Zwischenmesswert Kanal 3 und 4
Intermediate reading Channel 3 and 4
Höchster Messwert Kanal 1 und 2
Highest reading Channel 1 and 2
Höchster Messwert Kanal 3 und 4
Highest reading Channel 3 and 4
Niedrigster Messwert Kanal 1 und 2
Lowest reading Channel 1 and 2
Niedrigster Messwert Kanal 3 und 4
Lowest reading Channel 3 and 4
Anzahl Überschreitungen Kanal 1 und 2
No. times above limit Channel 1 and 2
Anzahl Überschreitungen Kanal 3 und 4
No. times above limit Channel 3 and 4
Anzahl Unterschreitungen Kanal 1 und 2
No. times under limit Channel 1 and 2
Anzahl Unterschreitungen Kanal 3 und 4
No. times under limit Channel 3 and 4
Fühler anschließen
An intermediate measurement
can always be carried out by
pressing GO, independent of
display and mode (values are
not saved).
Startkriterium PC-Start
Start criterion: PC Start
>3 s
Connecting probes
Hinweise
* Wenn Stoppkriterium erreicht: bis Speicher voll oder Anzahl Werte (je
Information
* If stop criterion is met: until memory is full or Number of logs

LED- und Tasten- Funktionen

In allen Betriebszuständen:
Die Alarmanzeige blinkt alle 15 Sek. dreimal, wenn die verbleibende
Batteriekapazität weniger als 10% beträgt (auch wenn die Alarmanzeige
ausgeschaltet ist**).
Betriebszustand W W a a i i t t und Startkriterium T T a a s s t t e e n n s s t t a a r r t t programmiert:
Die Betriebsanzeige blinkt fünfmal, wenn die Taste GO ca. 3 Sek. lang
gedrückt wird (auch wenn die Betriebsanzeige ausgeschaltet ist**).
Damit wird bestätigt, dass das Messprogramm gestartet wurde und der
Datenlogger sich nun im Betriebszustand Rec befindet.
Betriebszustand R R e e c c :
Die Alarmanzeige blinkt alle 15 Sek. einmal, wenn Alarmwerte über- bzw.
unterschritten wurden (nur wenn die Alarmanzeige eingeschaltet ist**).
Die Betriebsanzeige blinkt alle 15 Sek. einmal (nur wenn die Betriebs-
anzeige eingeschaltet ist**).
Dadurch wird bestätigt, dass das Messprogramm läuft.
Die Betriebsanzeige blinkt fünfmal, wenn die Taste GO ca. 3 Sek. lang
gedrückt wird (auch wenn die Betriebsanzeige ausgeschaltet ist**).
Damit wird bestätigt, dass eine Zeitmarke*** gesetzt wurde.
** Das Ein-/Ausschalten der Alarm-/Betriebsanzeige erfolgt über die Software
*** nähere Informationen zur Zeitmarke finden Sie in der Bedienungsanleitung
LED and button functions
In all modes:
The alarm led (red LED) flashes 3 times every 15 seconds if the
remaining battery capacity is less than 10% (even if the alarm led is
deactivated **).
W W a a i i t t mode and K K e e y y s s t t a a r r t t start criterion programmed:
The status led (green LED) flashes five times if the GO button is kept
pressed for approx. 3 seconds (even if the Status led is deactivated **).
It is confirmation that the measuring program was started and that the
data logger is now in the Record mode.
R R e e c c mode:
The Alarm led flashes once every 15 s if alarm values have been
exceeded (only if the Alarm led is activated **).
The Status led flashes once every 15 s (only if the Status led is
activated **).
It is confirmation that the measuring program is running.
The Status led flashes five times if the GO button is kept pressed for
approx. 3 s (even if the Status led is deactivated **).
It is confirmation that a time mark*** has been set.
** The Status/Alarm leds are activated/deactivated via testo ComSoft.
*** Please refer to the Instruction Manual for an explanation of time mark.
