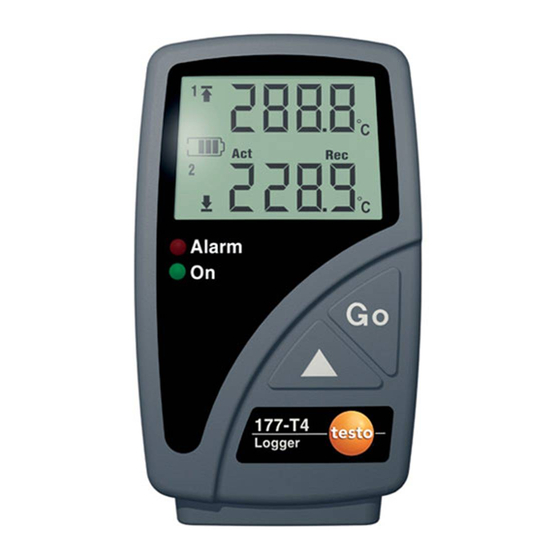

testo 177-T4
Kurz-Bedienungsanleitung
0973.1774/T/wh/PC_qxd/10.02

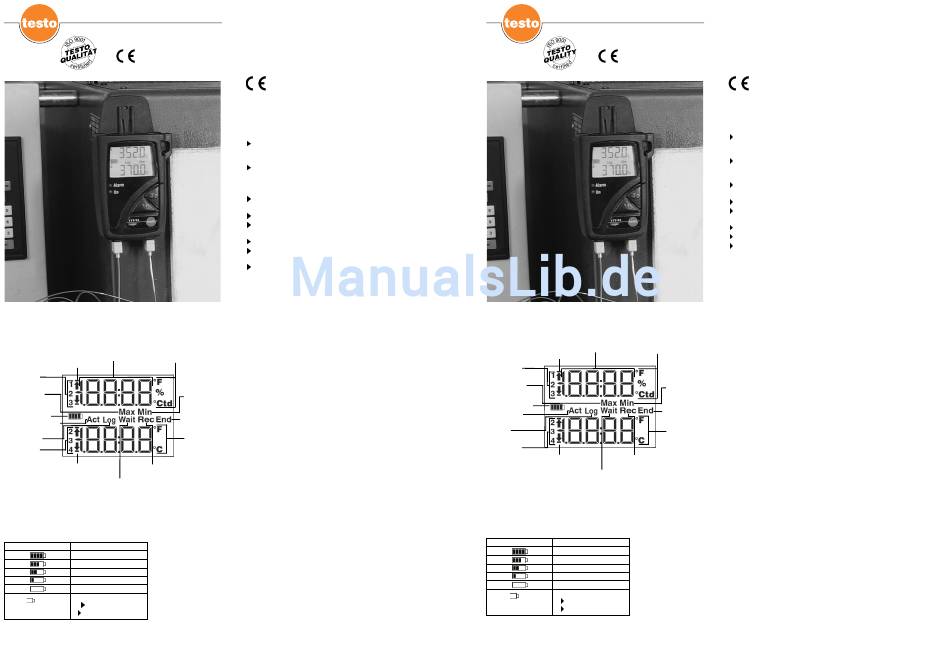

Display
Oberer
Messwerte
Einheiten
Alarmwert
Messkanäle
höchster
gespeicherter
Messwert
Batteriekapazität
Messprogramm
beendet
Zwischenmesswert
1
gespeicherter
Messwert
Messkanäle
Unterer
Messprogramm läuft
Alarmwert
Warten auf Start
des Messprogramms
1
Zwischenmesswerte werden im Display angezeigt, jedoch nicht gespeichert
Batteriekapazität
Symbol
Kapazität
75 bis 100%
50 bis 75%
25 bis 50%
10 bis 25%
<10%
Batterie leer
OFF
Daten auslesen
Batterie wechseln
Bitte beachten!
Diese Kurz-Bedienungsanleitung dient zur zusätzlichen Orientierung
vor Ort. Zur Inbetriebnahme und Programmierung des Datenloggers
lesen Sie bitte die Bedienungsanleitung die dem Software Set bzw.
dem Interface beiliegt.
Normen
Dieses Produkt erfüllt laut Konformitätsbescheinigung
die Richtlinien gemäß 89/336/EWG.
Sicherheitshinweise
Lesen Sie bitte die nachfolgenden Sicherheitshinweise aufmerksam
durch:
Messen Sie mit dem Gerät und externen Fühlern niemals an
spanungsführenden Teilen, wenn das Gerät nicht ausdrücklich für die
Strom-/ und Spannungsmessung freigegeben ist!
Prüfen Sie vor jeder Messung, ob Anschlüsse durch einen Blindstop-
fen verschlossen oder ein passender Fühler gesteckt ist. Die in den
technischen Daten angegebene Schutzklasse wird sonst nicht
erreicht.
Betreiben Sie das Gerät nur innerhalb der in den technischen Daten
vorgegebenen Parameter.
Behandeln Sie das Gerät nur sach- und bestimmungsgemäß.
Öffnen Sie das Gerät nur, wenn dies zu Wartungszwecken ausdrück-
lich in der Bedienungsanleitung beschrieben ist.
Wenden Sie niemals Gewalt an!
Geben sie leere Batterien an den dafür vorgesehenen Sammelstellen
ab.
Senden Sie das Gerät nach Ende der Nutzungszeit direkt an uns. Wir
sorgen für eine umweltschonende Entsorgung.
Garantie
24 Monate
Technische Daten
Messgrößen ................................................................Temperatur (°C/°F)
Messwertaufnehmer ..................................Thermoelement Typ K und T
Anzahl der Messkanäle ............................................................4x extern
Messbereich Typ K ......................................................-195 bis +1000 °C
Messbereich Typ T ........................................................-200 bis +400 °C
niedrigster
Genauigkeit ......................................................±0,3 °C (-100 bis +70 °C)
gespeicherter
............................................................±0,5% v. Mw. (+70,1 bis +1000 °C)
Messwert
..............................................................±1,5% v. Mw. (-200 bis -100,1 °C)
......................................................................................................±1 Digit
Auflösung........................................................................................0,1 °C
Einheiten
Messtakt ........................................1 oder 2 Kanäle aktiv: 2 sec bis 24 h
........................................................3 oder 4 Kanäle aktiv: 3 sec bis 24 h
..............................................................................................(frei wählbar)
Lagertemperatur................................................................-35 bis +70 °C
Betriebstemperatur ..............................................................0 bis +70 °C
Display ..................................................................................LCD, 2-zeilig
Betriebstemperatur Display ................................................0 bis +65 °C
Speicherkapazität ......................................................48.000 Messwerte
Gehäuse ....................................................................................ABS/TPE
Schutzart ..........................................................................................IP 43
Abmessungen in mm (LxBxH) ........................................103 x 64 x 33
Gewicht..............................................................................................129g
Batterie ..............................................................................Lithium (1 AA)
Batteriestandzeit ................................typisch: 5 Jahre
..................................................................Betriebstemp.: -10 bis +50°C,Display: An,
............................................................................Betriebsanzeige (grüne LED): Aus)
Display
Top alarm
Readings
value
Channels
Highest saved
reading
Battery capacity
Intermediate
reading
1
Saved
reading
Channels
Bottom
alarm value
1
Intermediate readings are shown in the display but are not saved.
Battery capacity
Symbol
Capacity
75 to 100%
50 to 75%
(Messrate: 15 Min.,
25 to 50%
10 to 25%
<10%
Battery empty
OFF
Reading out data
Changing battery
testo 177-T4
Please note the following
This short instruction manual is intended as an additional aid on site. If
Short Instruction Manual
you wish to operate or program the data logger, please read the
instruction manual included with the software set and the interface.
Standards
The conformity certificate confirms that this product meets the
guidelines in accordance with 89/336/EEC.
Safety instructions
Please read through the following safety instructions carefully:
Never use the instrument and external probes to measure on or near
live parts if the instrument is not expressly approved for current and
voltage measurement
Prior to every measurement, check if connections have been closed
off by a blind plug or if a suitable probe is attached. Otherwise, the
protection class specified in the Technical data cannot be guaranteed.
The instrument should only be operated within the parameters
specified in the Technical data.
Please handle the logger with care.
The instrument should only be opened if expressly described in the
instruction manual for maintenance purposes.
Force should never be applied.
Please dispose of spent batteries responsibly.
You can return the instrument directly to us at the end of its service
life. We will dispose of it responsibly..
Warranty
2 years
Technical data
Parameter..................................................................Temperature (°C/°F)
Units
Sensor..............................................................T/C-Type K or T (external)
Number of measuring channels............................................4x external
Measuring range Type K ..............................................-195 to +1000 °C
Measuring range Type T ................................................-200 to +400 °C
Lowest saved
reading
Accuracy ............................................................±0.3 °C (-100 to +70 °C)
......................................................±0.5% of reading (+70,1 to +1000 °C)
Measuring
........................................................±1,5% of reading (-200 to -100,1 °C)
program
finished
........................................................................................................±1 digit
Resolution ......................................................................................0.1 °C
Units
Measuring rate ................................1 or 2 channels activated: 2s to 24h
..........................................................3 or 4 channels activated: 3s to 24h
......................................................................................(freely selectable)
Measuring program
Storage temperature ..........................................................-35 to +70 °C
is running
Operating temperature ..........................................................0 to +70 °C
Waiting on measuring
program to start
Display ..................................................................................LCD, 2 lines
Operating temperature/Display ............................................0 to +65 °C
Memory capacity ............................................................48,000 readings
Housing ......................................................................................ABS/TPE
Protection class ..............................................................................IP 43
Dimensions in mm (lxwxh) ..............................................103 x 64 x 33
Weight................................................................................................129g
Battery ................................................................................Lithium (1 AA)
Battery life ....................................Typical: 5 years
....(Operating temperature: -10 to +50°C,Display: On, Status led (green LED): Off)
(Measuring rate:15 min.,
