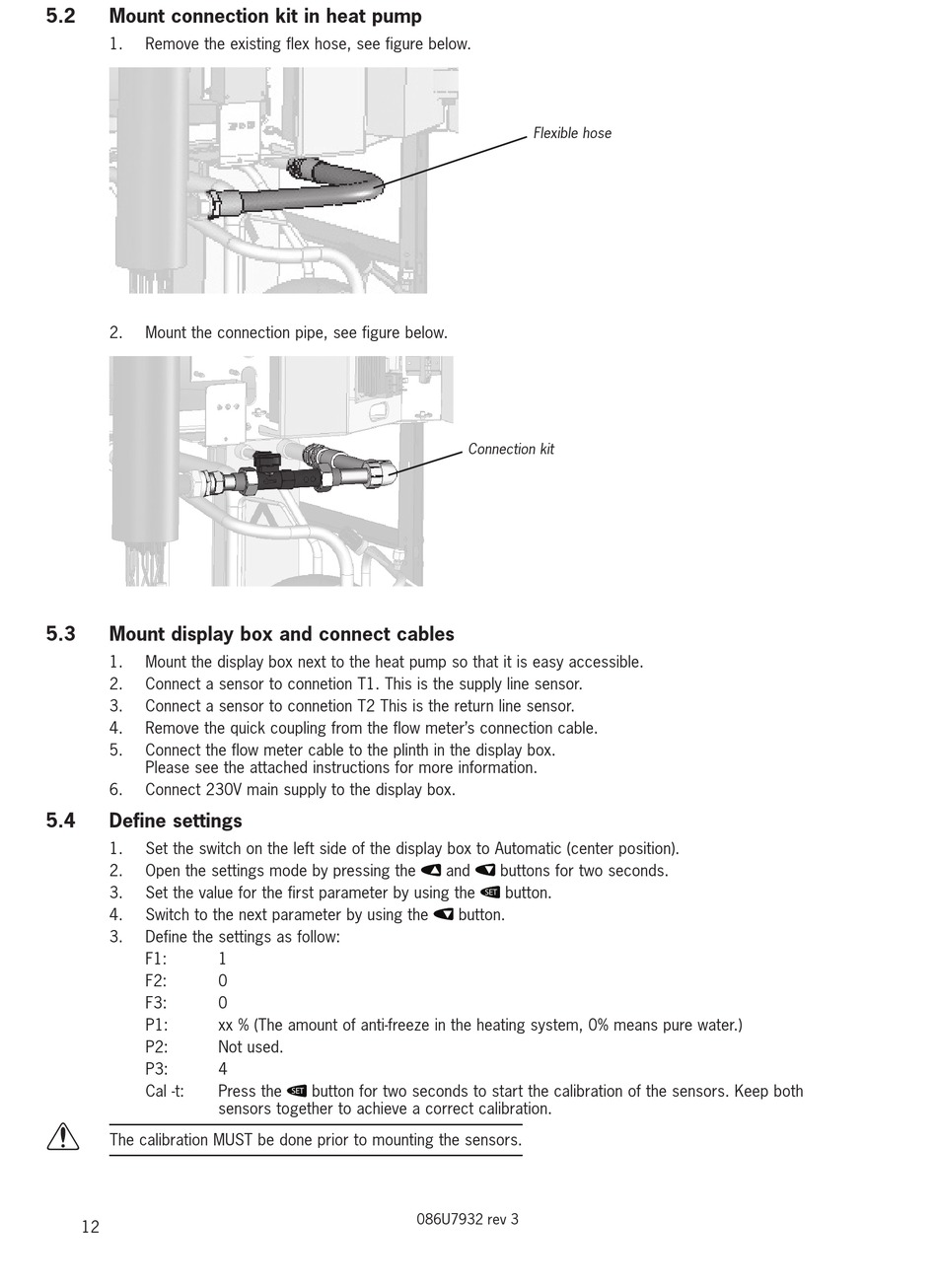

5.2
Mount connection kit in heat pump
1 .
Remove the existing flex hose, see figure below .
2 .
Mount the connection pipe, see figure below .
5.3
Mount display box and connect cables
1 .
Mount the display box next to the heat pump so that it is easy accessible .
2 .
Connect a sensor to connetion T1 . This is the supply line sensor .
3 .
Connect a sensor to connetion T2 This is the return line sensor .
4 .
Remove the quick coupling from the flow meter's connection cable .
5 .
Connect the flow meter cable to the plinth in the display box .
Please see the attached instructions for more information .
6 .
Connect 230V main supply to the display box .
5.4
Define settings
1 .
Set the switch on the left side of the display box to Automatic (center position) .
2 .
Open the settings mode by pressing the
3 .
Set the value for the first parameter by using the
4 .
Switch to the next parameter by using the
3 .
Define the settings as follow:
F1:
F2:
F3:
P1:
P2:
P3:
Cal -t:
⚠
The calibration MUST be done prior to mounting the sensors .
12
1
0
0
xx % (The amount of anti-freeze in the heating system, 0% means pure water .)
Not used .
4
Press the
button for two seconds to start the calibration of the sensors . Keep both
sensors together to achieve a correct calibration .
Flexible hose
Connection kit
and
buttons for two seconds .
�
button .
button .
�
086U7932 rev 3
