4.4

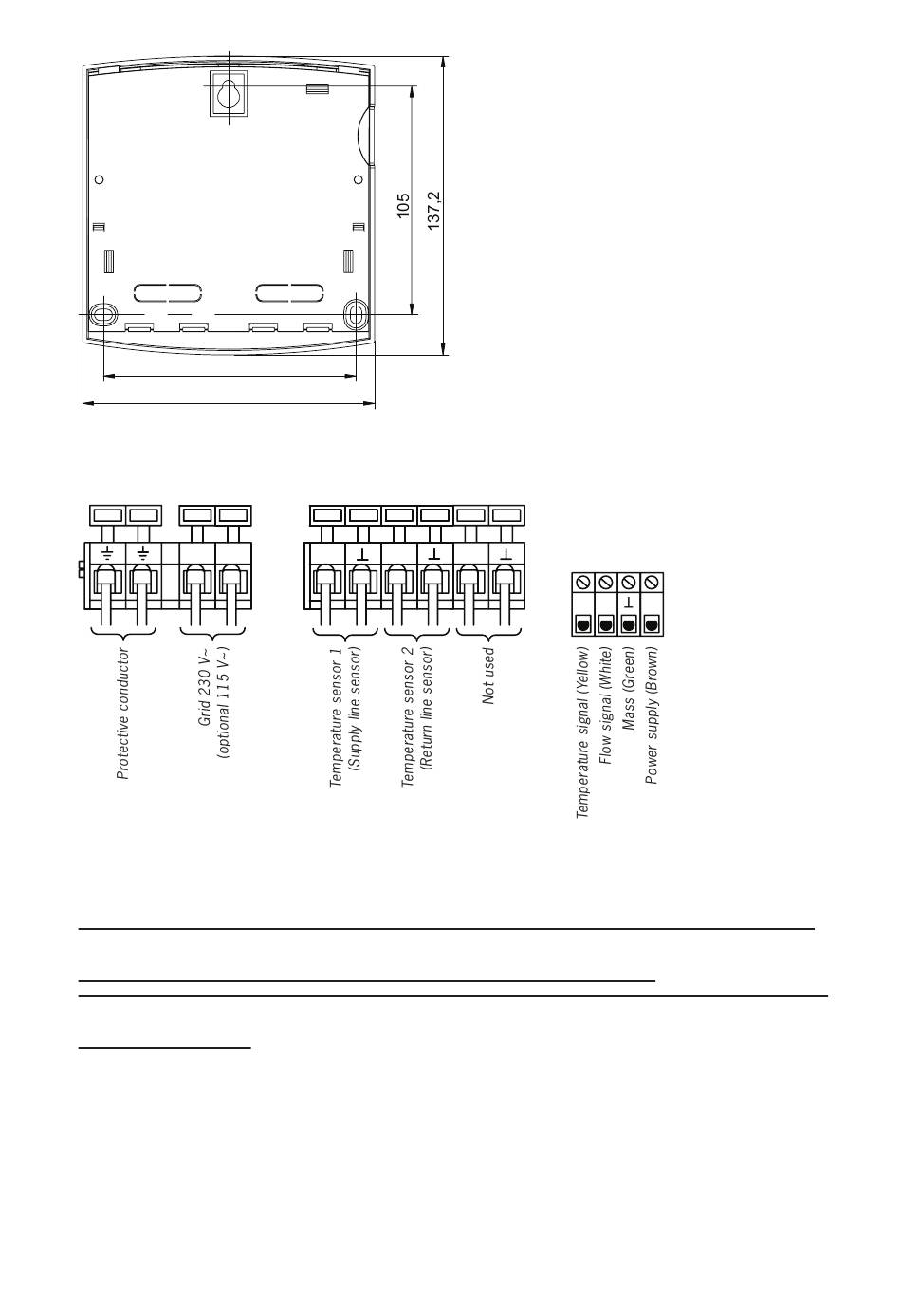

Dimensions
4.5
Electrical connections
5
Mounting instruction
⚠
Electrical current! The terminal blocks are live and can be highly dangerous due to the risk of electric
shock . The power supply must be isolated before electrical installation is started .
⚠
Electrical installation may only be carried out by an authorized electrician and must follow applicable local
and national regulations .
5.1
Assemble connection kit
1 .
Unpack the components .
2 .
Assemble the flow meter parts .
3 .
Assemble the complete connection pipe according to figures for respective size .
10
116
134
L
N
T1
T2
T3
086U7932 rev 3
Flow meter
connection
T Q
5V
+
