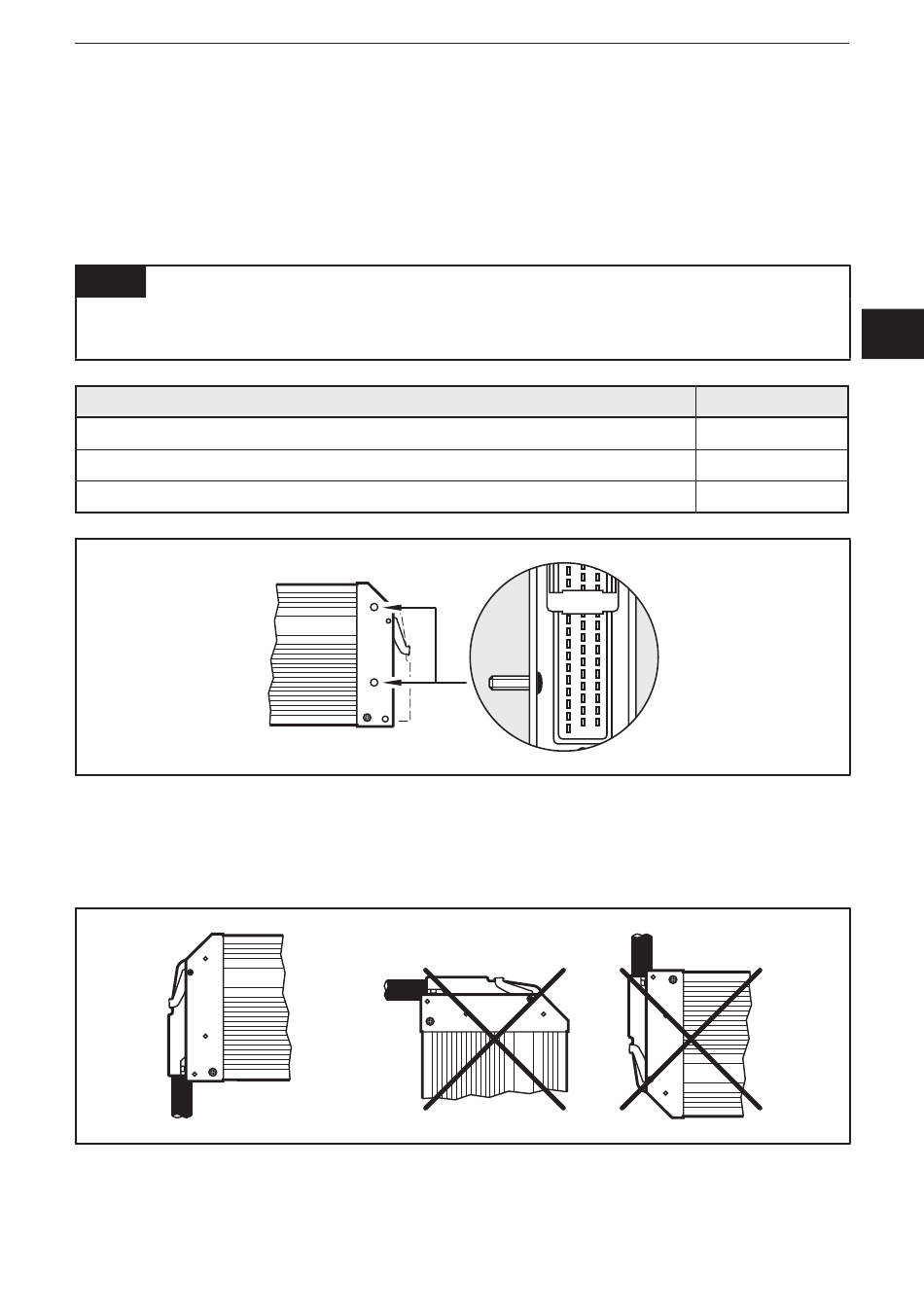

4 Installation

4.1 Fixing
► Fix the controller to a flat surface using 4 M5 screws�
Screw material: steel or stainless steel
Tightening torque: 8
NOTE
Use screws with a low head to avoid that the connector is damaged when placed
and locked�
Screws to be used (examples)
Button head hexagon socket screws (M5 x L)
Cylinder screws with hexagon socket and low head (M5 x L)
Cutting screws for metric ISO thread with low head
Example button head hexagon socket screw
4.2 Installation position
► Align the controller so that the cable entries of the connectors face downwards�
Preferred installation position
Nm
±2
SafetyController CR7032
Standard
ISO 7380
DIN 7984
DIN 7500
UK
7
