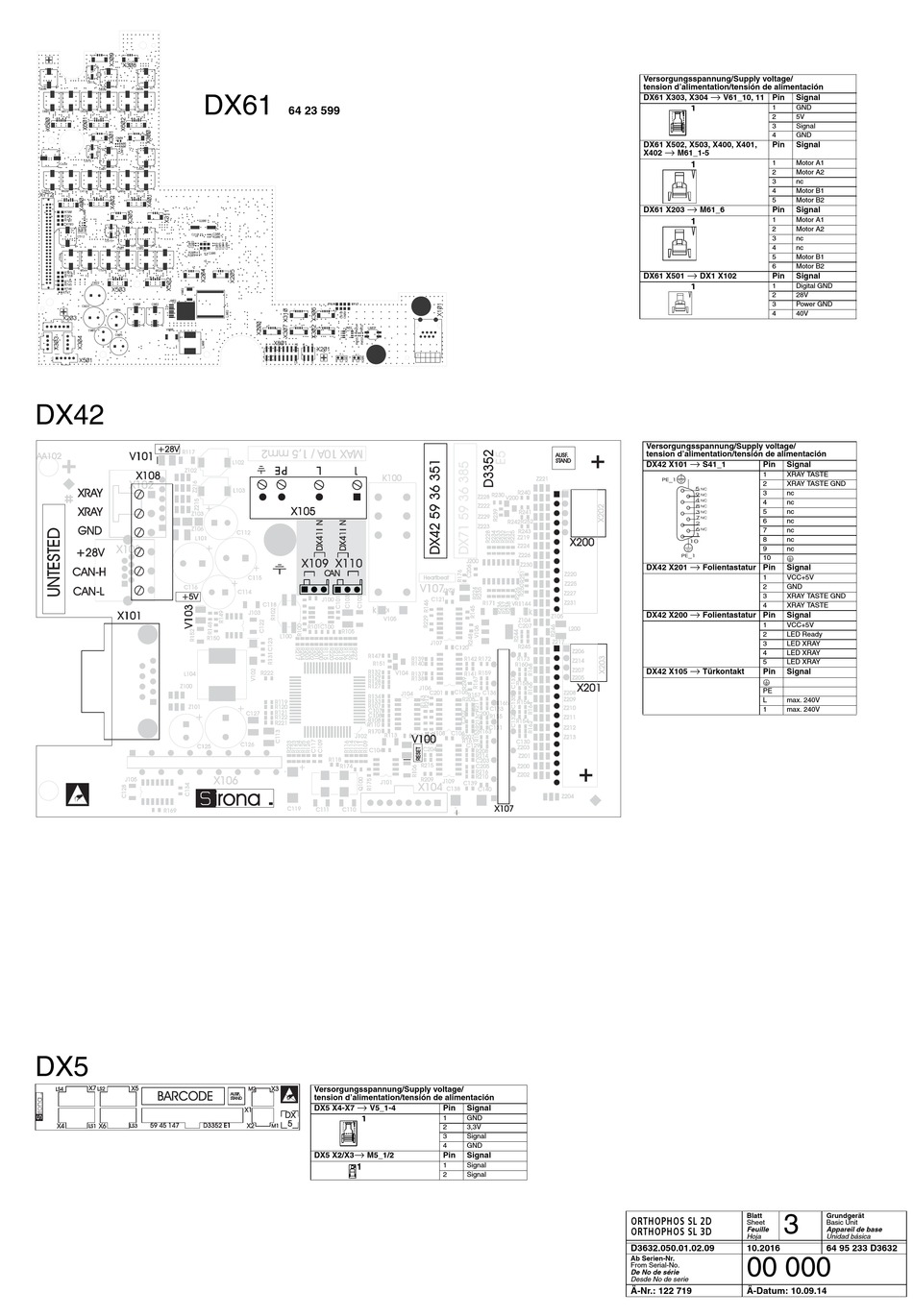

Sirona ORTHOPHOS SL 2D Schaltunterlagen Seite 9

DX61
DX42
DX5
64 23 599
Versorgungsspannung/Supply voltage/
tension d'alimentation/tensión de alimentación
→
DX5 X4-X7 V5_1-4 Pin
1
1
2
3
4
→
DX5 X2/X3 M5_1/2 Pin
1 1
2
Signal
GND
3,3V
Signal
GND
Signal
Signal
Signal
loqelmelp=pi=Oa
loqelmelp=pi=Pa
D3632.050.01.02.09
Ab Serien-Nr.
From Serial-No.
De No de série
Desde No de serie
Ä-Nr.: 122 719
Versorgungsspannung/Supply voltage/
tension d'alimentation/tensión de alimentación
→
DX61 X303, X304 V61_10, 11 Pin Signal
1 1 GND
2 5V
3 Signal
4 GND
DX61 X502, X503, X400, X401, Pin Signal
→
X402 M61_1-5
1 1 Motor A1
2 Motor A2
3 nc
4 Motor B1
5 Motor B2
→
DX61 X203 M61_6 Pin Signal
1 Motor A1
1
2 Motor A2
3 nc
4 nc
5 Motor B1
6 Motor B2
→
DX61 X501 DX1 X102 Pin Signal
1 1 Digital GND
2 28V
3 Power GND
4 40V
Versorgungsspannung/Supply voltage/
tension d'alimentation/tensión de alimentación
→
DX42 X101 S41_1 Pin Signal
1 XRAY TASTE
2 XRAY TASTE GND
3 nc
4 nc
5 nc
6 nc
7 nc
8 nc
9 nc
10
→
DX42 X201 Folientastatur Pin Signal
1 VCC+5V
2 GND
3 XRAY TASTE GND
4 XRAY TASTE
→
DX42 X200 Folientastatur Pin Signal
1 VCC+5V
2 LED Ready
3 LED XRAY
4 LED XRAY
5 LED XRAY
→
DX42 X105 Türkontakt Pin Signal
PE
L max. 240V
1 max. 240V
Blatt
3
Sheet
Feuille
Hoja
10.2016
00 000
Ä-Datum: 10.09.14
Grundgerät
Basic Unit
Appareil de base
Unidad básica
