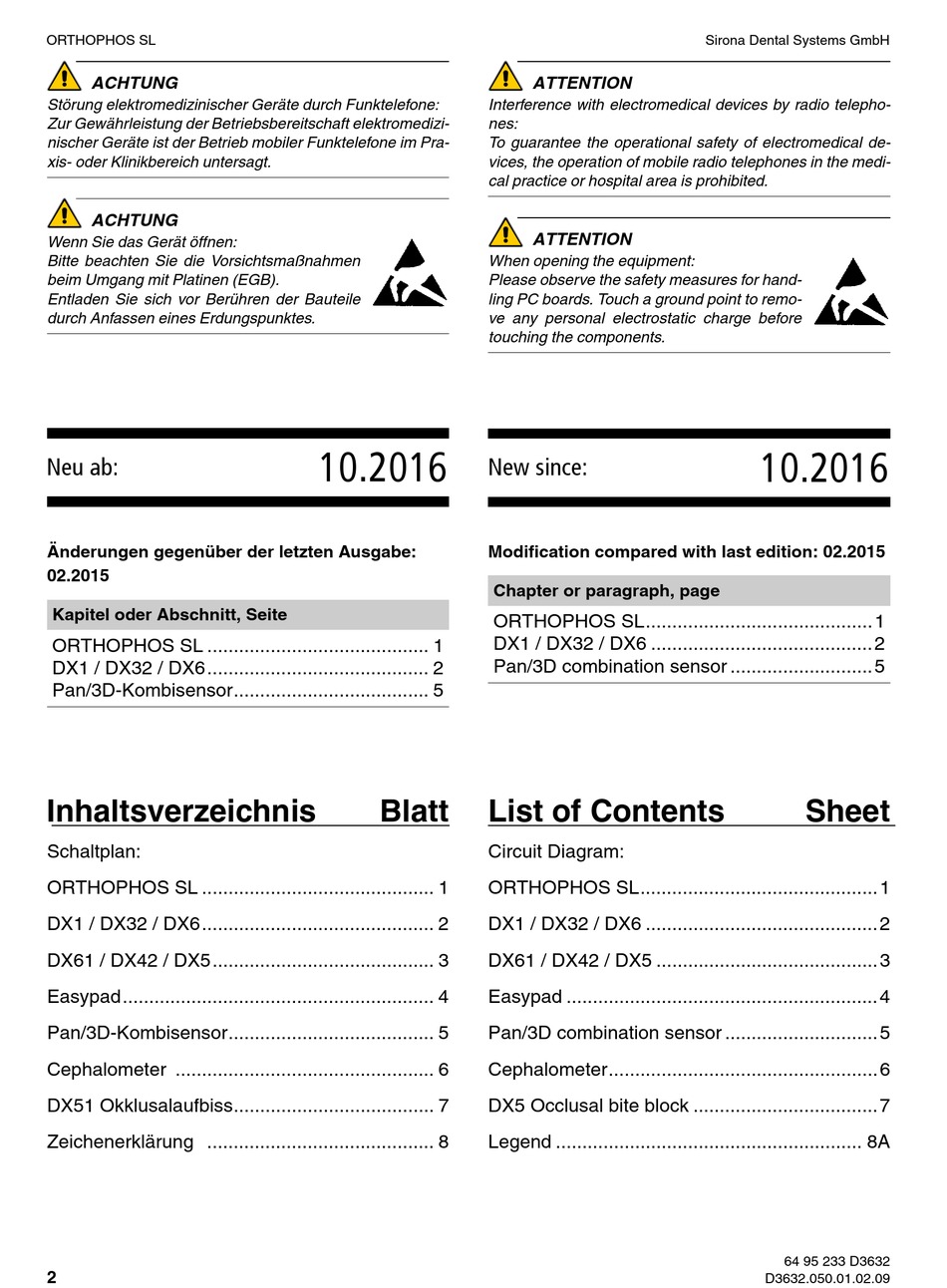

ORTHOPHOS SL
ACHTUNG
Störung elektromedizinischer Geräte durch Funktelefone:
Zur Gewährleistung der Betriebsbereitschaft elektromedizi-
nischer Geräte ist der Betrieb mobiler Funktelefone im Pra-
xis- oder Klinikbereich untersagt.
ACHTUNG
Wenn Sie das Gerät öffnen:
Bitte beachten Sie die Vorsichtsmaßnahmen
beim Umgang mit Platinen (EGB).
Entladen Sie sich vor Berühren der Bauteile
durch Anfassen eines Erdungspunktes.
kÉì=~ÄW
Änderungen gegenüber der letzten Ausgabe:
02.2015
Kapitel oder Abschnitt, Seite
ORTHOPHOS SL .......................................... 1
DX1 / DX32 / DX6.......................................... 2
Pan/3D-Kombisensor..................................... 5
Inhaltsverzeichnis
Schaltplan:
ORTHOPHOS SL ............................................ 1
DX1 / DX32 / DX6............................................ 2
DX61 / DX42 / DX5.......................................... 3
Easypad........................................................... 4
Pan/3D-Kombisensor....................................... 5
Cephalometer ................................................. 6
DX51 Okklusalaufbiss...................................... 7
Zeichenerklärung ........................................... 8
2
Interference with electromedical devices by radio telepho-
nes:
To guarantee the operational safety of electromedical de-
vices, the operation of mobile radio telephones in the medi-
cal practice or hospital area is prohibited.
When opening the equipment:
Please observe the safety measures for hand-
ling PC boards. Touch a ground point to remo-
ve any personal electrostatic charge before
touching the components.
NMKOMNS
kÉï=ëáåÅÉW
Modification compared with last edition: 02.2015
Chapter or paragraph, page
ORTHOPHOS SL........................................... 1
DX1 / DX32 / DX6 .......................................... 2
Pan/3D combination sensor ........................... 5
Blatt
List of Contents
Circuit Diagram:
ORTHOPHOS SL............................................. 1
DX1 / DX32 / DX6 ............................................2
DX61 / DX42 / DX5 ..........................................3
Easypad ...........................................................4
Pan/3D combination sensor .............................5
Cephalometer...................................................6
DX5 Occlusal bite block ...................................7
Legend .......................................................... 8A
Sirona Dental Systems GmbH
ATTENTION
ATTENTION
NMKOMNS
Sheet
64 95 233 D3632
D3632.050.01.02.09
