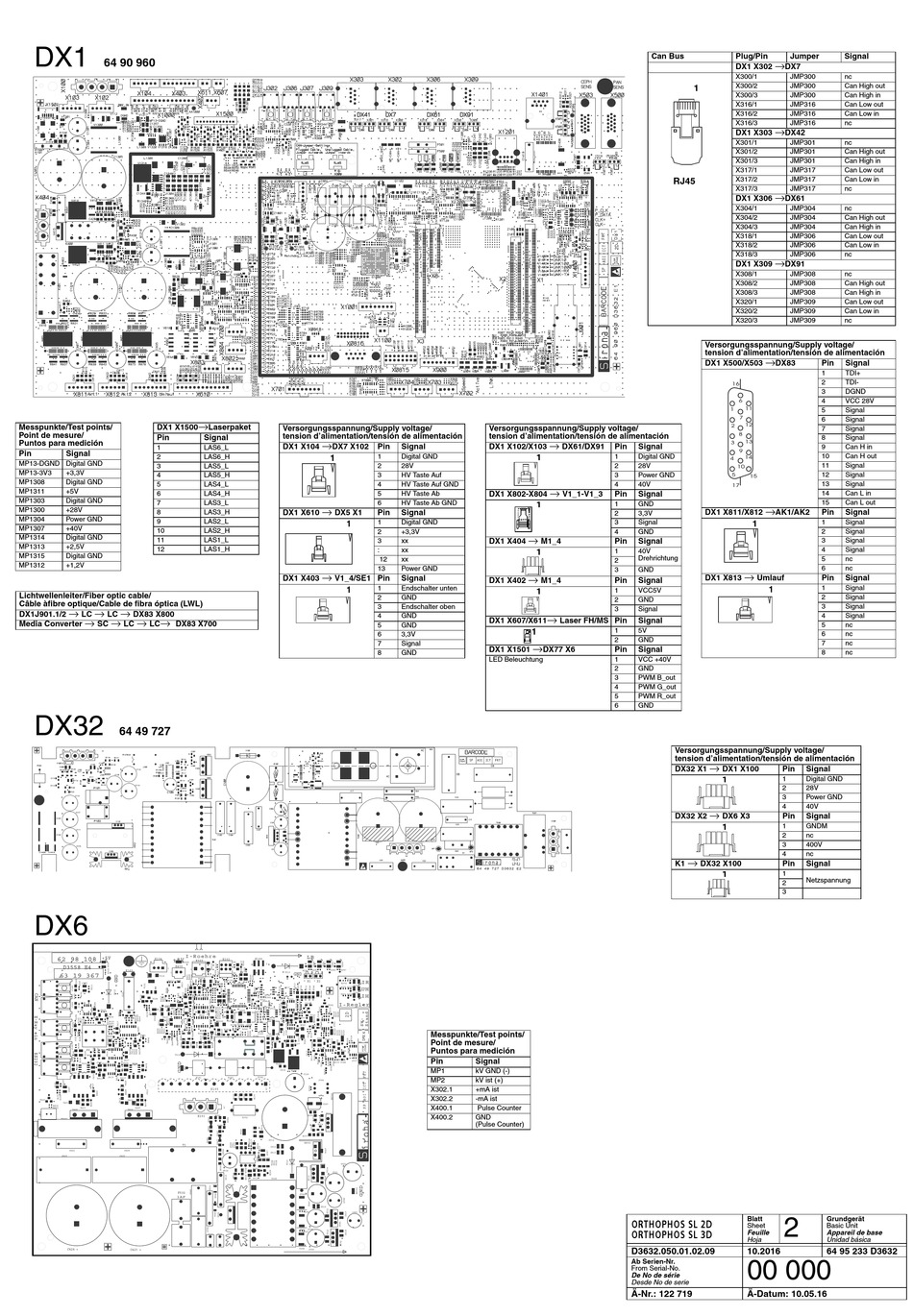

Sirona ORTHOPHOS SL 2D Schaltunterlagen Seite 7

DX1
64 90 960
Messpunkte/Test points/ DX1 X1500
Point de mesure/
Pin
Puntos para medición
1
Pin Signal
2
MP13-DGND Digital GND
3
MP13-3V3 +3,3V
4
MP1308 Digital GND
5
MP1311 +5V
6
MP1303 Digital GND
7
MP1300 +28V
8
MP1304 Power GND
9
MP1307 +40V
10
MP1314 Digital GND
11
MP1313 +2,5V
12
MP1315 Digital GND
MP1312 +1,2V
Lichtwellenleiter/Fiber optic cable/
Câble àfibre optique/Cable de fibra óptica (LWL)
→ → →
DX1J901.1/2 LC LC DX83 X800
→ → → →
Media Converter SC LC LC DX83 X700
DX32
64 49 727
DX6
→
Laserpaket
Versorgungsspannung/Supply voltage/
tension d'alimentation/tensión de alimentación
Signal
→
DX1 X104 DX7 X102
LAS6_L
LAS6_H 1
LAS5_L
LAS5_H
LAS4_L
LAS4_H
LAS3_L
→
LAS3_H DX1 X610 DX5 X1
LAS2_L
1
LAS2_H
LAS1_L
LAS1_H
→
DX1 X403 V1_4/SE1 Pin
1
Versorgungsspannung/Supply voltage/
tension d'alimentation/tensión de alimentación
→
Pin Signal DX1 X102/X103
1
1 Digital GND
2 28V
3 HV Taste Auf
4 HV Taste Auf GND
→
5 HV Taste Ab DX1 X802-X804
6 HV Taste Ab GND
1
Pin Signal
1 Digital GND
2 +3,3V
→
3 xx DX1 X404 M1_4
: xx
1
12 xx
13 Power GND
→
Signal
DX1 X402 M1_4
1 Endschalter unten
1
2 GND
3 Endschalter oben
4 GND →
DX1 X607/X611
5 GND
1
6 3,3V
7 Signal
→
DX1 X1501 DX77 X6
8 GND
LED Beleuchtung
Messpunkte/Test points/
Point de mesure/
Puntos para medición
Pin Signal
MP1 kV GND (-)
MP2 kV ist (+)
X302.1 +mA ist
X302.2 -mA ist
X400.1 Pulse Counter
X400.2 GND
(Pulse Counter)
Can Bus
1
RJ45
Versorgungsspannung/Supply voltage/
tension d'alimentation/tensión de alimentación
DX1 X500/X503
DX61/DX91 Pin Signal
1 Digital GND
2 28V
3 Power GND
4 40V
V1_1-V1_3 Pin Signal
1 GND
DX1 X811/X812
2 3,3V
3 Signal
4 GND
Pin Signal
1 40V
Drehrichtung
2
3 GND
DX1 X813
Pin Signal
1 VCC5V
2 GND
3 Signal
Laser FH/MS Pin Signal
1 5V
2 GND
Pin Signal
1 VCC +40V
2 GND
3 PWM B_out
4 PWM G_out
5 PWM R_out
6 GND
Versorgungsspannung/Supply voltage/
tension d'alimentation/tensión de alimentación
→
DX32 X1 DX1 X100
1
→
DX32 X2 DX6 X3
1
→
K1 DX32 X100
1
loqelmelp=pi=Oa
loqelmelp=pi=Pa
D3632.050.01.02.09
Ab Serien-Nr.
From Serial-No.
De No de série
Desde No de serie
Ä-Nr.: 122 719
Plug/Pin Jumper Signal
→
DX1 X302 DX7
X300/1 JMP300 nc
X300/2 JMP300 Can High out
X300/3 JMP300 Can High in
X316/1 JMP316 Can Low out
X316/2 JMP316 Can Low in
X316/3 JMP316 nc
→
DX1 X303 DX42
X301/1 JMP301 nc
X301/2 JMP301 Can High out
X301/3 JMP301 Can High in
X317/1 JMP317 Can Low out
X317/2 JMP317 Can Low in
X317/3 JMP317 nc
→
DX1 X306 DX61
X304/1 JMP304 nc
X304/2 JMP304 Can High out
X304/3 JMP304 Can High in
X318/1 JMP306 Can Low out
X318/2 JMP306 Can Low in
X318/3 JMP306 nc
→
DX1 X309 DX91
X308/1 JMP308 nc
X308/2 JMP308 Can High out
X308/3 JMP308 Can High in
X320/1 JMP309 Can Low out
X320/2 JMP309 Can Low in
X320/3 JMP309 nc
→
DX83 Pin Signal
1 TDI+
2 TDI-
3 DGND
4 VCC 28V
5 Signal
6 Signal
7 Signal
8 Signal
9 Can H in
10 Can H out
11 Signal
12 Signal
13 Signal
14 Can L in
15 Can L out
→
AK1/AK2 Pin Signal
1 1 Signal
2 Signal
3 Signal
4 Signal
5 nc
6 nc
→
Umlauf Pin Signal
1 Signal
1
2 Signal
3 Signal
4 Signal
5 nc
6 nc
7 nc
8 nc
Pin Signal
1 Digital GND
2 28V
3 Power GND
4 40V
Pin Signal
1 GNDM
2 nc
3 400V
4 nc
Pin Signal
1
Netzspannung
2
3
Blatt Grundgerät
2
Sheet Basic Unit
Feuille Appareil de base
Hoja Unidad básica
10.2016 64 95 233 D3632
00 000
Ä-Datum: 10.05.16
