Inhaltszusammenfassung für Compass Model WARP 360

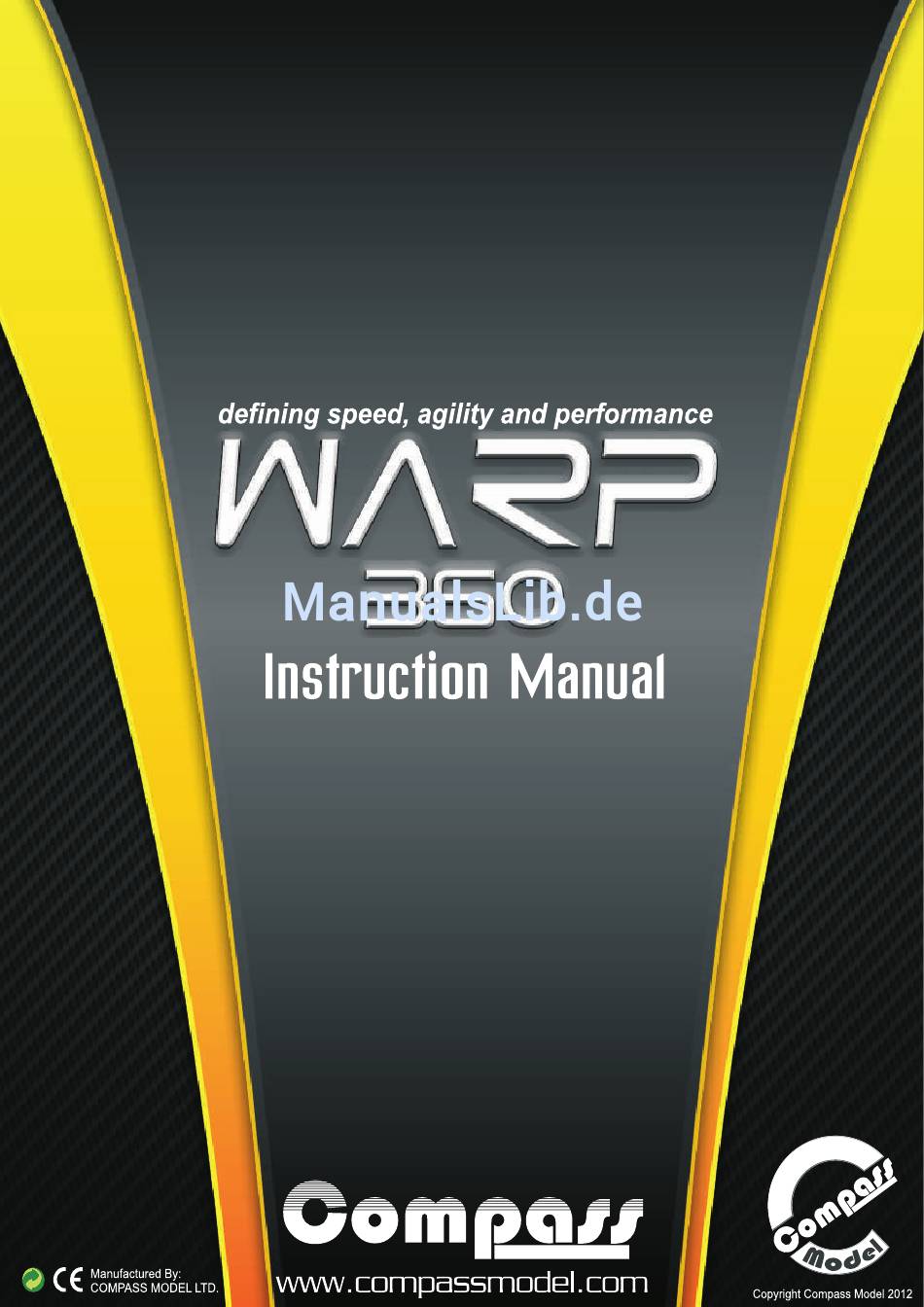

  • Seite 1 Version 05/13...

  • Seite 2: Inhaltsverzeichnis

    Content / Inhaltsverzeichnis Page Topic Thema Front Cover Deckblatt Content Inhaltsverzeichnis Content Inhaltsverzeichnis Content Inhaltsverzeichnis Introduction, Warranty, Safety (eng) Einleitung, Garantie und Sicherheit (eng) Introduction, Warranty, Safety (de) Einleitung, Garantie und Sicherheit (de) Technical Specification Technische Daten Basic Information Grundlagen (eng) Basic Information Grundlagen (de) STEP1: Main Blade Grips...
  • Seite 3 Content / Inhaltsverzeichnis Page Topic Thema STEP24: Tail Control Rod Schritt 24: Hecksteuerstange STEP25: Autorotation Hub Schritt 25: Autorotations-Freilauf STEP26: Main Pulley 1 Schritt 26: Haupt Riemenrad 1 STEP27: Main Pulley 2 Schritt 27: Haupt Riemenrad 2 STEP28: Motor Mount Schritt 28: Motorträger STEP29: Side Frame Left 1 Schritt 29: Seitenteil Links 1...
  • Seite 4 Content / Inhaltsverzeichnis Page Topic Thema STEP55: Servo Arm Assembly Schritt 55: Servoarm - Montage STEP56: Swash Guide Schritt 56: Taumelscheibenführung STEP57: Swash Rods Schritt 57: Gestänge STEP58: Swash Link Assembly Schritt 58: Gestänge - Montage STEP59: Swash Guide Assembly Schritt 59: Taumelscheibenführung - Montage STEP60: Rotor Blades / Velcro Assembly Schritt 60: Rotorblätter / Klettband - Montage...
  • Seite 5 Model Ltd. assumes no liability for damage that could occur from the assembly and/or use/misuse of this product. Although the WARP 360 is powered by a quiet, smooth-running electric motor, it should be assembled and operated with the same care as glow engine helicopters. When operating your Atom 7HV, please exercise caution and safety.
  • Seite 6 Model Ltd. assumes no liability for damage that could occur from the assembly and/or use/misuse of this product. Although the WARP 360 is powered by a quiet, smooth-running electric motor, it should be assembled and operated with the same care as glow engine helicopters. When operating your Atom 7HV, please exercise caution and safety.

  • Seite 7: Einleitung

    Haftung für Schäden, die aus der Montage und/oder Gebrauch/Missbrauch des Produktes hervorgehen. Obwohl der Compass Model Atom WARP 360 durch einen Elektromotor betrieben wird, sollte er mit der gleichen Sorgfalt wie ein Verbrennermodell gebaut und betrieben werden. Betreiben Sie Ihren WARP 360 stets mit größter Vorsicht und Sicherheit.
  • Seite 8 Technical Specification / Technische Daten Height / Höhe 220mm Width / Breite 105mm Rotor Diameter / Rotordurchmesser 780 - 800mm Gear Ratio (16T) / Untersetzung (16 Zähne) 8.44 : 1 : 4.8 Take Off Weight with Battery / Startgewicht mit Akku 920 - 1030g Motor KV (6S) / Motor KV (6S) 1200 - 1400...
  • Seite 9 Damaged ball links must be replaced immediately. Ball links are always clipped onto the ball with the Compass logo facing outwards. Ball links of Compass Model are moving a little hard, while they are new. With a link sizer (part number: E-XQT-01) you can adjust it to guarantee a perfect fit on the balls.
  • Seite 10 Nylon Stoppmuttern sollten nach einmaligen Gebrauch getauscht werden um eine ideale Funktion zu gewährleisten. Compass Model ist stets bemüht hochwertige Kugellager zu verwenden, aber auch diese müssen von Zeit zu Vermeiden Sie Öle zum Schmieren der Kugellager, da diese nicht Zeit, oder nach einem Absturz geprüft werden.
  • Seite 11 Main Blade Grips (2x) Pos. Description Qty. Part number Use bearing grease on the thrust Main Grip Center 10-0001 bearing (5). Press the bearings in the shown order into the maingrip center Main Grip Plate 10-1000 (1). The thrust bearing ring with the larger inner diameter must face to the Botton Head M2.5x5 79-2505...
  • Seite 12 Swashplate Swashplate 1 Pos. Description Qty. Part number Swashplate 10-0003S Cap Head Bolt M2x6S 80-0206s Stainless Link Balls 02-0701 Use medium threadlock on all Preassembled by factory. screws going into metal parts. Verwenden Sie auf allen Bereits vormontiert. Schrauben die in Metallteile geschraubt werden mittelfeste Schraubensicherung.

  • Seite 13: Step3: Swash Driver

    Swash Driver (2x) Pos. Description Qty. Part number Swash Driver 10-0004 Flanged Bearing 3x6x2 61-3062 Use medium threadlock on all screws going into metal parts. Ball Link 02-0709S Verwenden Sie auf allen Schrauben die in Metallteile Setscrew M3x16 81-0316 geschraubt werden mittelfeste Schraubensicherung.

  • Seite 14: Step4: Rotor Head

    Rotor Head 1 Pos. Description Qty. Part number Rotor Hub 10-0005 Use medium threadlock on all screws going into metal parts. Main Shaft 10-4000 Verwenden Sie auf allen Cap Head Bolt M3x6 80-0306 Schrauben die in Metallteile geschraubt werden mittelfeste Cap Head Bolt M2.5x12 80-2512 Schraubensicherung.
  • Seite 15 Rotor Head 2 Use medium threadlock on all Pos. Description Qty. screws going into metal parts. Parts from Step 4 Verwenden Sie auf allen Schrauben die in Metallteile Parts from Step 3 geschraubt werden mittelfeste Schraubensicherung. Put the threadlock into the thread in the main grip center (3) and be careful to not get any threadlock in the bearings.

  • Seite 16: Step8: Tail Case

    Swashplate 2 Pos. Description Qty. Parts from Step 5 Parts from Step 2 Slide the swashplate (2) on the main shaft and clip the ball links with the Compass writing facing to the outside onto the balls. Schieben Sie die Taumelscheibe (2) auf die Hauptrotorwelle und klipsen Sie die Kugelpfannen mit dem Compass Schriftzug nach außen auf.

  • Seite 17: Step15: Tail Rotor

    Tail Case 2 Pos. Description Qty. Part number Tail Case Center 10-0006 Tail Pulley 17T 10-0007 Use medium threadlock on all screws going into metal parts. Cap Head Bolt M2x4 80-0204 Verwenden Sie auf allen Tail Rotor Shaft 10-4001 Schrauben die in Metallteile geschraubt werden mittelfeste Schraubensicherung.
  • Seite 18 Tail Case 3 Pos. Description Qty. Part number Tail Boom 400mm 10-0008 Use medium threadlock on all screws going into metal parts. Tail Belt 40 S2M 1062 NG 98-1062 Verwenden Sie auf allen Cap Head Bolt M2x6 80-0206 Schrauben die in Metallteile geschraubt werden mittelfeste Tail Arm Holder CNC 10-2001a...
  • Seite 19 Tail Control Arm Pos. Description Qty. Part number Cap Socket Bolt M2x8 80-0208 Use medium threadlock on all screws going into metal parts. Cap Socket Bolt M2.5x14 80-2514 Verwenden Sie auf allen Ring 2.2x5x0.3 82-2205 Schrauben die in Metallteile geschraubt werden mittelfeste Ring 2.5x4.1x0.2 82-2540 Schraubensicherung.

  • Seite 20: Schritt 11: Heckblatthalter

    Tail Grip Pos. Description Qty. Part number Tail Grip 10-2003 Stainless Link Balls 02-0701 Cap Socket Bolt M2x6s 80-0206s Be careful not to overtighten Mount the stainless link balls (2) with the bolts (3) to the tail grips (1). screws going into plastic parts. Montieren Sie die Kugeln (2) mit den Schrauben (3) an die Ziehen Sie Schrauben die in Heckblatthalter (1).

  • Seite 21: Schritt 12: Heckrotornabe

    Tail Rotor Hub 1 Pos. Description Qty. Part number Tail Rotor Hub 10-0010 Setscrew M3x5 81-0305 Ring 4x6x2 10-5009 Cap Socket Bolt M2.5x6 80-2506 Bearing 4x9x4 60-4094 Parts from Step 11 Use medium threadlock on all Press the bearings (5) in the shown order into the screws going into metal parts.
  • Seite 22 Tail Rotor Hub 2 Pos. Description Qty. Part number Tail Rotor Blades 65mm 10-2014 Cap Socket Bolt M2x16 80-0216 Nylon Lock Nuts M2 91-0002 Special Washer 10-5010 Chinese Weights 10-5017 Parts from Step 12 Mount the tail rotor blades (1) with the leading edge towards the ball link at the tail blade grip. Use one washer (4) on each side of the tail rotor blades.
  • Seite 23 Tail Pitch Slider Pos. Description Qty. Part number Preassembled by factory. Tail Pitch Sleeve 10-5011 Bereits vormontiert. Flanged Bearing 6x10x3 61-6103 Tail Pitch Slider Ring 10-2004 Tail Pitch Bridge 10-0011 Use medium threadlock on all Stainless Link Balls 02-0701 screws going into metal parts. Cap Socket Bolt M2x6S 80-0206S Verwenden Sie auf allen...
  • Seite 24 Tail Rotor 1 Pos. Description Qty. Use medium threadlock on all screws going into metal parts. Parts from Step 9 Verwenden Sie auf allen Parts from Step 13 Schrauben die in Metallteile geschraubt werden mittelfeste Schraubensicherung. Parts from Step 14 Push the tail pitch slider (1) onto the tail rotor shaft of the tail unit (3) assembled in step 14.
  • Seite 25 Tail Rotor 2 Pos. Description Qty. Parts from Step 15 Parts from Step 10 Be careful not to overtighten Mount the tail pitch control arm (2) assembled in Step 10 to the screws going into plastic parts. tail unit (1). The ball must be in the plastic sliding tube. Please be very careful while tighten up the bolt.
  • Seite 26 Radio Tray Preassembled by factory. Pos. Description Qty. Part number Cross Member Radiotray 10-0012 Bereits vormontiert. Radio Tray 10-1004 Flat Head Bolt M2x6 78-0206 Use medium threadlock on all Mount the cross members (1) with the flat side screws going into metal parts. towards the radio tray (2) Verwenden Sie auf allen Montieren Sie die Crossmember (1) mit der flachen...
  • Seite 27 Lower Bearing Block Preassembled by factory. Pos. Description Qty. Part number Lower Bearing Block 10-0014 Bereits vormontiert. Flanged Bearing 6x13x3 61-6135 To change the flanged bearing you should heat up the bearing block with a heat gun and then remove the bearing with even pressure.
  • Seite 28 Servo Mount Pos. Description Qty. Part number Servo Nut 6mm 10-2005 Be careful not to overtighten screws going into plastic parts. Servo Nut 7mm 10-2009 Ziehen Sie Schrauben die in Kunststoffteile geschraubt Cap Socket Bolt M2x8 80-0208 werden vorsichtig an ohne sie zu überdrehen.
  • Seite 29 Servo Arm 15mm (3x) Pos. Description Qty. Part number Cap Socket Bolt M2x8S 80-0208S Stainless Link Balls 02-0701 Hex Nuts 2x1 90-0201 CF Servo Arm Stiffener 10-1013 Servo Arm (ball distance 15mm) Not included Use medium threadlock on all For a proper fitting of the CF servo arm stiffeners screws going into metal parts.
  • Seite 30 Servo Arm 12mm Pos. Description Qty. Part number Cap Socket Bolt M2x10 80-0210 Stainless Link Balls 02-0701 Hex Nuts 2x1 90-0201 Ring 2,2x5x0,3 82-2205 Ball Link M2 02-0709 Servo Arm (ball distance 12mm) Not included Use medium threadlock on all For the tail servo, a servo arm (6) with 12mm hole screws going into metal parts.
  • Seite 31 Belt Tensioner Pos. Description Qty. Part number Belt Tensioner Mount 10-0016 Use medium threadlock on all Guiding Wheel Tailbelt 10-0017 screws going into metal parts. Guiding Wheel Mainbelt 10-0018 Verwenden Sie auf allen Schrauben die in Metallteile Cap Socket Bolt M3x12 80-0312 geschraubt werden mittelfeste Schraubensicherung.

  • Seite 32: Step24: Tail Control Rod

    Tail Control Rod Pos. Description Qty. Part number Tail Control Rod 418mm 4mm 10-1017 Rod M2 38mm 10-4002 Delrin Tail Link Support 09-7080 Push the two delrin tail link supports (3) on the tail Preassembled by factory. control rod (1). Sand the linkage rod (2) to get a rough surface and clean it with alcohol.

  • Seite 33: Step25: Autorotation Hub

    Autorotation Hub Preassembled by factory. Pos. Description Qty. Part number Autorotation Hub 10-0019 Bereits vormontiert. Autorotation Sleeve 10-4003 Cap Socket Bolt M2.5x16 80-2516 Nylon Lock Nut M2.5 91-0025 Use medium threadlock on all screws going into metal parts. Bearing 6x12x4 60-6124 Verwenden Sie auf allen Schrauben die in Metallteile...

  • Seite 34: Step26: Main Pulley

    Main Pulley 1 Pos. Description Qty. Part number Main Pulley 10-2006 Use medium threadlock on all screws going into metal parts. Cap Socket Bolt M2x6s 80-0206s Verwenden Sie auf allen Hex Nuts M2x1 90-0201 Schrauben die in Metallteile geschraubt werden mittelfeste Schraubensicherung.
  • Seite 35 Main Pulley 2 Pos. Description Qty. Part number Parts from Step 26 Cap Socket Bolt M2x6 80-0206 Parts from Step 25 Tail Pulley Drive 10-2006-2 Use medium threadlock on all Insert the bolts (2) from below into the tail screws going into metal parts. pulley (4) and main gear (1).

  • Seite 36: Step28: Motor Mount

    Motor Mount Pos. Description Qty. Part number Motor Mount 10-0020 Use medium threadlock on all Botton Head M3x6 79-0306 screws going into metal parts. Motor Pulley 16T 10-0021-a16 Verwenden Sie auf allen Schrauben die in Metallteile geschraubt werden mittelfeste Setscrew M3x3 81-0303 Schraubensicherung.

  • Seite 37: Step29: Side Frame Left

    Side Frame Left 1 Pos. Description Qty. Part number Canopy Standoff 10-0022 Use medium threadlock on all screws going into metal parts. Side Frame Left 10-1008 Verwenden Sie auf allen Schrauben die in Metallteile Cap Socket Bolt M2x6 80-0206 geschraubt werden mittelfeste Schraubensicherung.
  • Seite 38 Side Frame Right Pos. Description Qty. Part number Canopy Standoff 10-0022 Use medium threadlock on all screws going into metal parts. Side Frame Right 10-1009 Verwenden Sie auf allen Cap Socket Bolt M2x6 80-0206 Schrauben die in Metallteile geschraubt werden mittelfeste Schraubensicherung.
  • Seite 39 Elevator Servo Pos. Description Qty. Part number Be careful not to overtighten screws going into plastic parts. Cap Socket Bolt M2x18 80-0218 Ziehen Sie Schrauben die in Servo Spacer (MKS) 10-2011 Kunststoffteile geschraubt werden vorsichtig an ohne sie Servo Nut 6mm 10-2005 zu überdrehen.
  • Seite 40 Battery Tray Assembly Pos. Description Qty. Part number Be careful not to overtighten screws going into plastic parts. Cap Socket Bolt M2.5x6 80-2506 Ziehen Sie Schrauben die in Batterie Tray 10-2013 Kunststoffteile geschraubt werden vorsichtig an ohne sie Parts from Step 31 zu überdrehen.
  • Seite 41 Belt Tensioner Assembly Pos. Description Qty. Part number Cap Socket Bolt M2x8 80-0208 Special Washer 10-1016 Parts from Step 32 Parts from Step 23 Mount the belt tensioner (4) with the bolts (1) and the special washer (2) to the left side frame (3). The larger belt guide wheel needs to be facing up and and faced to the left side frame.
  • Seite 42 Upper Bearing Block Assembly Pos. Description Qty. Part number Cap Socket Bolt M2x6 80-0206 Parts from Step 33 Parts from Step 19 Use medium threadlock on all Mount the upper bearing´block (3) with screws going into metal parts. the bolts (1) to the left side frame (2). The flange of the bearing need to face Verwenden Sie auf allen upwards.
  • Seite 43 Lower Bearing Block Assembly Pos. Description Qty. Part number Cap Socket Bolt M2x6 80-0206 Parts from Step 18 Parts from Step 34 Mount the lower bearing block (2) with the bolts (1) to the left side frame (3). The Use medium threadlock on all flange of the bearing need to face screws going into metal parts.
  • Seite 44 Servo Mount Assembly Pos. Description Qty. Part number Cap Socket Bolt M2x6 80-0206 Use medium threadlock on all screws going into metal parts. Parts from Step 35 Verwenden Sie auf allen Schrauben die in Metallteile Parts from Step 20 geschraubt werden mittelfeste Schraubensicherung.
  • Seite 45 Frame Support Pos. Description Qty. Part number Frame Support 10-0025 Cap Socket Bolt M2x6 80-0206 Parts from Step 36 Use medium threadlock on all screws going into metal parts. Attache the frame support (1) with the bolt (2) to the left side frame. Verwenden Sie auf allen Schrauben die in Metallteile Montieren sie die Chassisversteifung (1)
  • Seite 46 Radio Tray Assembly Pos. Description Qty. Part number Cap Socket Bolt M2x6 80-0206 Use medium threadlock on all screws going into metal parts. Parts from Step 37 Verwenden Sie auf allen Parts from Step 17 Schrauben die in Metallteile geschraubt werden mittelfeste Schraubensicherung.
  • Seite 47 Motor Mount Assembly 1 Pos. Description Qty. Part number Cap Socket Bolt M2x8 80-0208 Use medium threadlock on all screws going into metal parts. Parts from Step 38 Verwenden Sie auf allen Parts from Step 28 Schrauben die in Metallteile geschraubt werden mittelfeste Schraubensicherung.
  • Seite 48 Tail Boom Holder Assembly Pos. Description Qty. Part number Cap Socket Bolt M2.5x40 80-2540 Washer 2.7x7x0.8 82-2578 Tail Boom Holder 10-2000 Parts from Step 39 Stick the bolts (1) with the washers (2) through the side frame (4) and then through the two tail boom holders (3). The pin (marked red in the picture) in the tail boom holder must face towards the motor mount.
  • Seite 49 Side Frame Left to Right 1 Pos. Description Qty. Part number Cap Socket Bolt M2x6 80-0206 Use medium threadlock on all screws going into metal parts. Washer 2.7x7x.08 82-2578 Verwenden Sie auf allen Schrauben die in Metallteile Nylon Lock Nut M2.5 91-0025 geschraubt werden mittelfeste Schraubensicherung.
  • Seite 50 Side frame Left to Right 2 Pos. Description Qty. Part number Cap Socket Bolt M2.5x6 80-2506 Cap Socket Bolt M2x6 80-0206 Parts from Step 41 Use medium threadlock on all screws going into metal parts. Verwenden Sie auf allen Schrauben die in Metallteile geschraubt werden mittelfeste Schraubensicherung.
  • Seite 51 Motor Mount Assembly 2 Pos. Description Qty. Part number Cap Socket Bolt M2x8 80-0208 Parts from Step 42 Fix the motor mount on this side also just temporary without threadlock. Use the bolts (1) and the special washer (3) to fasten it. Threadlock will be applied in a later step. Befestigen Sie den Motorträger auch von dieser Seite vorerst nur provisorisch ohne Schraubensicherung mit den Schrauben (1) und der spezial Unterlage (3) am Chassis.

  • Seite 52: Step44: Canopy Mount Assembly

    Canopy Mount Assembly Pos. Description Qty. Part number Canopy Mount (New) 10-1011N Use medium threadlock on all screws going into metal parts. Cap Socket Bolt M2.5x16 80-2516 Verwenden Sie auf allen Cross Member 32mm 10-0023 Schrauben die in Metallteile geschraubt werden mittelfeste Spacer 2x4x7 10-5015 Schraubensicherung.

  • Seite 53: Step45: Struts Assembly

    Struts Assembly Pos. Description Qty. Part number Struts 10-1012 Use medium threadlock on all screws going into metal parts. Parts from Step 44 Verwenden Sie auf allen Schrauben die in Metallteile geschraubt werden mittelfeste Schraubensicherung. Put the struts (1) completly into the clamps. Fix them with the bolts and use threadlock now.
  • Seite 54 Tail Control Rod Assembly 1 Pos. Description Qty. Screw the tail control rod (2) into the Parts from Step 16 ball link of the tail control arm (1). The distance between the CF rod and the ball link should be about 2mm. Now Parts from Step 24 slide the delrin tail rod support over the ball link.
  • Seite 55 Tail Boom Assembly Pos. Description Qty. Parts from Step 47 Parts from Step 45 Twist the belt a quarter turn to the left, looking at the boom from the frontside. Be careful not to twist the belt more than a quarter turn. Push the tail boom into the tail boom holders and pull the belt through the belt tensioner.

  • Seite 56: Step49: Mast Lock Collar

    Mast Lock Collar Pos. Description Qty. Part number Mast Lock Collar 10-0024 Headsocket Bolt M2x6s 80-0206s Thread the bolt (2) into the mast lock collar without clamping the collar for this step. Schrauben Sie die Klemmschraube (2) vorerst nur teilweise und ohne Schraubensicherung in den Klemmring (1).
  • Seite 57 Main Shaft Assembly 1 Pos. Description Qty. Parts from Step 6 Parts from Step 48 Parts from Step 49 Slide the mast lock collar with the rim (marked red in the picture) facing towards the upper bearing block onto the main shaft. Now push the shaft through the bearings in both bearing blocks.

  • Seite 58: Step51: Main Belt Assembly

    Main Belt Assembly Pos. Description Qty. Part number Parts from Step 50 Mainbelt 60 S2M 292 98-292 To install the main belt (2), disassemble the two motor mount bolts (4) on both sides from the special washers (3). Remove the motor unit from the main frame and put the main belt around the main shaft. The motor unit will be attached back to the frame in a later step.

  • Seite 59: Step52: Gear Spacer Assembly

    Gear Spacer Assembly Pos. Description Qty. Part number Spacer Autorotation Hub 10-5014 Parts from Step 51 Pull the main rotor shaft a little bit upwards and slide the spacer for the autorotation hub (1) onto the main shaft. Be careful not to lose it in the following steps. A small drop of oil can hold the spacer on the bearing.

  • Seite 60: Step53: Main Pulley Assembly

    Main Pulley Assembly Attention! Far too much belt tension can cause unnecessary Pos. Description Qty. drag in the system and faster wearout of the bearings! Parts from Step 52 Achtung! Eine deutlich zu hoch gewählte Riemenspannung kann zu unnötig hohen Laufwiderstand und zu erhöhten Parts from Step 27 Lagerverschleiß...
  • Seite 61 RC-Equipment Pos. Description Qty. Parts from Step 53 Please use alcohol to clean and degrease the bonding surfaces. Receiver Bitte benutzen Sie Alkohol zum FBL-Unit reinigen und entfetten der Klebestellen. Mount the FBL-unit (3) on the radio board. Please using the manufacturer's recommended adhesive pad. If you are in doubt a tough and thin pad is preferable.
  • Seite 62 Servo Arm Assembly Pos. Description Qty. Use medium threadlock on all screws going into metal parts. Parts from Step 54 Verwenden Sie auf allen Schrauben die in Metallteile Parts from Step 21 geschraubt werden mittelfeste Schraubensicherung. Servoarmbolt With the swash servos in neutral position, put the servo arms (2) as close as possible to 90° to the main shaft onto the servos.
  • Seite 63 Swash Guide Pos. Description Qty. Part number Ball link M3 02-0709S Setscrew M3x15 81-0315 Swash Guide 10-2008 Preassembled by factory. Bereits vormontiert. Screw the setscrews (2) completely into the delrin swash guide (3). Turn the ball links (1) on both sides and make sure they are both about the same way in.
  • Seite 64 Swash Rods Pos. Description Qty. Part number Rod M3 18mm 10-4004 Ball link M3 02-0709s Preassembled by factory. Bereits vormontiert. Screw the ball links (2) approximately the same way on both sides onto the Rod (1). The distance between the centers of the ball link holes should be about 36.5mm, thats an overall length of 45mm.
  • Seite 65 Swash Link Assembly Pos. Description Qty. Parts from Step 55 Parts from Step 57 In this step we will marry the swash links from step 57 to the assembly from step 55. For this purpose, the balllink is clipped with the Compass logo on the outside to the ball. The linkage should move easily, which is why this should be reworked with a link sizer.
  • Seite 66 Swash Guide Assembly Pos. Description Qty. Part number Parts from Step 58 Parts from Step 56 Servo Spacer 1mm 10-1006 In this step, the swash guide from step 56 will be attached to the helicopter. The guide should run absolutely straight (picture 1). Should you find a scenario as in picture 2, you may need to underlay the servo spacers (4) with two 1mm thick servo...
  • Seite 67 Rotor Blades and Velcro Assembly Pos. Description Qty. Please use alcohol to clean and degrease the bonding surfaces. Parts from Step 59 Bitte benutzen Sie Alkohol zum Rotor Blades 350mm reinigen und entfetten der Klebestellen. Velcro about 80x30mm Hook Remove the nylon lock nuts of the blade bolt and mount the rotor blades as shown into the blade grips. A spacer should be above and below of the blade root.

  • Seite 68: Qty. Part Number

    Battery Assembly Pos. Description Qty. Part number Please use alcohol to clean and degrease the bonding surfaces. Parts from Step 59 Bitte benutzen Sie Alkohol zum Velcro 80x30mm Loop reinigen und entfetten der Klebestellen. Hook and Loop Fastener VBT270 Clean the battery (4) with alcohol and stick the loop side of a selfadhesive velcro (2) with about 80x30mm on each battery (4).
  • Seite 69 Rudder Servo Setup Pos. Description Qty. First setup the tension of the tail belt by pulling First setup the tension of the tailbelt by pulling the the boom back in the tail boom holder and tighten boom back in the tailboom-holder and tighten the the four M2.5x40 bolts.
  • Seite 70 Canopy Description Qty. Part number Use some grease (for example vaseline) on the rubber grommets for easier Parts from Step 62 mounting. Rubber Grommets 10-6010 Benutzen Sie etwas Fett (zum Beispiel Vaseline) um die Gummitüllen leichter Canopy Mount 06-0851 auf die Haubenhalter drücken zu können. Canopy 10-6000 First, push the two rubber grommets (2) through the holes in...
  • Seite 71 Wiring Pos. Description Qty. Parts from Step 63 Never use RC-components with damaged wires. Check all wires for damaged insolation and breakage. Control all servo connectors for a tight fit and be sure no wire is loose in the connector! All wires must be protected against damage through sharp edges of the carbon frame and metal parts.
  • Seite 72 Control Check Mode 1 Mode 2 Aileron Roll Elevator Nick Pitch Pitch Rudder Heckrotor Move the transmitter sticks as shown and compare the responses of the helicopter with those in the graphics. For example: If you fly mode 2 and give aileron to the right (top transmitter graphics - red stick), then should the swashplate tilt to the right (top helicopter - graphics - red arrow).
  • Seite 73 Flybarless-Setup For easy measurement of the pitch angles during the setup, please use something long and straight (like a flybar or CF-Tube) and put it on the bearing block behind the main rotor shaft (watch the picture). With this trick you can easily use a normal pitch gauge to check the collective and cyclic angles.
  • Seite 74 Flybarless-Setup Hitec/Futaba Aileron Elevator ESC Signal Gyro Gain Aux2 Motor-Wire Rudder Motor-Kabel Pitch Aux1 Reciever Empfänger Please read the manual of your FBL-Unit, Please read the manual of your FBL-Unit, transmitter and receiver very attentively. transmitter and receiver very attentively. Each FBL-Unit is different! Follow the Each FBL-Unit is different! Follow the manuals step by step and ask for help if you...

  • Seite 75: Picture

    Flybarless-Setup One of the most important points is the Movement of the helicopter direction of the gyros. We start with the Bewegung des Hubschraubers aileron. Watch the helicopter from the front. Tilt the helicopter to the right (blue arrow - spinning clockwise), the swash- plate must tilt to the left (red arrow - spinning counter-clockwise) as shown in the picture.
  • Seite 76 Flybarless-Setup We continue with the elevator gyro. Watch the helicopter from the side. Tilt the helicopter to the right (blue arrow - spinning clockwise), the swash plate must tilt to the left (red arrow - spinning counter- clockwise) as shown in the picture. Tilt the helicopter to the left, the swash plate must tilt to the right as shown in the picture.
  • Seite 77 Flybarless Setup Set the endpoints of the tail servo to both limits A and B Blades / Headspeed 1600 - 2500 RPM 2400 - 3800 RPM (distance between slider and bearing). The chart Compass 65mm A = 11mm / B = 1mm A = 10mm / B = 1mm gives the value for different blades and rotor head rpm.

  • Seite 78: Bild

    Rotation Check When the main rotor spins clockwise (blue arrow) the tail blades should turn counter clockwise (red arrow) watching the tail rotor from the right side. If not, the belt is twisted and has to be corrected (check step 48 to do this). sure that the main rotor and tail rotor blades are installed in the right direction.
  • Seite 79 COMPASS MODEL (HK) LIMITED www.compassmodel.com...
