Connection board electronics compact and remote

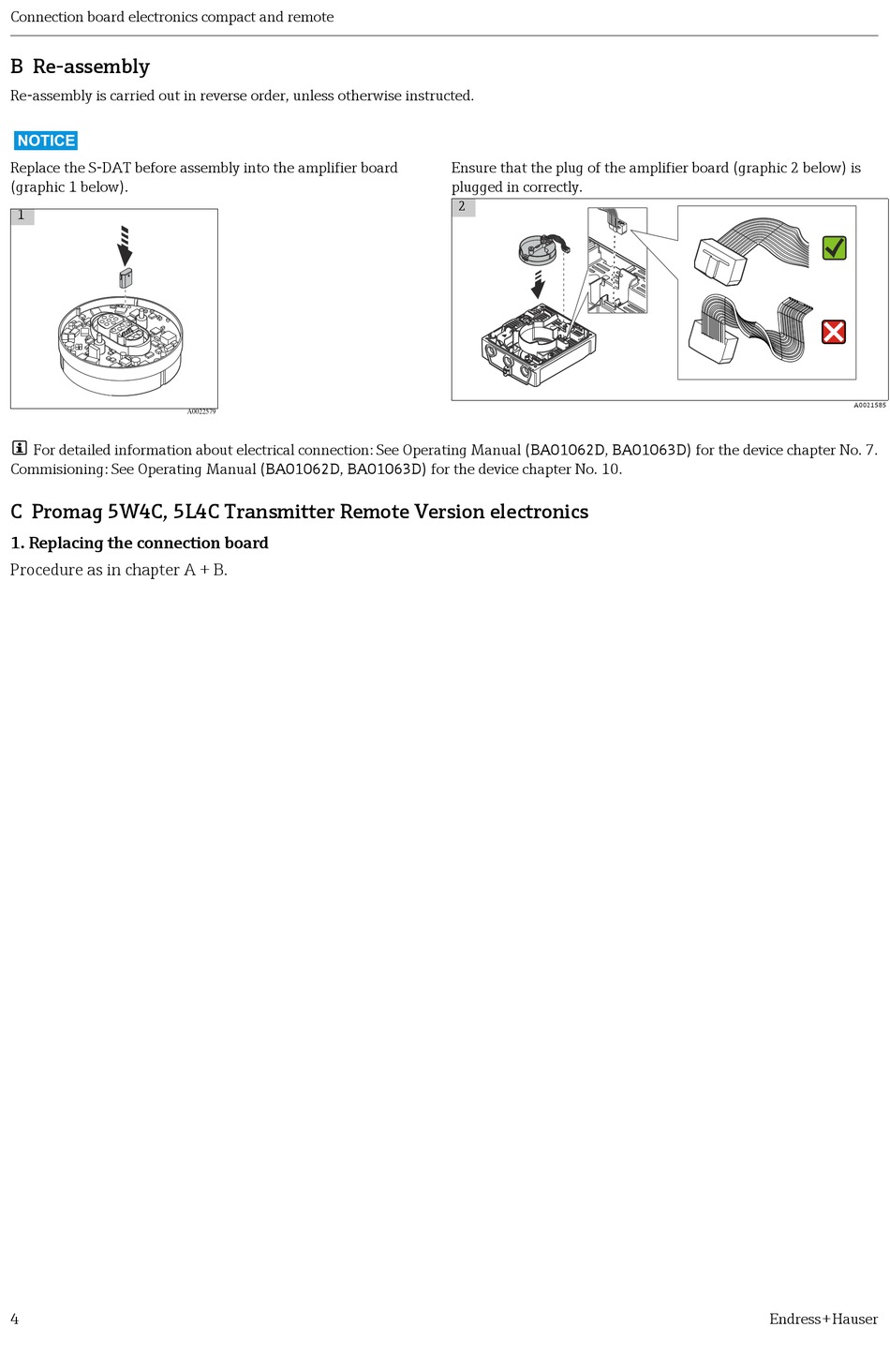

B Re-assembly
Re-assembly is carried out in reverse order, unless otherwise instructed.
NOTICE
Replace the S-DAT before assembly into the amplifier board
(graphic 1 below).
1

For detailed information about electrical connection: See Operating Manual (BA01062D, BA01063D) for the device chapter No. 7.
Commisioning: See Operating Manual (BA01062D, BA01063D) for the device chapter No. 10.
C Promag 5W4C, 5L4C Transmitter Remote Version electronics
1. Replacing the connection board
Procedure as in chapter A + B.
4
A0022579
Ensure that the plug of the amplifier board (graphic 2 below) is
plugged in correctly.
2
A0021585
