RF Rx SW868/915-4S
//
Montage- und Anschlussanleitung / Funkempfänger
Mounting and wiring instructions / Radio receiver
Instructions de montage et de câblage / Récepteur radio
Istruzioni per il montaggio e per il collegamento / Ricevitore radio
Instruções de montagem e instalação / Receptor de rádio freqüência
Инструкции Монтаж и Коммутация / Приемник радиосигнала
English
Operation LED 1 LED MD
mode
Wiping
flashes flashes
function
slowly slowly
Additional
functions
Battery moni-
aus (LED blinkt
toring
3 blinkt) langsam
Status moni-
aus (LED blinkt
toring
4 blinkt) langsam
Notices
Are only one or both aditional functions activated, no further wireless
transmitter can be taught in.
Operation mode wiping contact
- Chose or select wiping function. MD LED flashes
- The wiping time is increased by 1 s with each flashing of the LED.
- Count the impulses oft he flashing LED and confirm by achieved time
by pressing the LRN pushbutton.
- In order to change the wiping contact start selection of operation
mode and select wiping contact again.
Operation mode status monitoring
- After selection of status monitoring the MD LED flashes every second
- The LEDs 1 - 4 indicate the adjustable status times.
- The display of the LED changes every 5 s (see table).
- If the required LED combination is indicated, press the LRN pushbut-
ton for 1 s. The desired operation mode is now activated.
- Without confirmation of the selection the standard value of 10 s is
set.
Status signal LED1 LED2 LED3
time
10 s on off
100 s on on
1000 s on on
10.000 s on on
Function: If no status information is given by the taught-in switches,
relay K4 automatically gives the alarm after 2.2-time of the status
time. Attention! Please secure that the taught-in wireless transmitter
is set to the correct status signal.
Teaching in one switch
- press push-button LRN approx. 1 s
- LED MD flashes slowly (2 Hz)
Function
Wiping function, contact au-
tomatically deenergises after
the set time
Relay K3 indicates under-
voltage oft he taught in and
battery-powered switches/
transmitters.
Relay K4 indicates satus
error; activate function only
in combination »switch with
status signal«.
LED4 LED MD
off off flashes every s
off off flashes every s
on off flashes every s
on on flashes every s
- press push-button SEL for channel seletion
- actuate switch/command device to be taught in
- the LED of the corresponding channel flashes short
- to leave teach-in mode press push-button LRN for approx. 1 s
- LED MD is on
Deleting one switch
- press push-button LRN for 5 s until LED MD flashes fast
- press push-button SEL for channel seletion
- actuate switch/command device to be deleted
- the LED of the corresponding channel flashes for short time
- press push-button LRN for approx. 1 s to leave delete mode
Inverse teaching in of one switch
- procedure like teach-in but switch must be actuated before
procedure is started by pressing LRN
Deleting all switches
- press push-button LRN for 5 s
- LED MD flashes fast (5 Hz)
- LED 1 is on
- release push-button LRN
- repress push-button LRN for 5 s until LED MD is off
- release push-button LRN
- Operation mode was set back to standard
- LED MD is on and LED 1 flashes fast

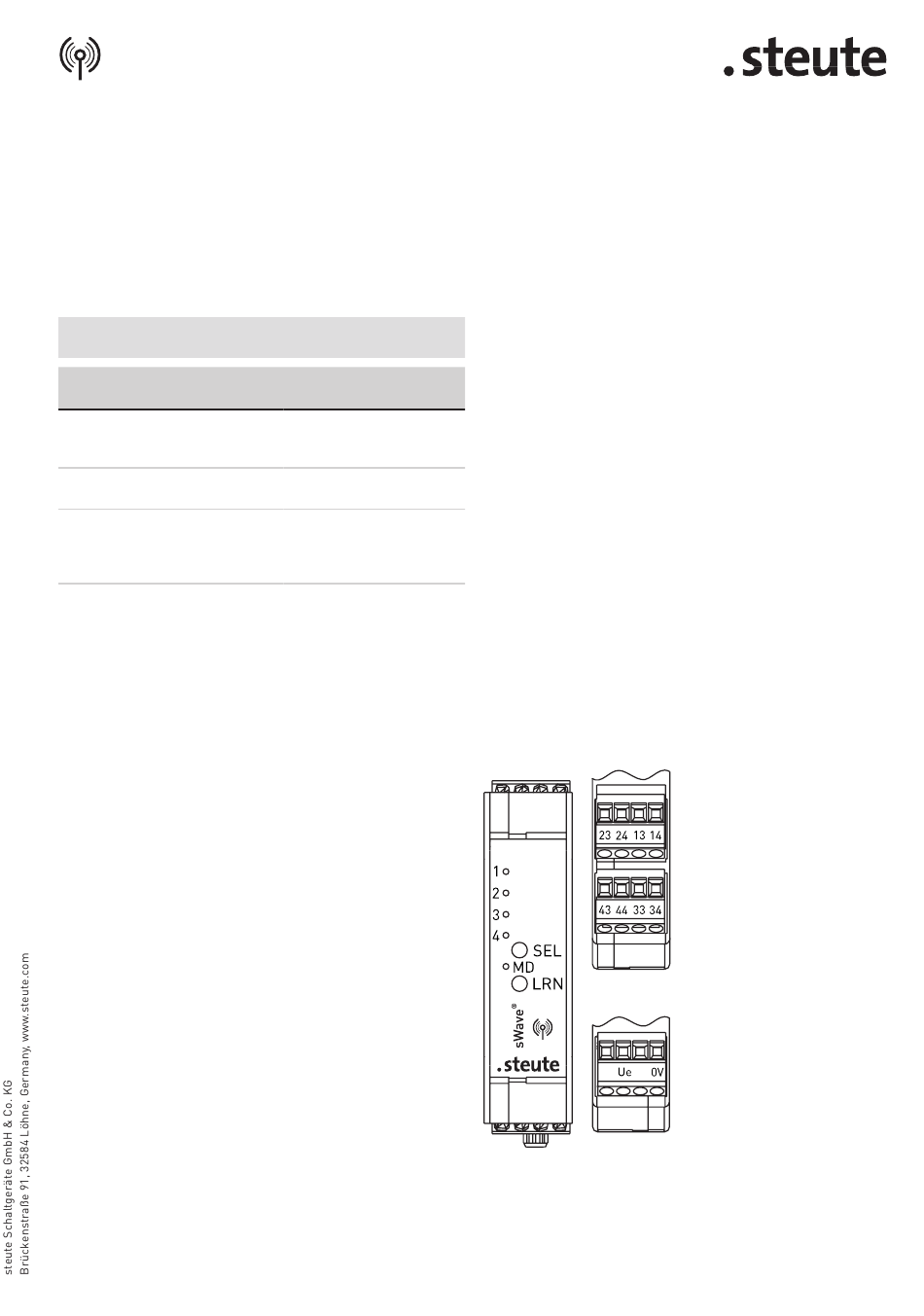

SMA Antenna socket
13-14 K1 Relay
23-24 K2 Relay
33-34 K3 Relay
43-44 K4 Relay
1 ... 4 Status display of the
outputs
SEL SELECT button
MD Mode LED
LRN Teach-in button
U e , 0V Voltage supply
