Seite 3

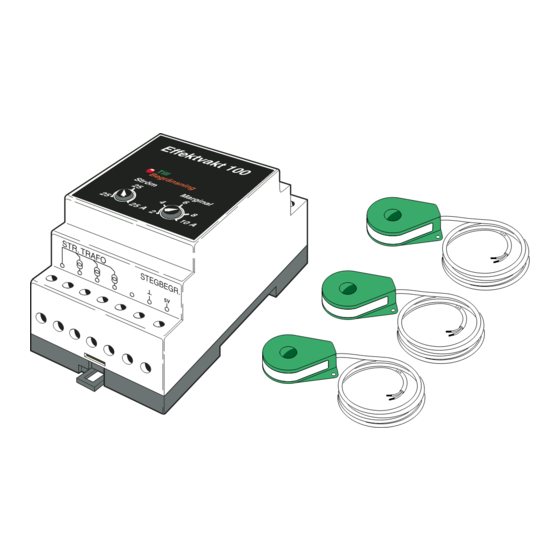

Elanslutning Allmänt Strömtransformatorer EBV 200 är en belastningsvakt för bortkoppling av För att mäta strömmen ska en strömtransformator effekt, överstigande den på belastningsvakten inställ- monteras på vardera till elcentralen inkommande fas- da effekten. EBV 200 består av modulen ”Effektvakt ledare. Denna montering sker lämpligen i elcentralen.
Seite 4
VB-Fram 49 (50) °C Varmvatten 51 °C 1 2 3 4 30.1 30.2 Effektvakt 100 Strömtransformatorer Effektvakt 100 OBS! Elinstallationen av detta tillbehör skall utföras av behörig elinstallatör. Elektrisk installation och lednings- dragning skall utföras enligt gällande bestämmelser. EBV 200...
General The current control “Ström” is set to the value of the EBV 200 is a load monitor used to disconnect output main fuse. When the current output exceeds this val- that exceeds the output set on the load monitor. EBV...
Seite 6
The blue conductor of the 2-wire cable is connected to the relay card's (29) terminal block (30) terminal posi- tion 1. The brown conductor of the 2-wire cable is connected to the relay card's (29) terminal block (30) terminal position 2. “Connecting placement FIGHTER 1210/1215”. EBV 200...
Seite 7
VB-Fram 49 (50) °C Varmvatten 51 °C 1 2 3 4 30.1 30.2 Load monitor 100 Strömtransformatorer Current transformers Effektvakt 100 NOTE! The electrical installation must be carried out by a qualified electrician and in accordance with the stipulations in force. EBV 200...
Abschalten/Reduzieren von Leistung, sollte diese den Nennwert der Hauptsicherung eingestellt. Überschrei- auf dem Belastungsschutz voreingestellten Leistungs- tet die Stromentnahme diesen Wert, beginnt der Über- wert überschreiten. Der EBV 200 besteht aus dem lastungsschutz die Leistung der Heizkassette zu redu- Modul "Leistungswache100" sowie drei Stromwand- zieren.
Seite 9
Der blaue Leiter des 2-poligen Kabels ist auf der Relaiskarte (29) an Klemmleiste (30) in Position "1" anzuklemmen. Der braune Leiter des 2-poligen Kabels ist auf der Relaiskarte (29) an Klemmleiste (30) in Position "2" anzuklemmen. Siehe "Platzierung und Anschluss im FIGHTER 1210/1215". EBV 200...
Seite 10
Leistungswache 100 VB-Fram 49 (50) °C Varmvatten 51 °C 1 2 3 4 30.1 30.2 Leistungswache 100 Strömtransformatorer Stromwandler Effektvakt 100 Achtung! Die Elektro-Installation dieses Zubehöres ist gemäß geltenden Bestimmungen von einem behörigen Elektrofachmann auszuführen, oder unter dessen Aufsicht. EBV 200...
