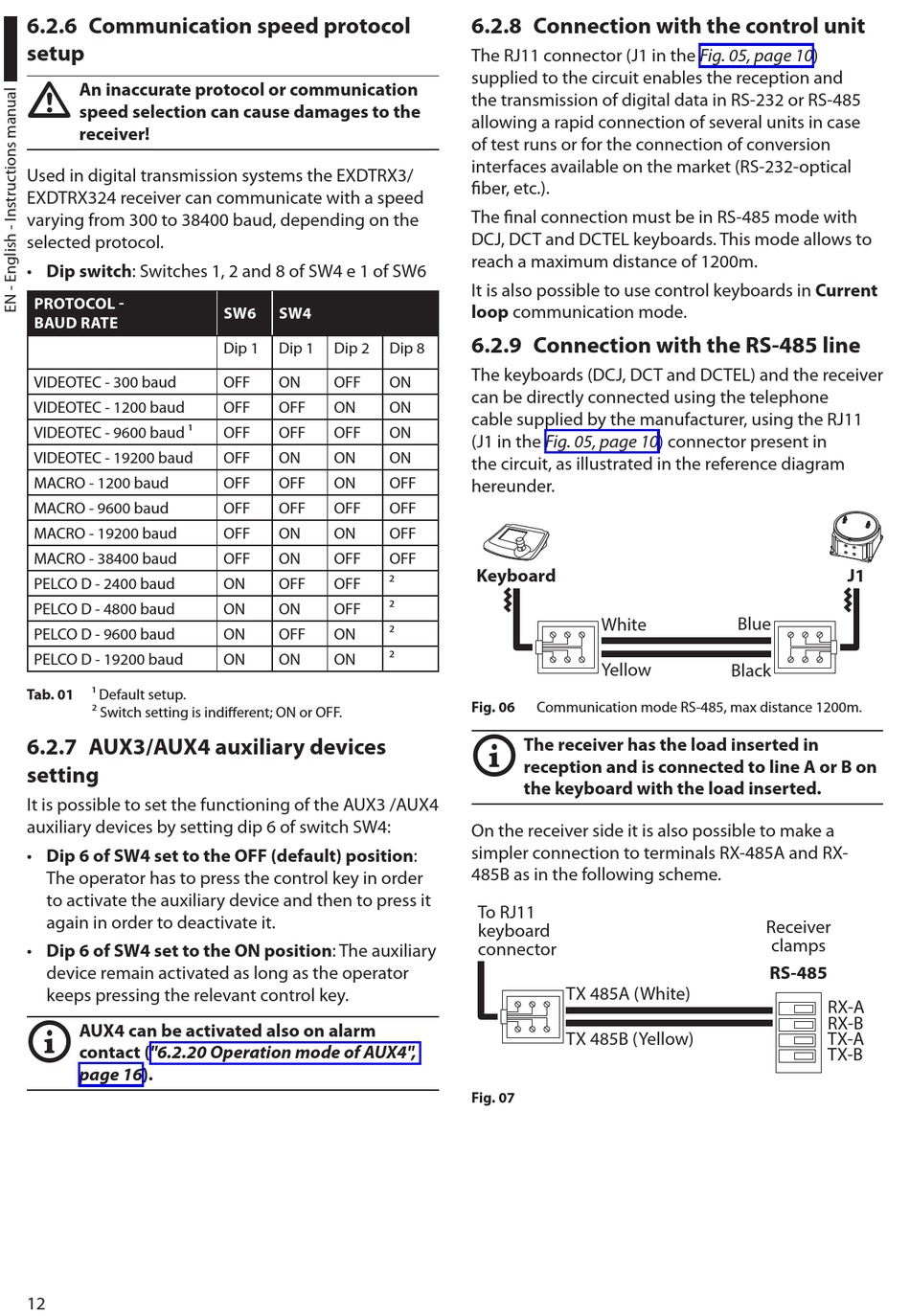

6.2.6 Communication speed protocol
setup
h An inaccurate protocol or communication
speed selection can cause damages to the
receiver!
Used in digital transmission systems the EXDTRX3/
EXDTRX324 receiver can communicate with a speed
varying from 300 to 38400 baud, depending on the
selected protocol.
• Dip switch: Switches 1, 2 and 8 of SW4 e 1 of SW6
PROTOCOL -
BAUD RATE
VIDEOTEC - 300 baud
VIDEOTEC - 1200 baud
VIDEOTEC - 9600 baud ¹
VIDEOTEC - 19200 baud
MACRO - 1200 baud
MACRO - 9600 baud
MACRO - 19200 baud
MACRO - 38400 baud
PELCO D - 2400 baud
PELCO D - 4800 baud
PELCO D - 9600 baud
PELCO D - 19200 baud
Tab. 01
¹ Default setup.
² Switch setting is indifferent; ON or OFF.
6.2.7 AUX3/AUX4 auxiliary devices
setting
It is possible to set the functioning of the AUX3 /AUX4
auxiliary devices by setting dip 6 of switch SW4:
• Dip 6 of SW4 set to the OFF (default) position:
The operator has to press the control key in order
to activate the auxiliary device and then to press it
again in order to deactivate it.
• Dip 6 of SW4 set to the ON position: The auxiliary
device remain activated as long as the operator
keeps pressing the relevant control key.
AUX4 can be activated also on alarm
j
contact ("6.2.20 Operation mode of AUX4",
page 16).
12
SW6 SW4
Dip 1 Dip 1 Dip 2 Dip 8
OFF ON OFF ON
OFF OFF ON ON
OFF OFF OFF ON
OFF ON ON ON
OFF OFF ON OFF
OFF OFF OFF OFF
OFF ON ON OFF
OFF ON OFF OFF
ON OFF OFF ²
ON ON OFF ²
ON OFF ON ²
ON ON ON ²

6.2.8 Connection with the control unit

The RJ11 connector (J1 in the Fig. 05, page 10)
supplied to the circuit enables the reception and
the transmission of digital data in RS-232 or RS-485
allowing a rapid connection of several units in case
of test runs or for the connection of conversion
interfaces available on the market (RS-232-optical
fiber, etc.).
The final connection must be in RS-485 mode with
DCJ, DCT and DCTEL keyboards. This mode allows to
reach a maximum distance of 1200m.
It is also possible to use control keyboards in Current
loop communication mode.

6.2.9 Connection with the RS-485 line

The keyboards (DCJ, DCT and DCTEL) and the receiver
can be directly connected using the telephone
cable supplied by the manufacturer, using the RJ11
(J1 in the Fig. 05, page 10) connector present in
the circuit, as illustrated in the reference diagram
hereunder.
Keyboard
White
Yellow
Fig. 06 Communication mode RS-485, max distance 1200m.
j The receiver has the load inserted in
reception and is connected to line A or B on
the keyboard with the load inserted.
On the receiver side it is also possible to make a
simpler connection to terminals RX-485A and RX-
485B as in the following scheme.
To RJ11
keyboard
connector
TX 485A (White)
TX 485B (Yellow)
Fig. 07
J1
Blue
Black
Receiver
clamps
RS-485
RX-A
RX-B
TX-A
TX-B
