Control of the operating data on the rating plate

Before installing the unit, control if the goods supplied correspond to the required specifications by examining
the rating plates, according to the section Operating data on the rating plate.
Never make alterations or connections not provided for in the present manual: the use of unsuitable devices can lead
to serious risks for the safety of the personnel and the security of the plant.

Dip-switches configuration

The configuration phase predisposes the receiver to optimal running, according to system requirements.
Before installation please set:
• Receiver identification number
• Communication speed (baudrate)
• Insertion of termination resistance for RS485

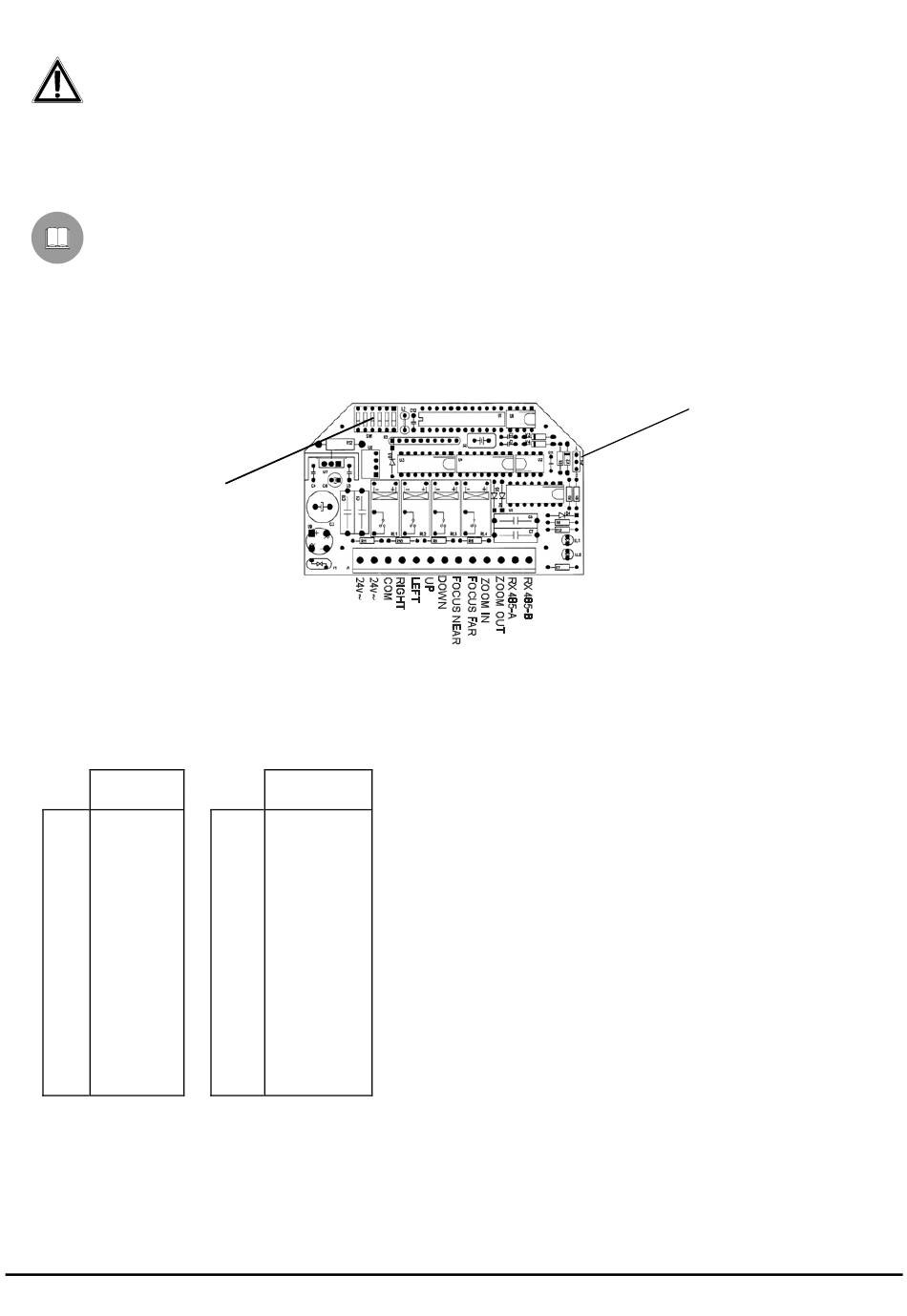

Dip-switch of
configuration

Setting the receiver identification number

- make sure you have cut off the power supply
- configure the dip-switch according to the following table:
DIP-SWITCH
12345
01 +----
02 -+---
03 ++---
04 --+--
05 +-+--
06 -++--
07 +++--
08 ---+-
09 +--+-
10 -+-+-
11 ++-+-
12 --++-
13 +-++-
14 -+++-
15 ++++-
16 ----+

Setting the communication speed

- make sure you have cut off the power supply
- configure the dip-switch SW1 according to the following table:
dip swich 6: OFF 9600 baud
ON 1200 baud
DIP-SWITCH
12345
17 +---+
18 -+--+
19 ++--+
20 --+-+
21 +-+-+
22 -++-+
23 +++-+
24 ---++
25 +--++
26 -+-++
27 ++-++
28 --+++
29 +-+++
30 -++++
31 +++++
32 -----
Page 4
Jumper JP1
