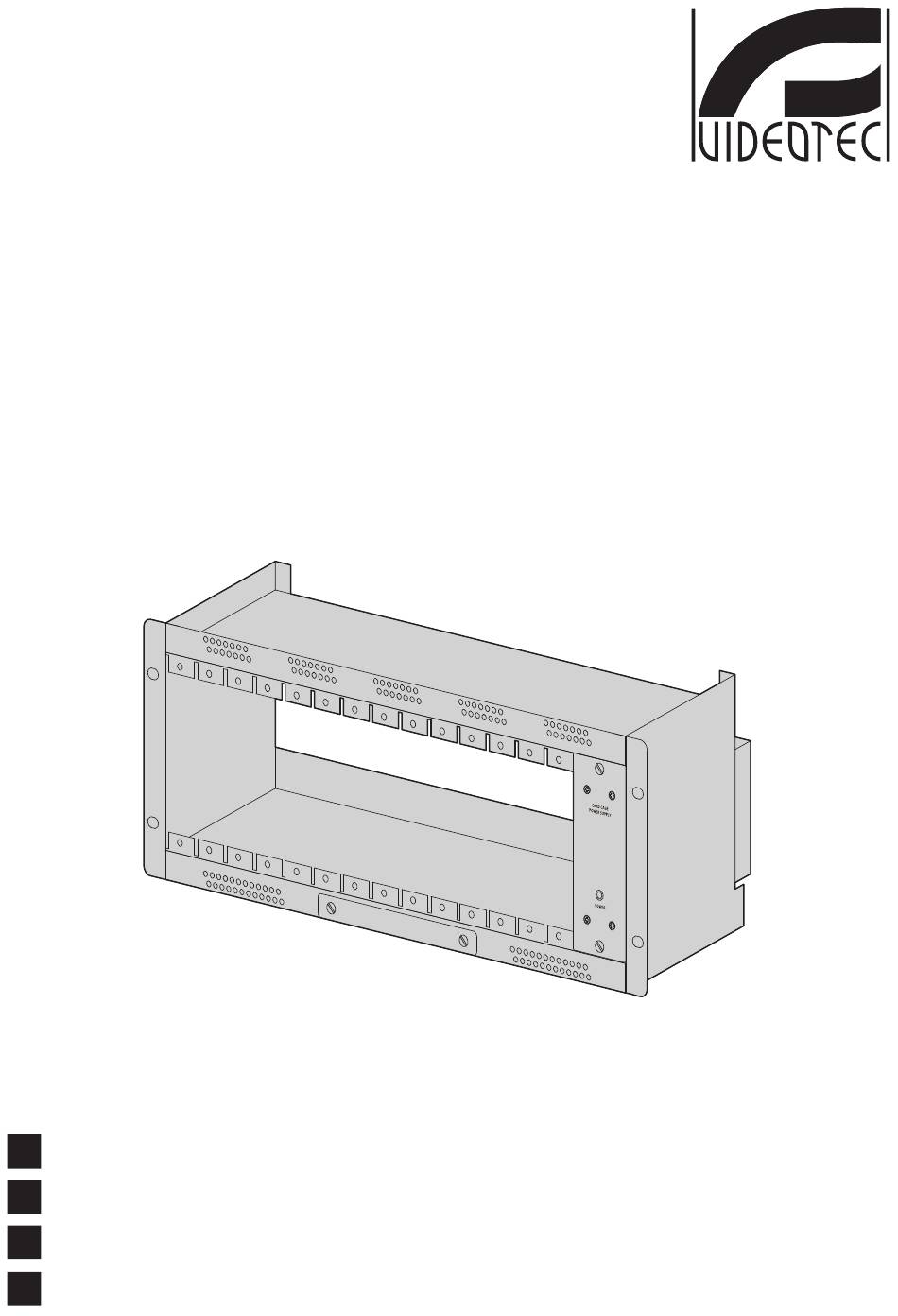

FORACK Powered rack for receivers/transmitters on optical fibre English - Instructions manual Italiano - Manuale di istruzioni Français - Manuel d’instructions Deutsch - Bedienungslanleitung...
Seite 3
FORACK Powered rack for receivers/transmitters on optical fibre English - Instructions manual...
Contents ENGLISH 1 About this manual ......................3 1.1 Typographical conventions ..........................3 2 Notes on copyright and information on trademarks ..........3 3 Safety rules........................3 4 Identification ........................3 4.1 Product description and type designation..................... 3 4.2 Product markings ..............................3 5 Preparing the product for use ..................
1 About this manual • The device must be installed only and exclusively by qualified technical personnel. Before installing and using this unit, please read this • Before any technical work on the appliance, manual carefully. Be sure to keep it handy for later disconnect the power supply.
Keep the packaging in case you need to send the product for repairs. Power the rack using the supplied power cable. Check the contents to make sure they correspond with the list of materials as below: • FORACK unit Connector CARD CAGE • Power cables POWER SUPPLY Fuse • Instructions manual...
7 Troubleshooting 9 Technical data 7.1 Replacing the fuse 9.1 General Supplied with power cable with plug for EU, UK, USA Maintenance must only be performed on markets the rack when the power is disconnected and with the disconnecting device open. 9.2 Mechanical A 1.25A, 250Vac slow blow fuse is found on the rear Dimensions (WxHxL): 190x175x482mm...
Seite 9
FORACK Rack alimentato per ricevitori/trasmettitori su fibra ottica Italiano - Manuale di istruzioni...
Seite 10
Sommario ITALIANO 1 Informazioni sul presente manuale ................3 1.1 Convenzioni tipografiche ............................. 3 2 Note sul copyright e informazioni sui marchi commerciali ........3 3 Norme di sicurezza ......................3 4 Identificazione ....................... 3 4.1 Descrizione e designazione del prodotto ....................... 3 4.2 Marcatura del prodotto ............................
1 Informazioni sul presente • L'installazione e la manutenzione del dispositivo deve essere eseguita solo da personale tecnico manuale qualificato. • Prima di effettuare interventi tecnici Prima di installare e utilizzare questa unità, leggere sull'apparecchio togliere l'alimentazione elettrica. attentamente questo manuale. Conservare questo • Non utilizzare cavi di alimentazione con segni di manuale a portata di mano come riferimento futuro.
Controllare che il contenuto sia rispondente alla lista Collegare l’unità al circuito di terra. del materiale sotto indicata: Alimentare il rack utilizzando il cavo di alimentazione • Unità FORACK fornito in dotazione. • Cavi di alimentazione • Manuale di istruzioni 5.2 Smaltimento in sicurezza dei...
7 Troubleshooting 9 Dati tecnici 7.1 Sostituzione fusibile 9.1 Generale Fornito con cavi di alimentazione con spine per i Eseguire le operazioni di manutenzione del mercati EU, UK, USA rack soltanto in assenza di alimentazione e con il dispositivo di sezionamento aperto. 9.2 Meccanica Nel pannello posteriore dell’alimentatore del rack Dimensioni (WxHxL): 190x175x482mm...
Seite 15
FORACK Rack alimenté pour récepteurs/transmetteurs sur fibre optique Français - Manuel d’instructions...
Seite 16
Sommaire FRANÇAIS 1 À propos de ce mode d’emploi ..................3 1.1 Conventions typographiques ..........................3 2 Notes sur le copyright et informations sur les marques de commerce ..... 3 3 Normes de securité ......................3 4 Identification ........................3 4.1 Description et désignation du produit ......................
1 À propos de ce mode • L’installation et l’entretien du dispositif doivent être exclusivement être effectués par un personnel d’emploi technique qualifié. • Sectionner l’alimentation électrique avant toute Avant d’installer et d’utiliser cet appareil, veuillez intervention technique sur l’appareil. lire attentivement ce mode d’emploi.
6.1 Installation Contrôler que le contenu correspond à la liste matériel indiquée ci-dessous: Brancher l'unité au circuit de terre. • Unité FORACK Alimenter le rack en utilisant le câble d'alimentation fourni en dotation. • Câbles d'alimentation • Manuel d'instructions 5.2 Élimination sans danger des...
7 Troubleshooting 9 Données techniques 7.1 Remplacement du fusible 9.1 Généralités Fourni avec câble d’alimentation avec fiche pour les Effectuer les opérations d'entretien du rack marchés de l’UE, le Royaume-Uni, Etats-Unis seulement en l'absence d'alimentation et avec le dispositif de sectionnement ouvert. 9.2 Mécanique Dans le panneau postérieur de l'alimentation du rack, Dimensions (WxHxL): 190x175x482mm...
Seite 21
FORACK Rack mit Stromversorgung für Empfänger/Sender über Glasfaserkabel Deutsch - Bedienungslanleitung...
Seite 22
Inhaltsverzeichnis DEUTSCH 1 Allgemeines ........................3 1.1 Schreibweisen ................................3 2 Anmerkungen zum Copyright und Informationen zu den Handelsmarken ..... 3 3 Sicherheitsnormen ......................3 4 Identifizierung ....................... 3 4.1 Beschreibung und Bezeichnung des Produktes ................... 3 4.2 Kennzeichnung des Produkts..........................3 5 Vorbereitung des Produktes auf den Gebrauch............
1 Allgemeines • Die Installation und Wartung der Vorrichtung ist technischen Fachleuten vorbehalten. Lesen Sie bitte vor dem Installieren und dem • Vor technischen Eingriffen am Gerät muss die Verwenden dieses Gerätes die Bedienungsanleitung Stromversorgung unterbrochen werden. sorgfältig durch. Bewahren Sie sie zum späteren • Es dürfen keine Versorgungskabel mit Verschleiß- Nachschlagen auf.
Rack mit dem mitgelieferten Kabel an die Bewahren Sie die Verpackung auf für den Fall, dass Stromversorgung anschließen. das Produkt zur Reparatur eingesendet werden muss. Prüfen Sie, ob der Inhalt mit der nachstehenden Materialliste übereinstimmt: • Einheit FORACK Verbinder CARD CAGE • Stromversorgungskabel POWER SUPPLY Sicherung • Bedienungslanleitung...
7 Troubleshooting 9 Technische Daten 7.1 Austausch der 9.1 Allgemeines Schmelzsicherung Im Lieferumfang Stromkabel mit Stecker für EU-, UK-, USA-Märkten Wartungsarbeiten am Rack nur bei 9.2 Mechanik abgeschalteter Stromversorgung und abgeschalteter Trennvorrichtung Abmessungen (WxHxL): 190x175x482mm ausführen. Slots verfügbar: 14 An der Rückseite des Netzteils des Racks befindet sich 9.3 Elektrik eine träge Sicherung mit 1,25A, 250Vac.
