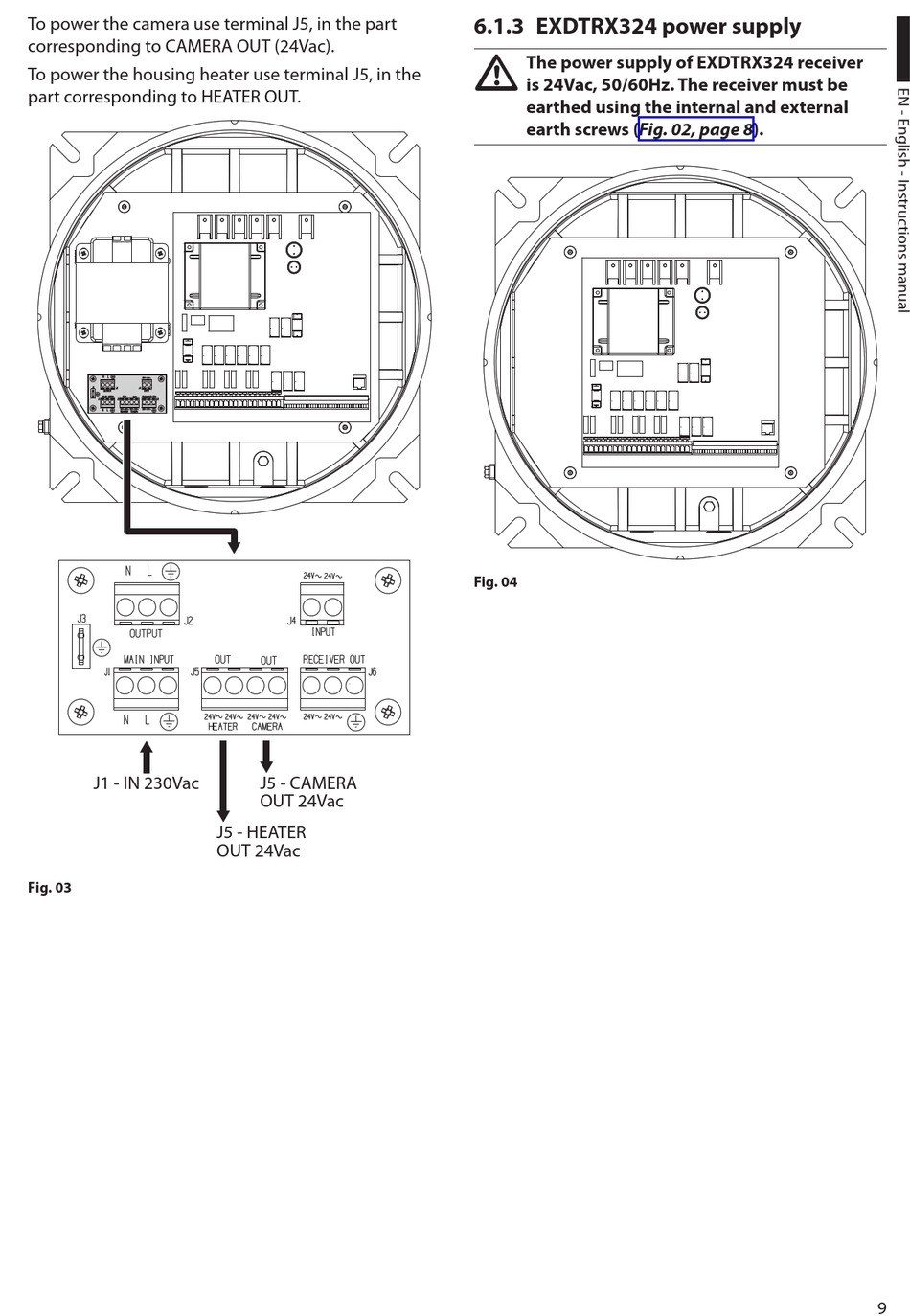

To power the camera use terminal J5, in the part
corresponding to CAMERA OUT (24Vac).
To power the housing heater use terminal J5, in the
part corresponding to HEATER OUT.
J1 - IN 230Vac
Fig. 03
J5 - CAMERA
OUT 24Vac
J5 - HEATER
OUT 24Vac

6.1.3 EXDTRX324 power supply

h The power supply of EXDTRX324 receiver
is 24Vac, 50/60Hz. The receiver must be
earthed using the internal and external
earth screws (Fig. 02, page 8).
Fig. 04
