LAUNCH Creader 619 Schnellstartanleitung

Creader 619

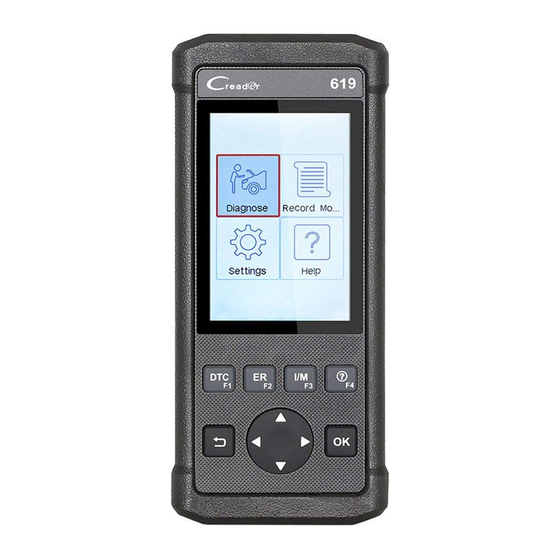

Creader 619 Handset
(To connect to the vehicle with OBD2 DLC.)
(Indicates test results.)
Erase Button*1
(To clear the diagnostic trouble codes.)
DTC Button*1
(To read the diagnostic trouble codes.)
ESC Button
(To return to the previous screen.)
Memory Card Slot
(To insert the memory card to update your tool.)
USB Port
(To update your tool via USB cable.)
Notes:
 The buttons marked with * indicate the function hot keys(namely, F1, F2, F3 and F4) and only apply to Diagnostics.
All pictures illustrated herein are only for reference. This Quick Start Guide is subject to change without prior written notice.
Quick Start Guide
DB15 Connector
LCD Screen
(To connect the vehicle's DLC and the tool.)
(Quick access to I/M readiness function.)
Help Button*1
(Provides detailed descriptions/tips for diagnostics.)
OK Button
(Confirms the current operation.)
Selection Button
( : To select different items.
Up/Down
Left/Right : To return /advance to the previous/next page.)
L AUNCH
Diagnostic Cable
I/M Button*1
EN
