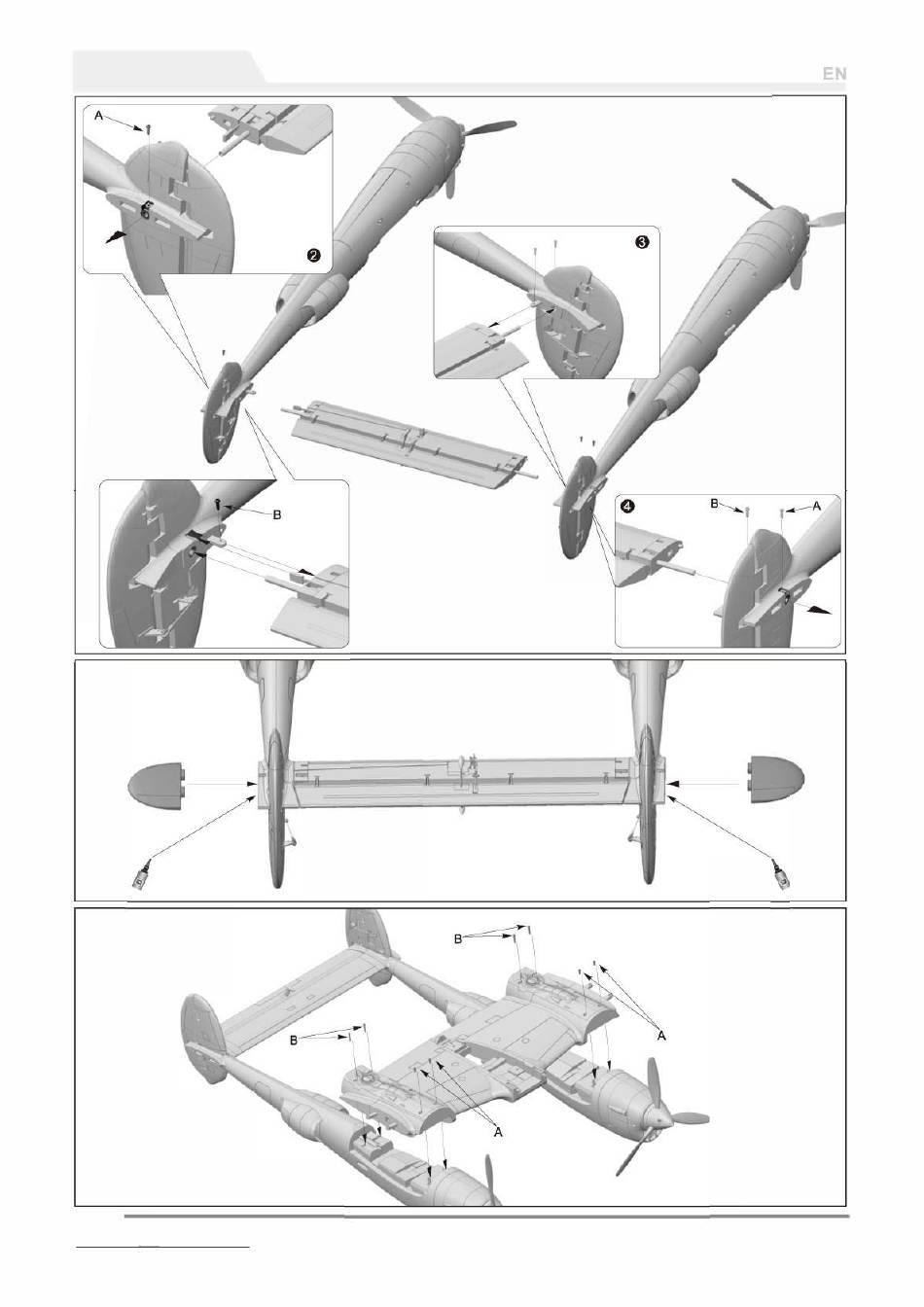

Assembly
A - Screw (PA3x10mm 4pcs)
B - Screw (PA3x20mm 4pcs)
Use the 8 screws to secure
the wing center section to
the left & right booms.
When installing, arrange the fuselage
extension wires through the slot on the
underside of the main wing center
section .
• PliqhtrJ!J!!.
0
A - Screw (PT3x10mm 2pcs)
B - Screw (PA3x10mm 2pcs)
Insert the horizontal tail on the left & right
booms, and secure it with screws as
shown in the diagrams.
Use glue to secure the ou ter horizontal tail pieces.
Step 1
Step2
Step 3
P-38L LIGHTNING
ll•m Na.: FLW:ID1
