Landing Gear Assembly
Nose Gear Assembly

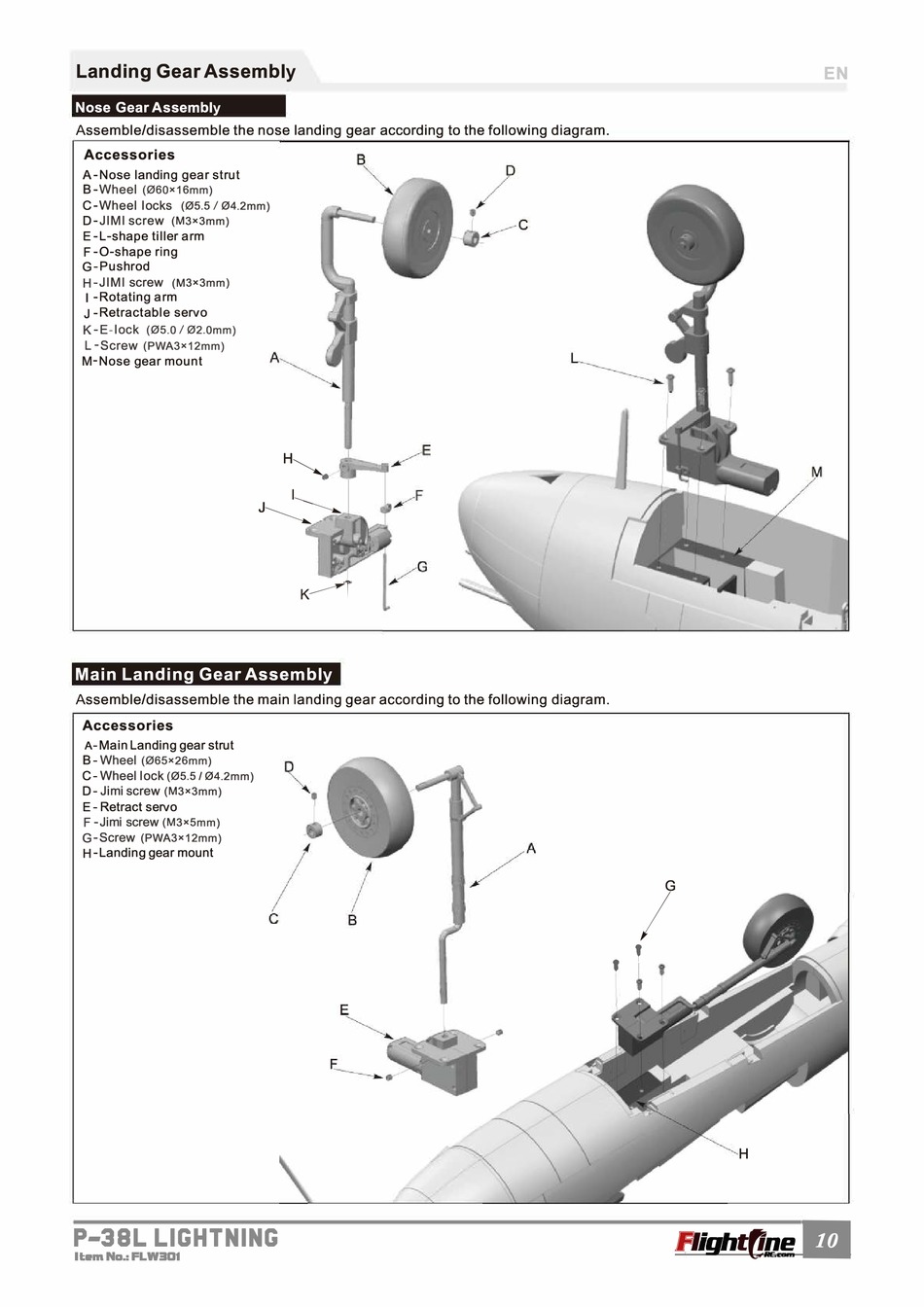

Assemble/disassemble the nose landing gear according to the following diagram.
Accessories
A-Nose landing gear strut
B-Wheel (060x16mm)
C-Wheel locks (05.5 / 04.2mm)
D-JIMI screw (M3x3mm)
E-L-shape tiller arm
F -0-shape ring
G-Pushrod
H-JIMI screw (M3x3mm )
I -Rotating arm
J - Retractable servo
K-E-lock (05.0 / 02.0mm)
L - Screw (PWA3x12mm)
M - Nose gear mount
Main Landing Gear Assembly
Assemble/disassemble the main landing gear according to the following diagram.
Accessories
A-Main Landing gear strut
B-Wheel (065x26mm)
C-Wheel lock (05.5 / 04.2mm)
D-Jimi screw (M3x3mm)
E-Retract servo
F -Jimi screw (M3x5mm)
G-Screw (PWA3x12mm)
H-Landing gear mount
