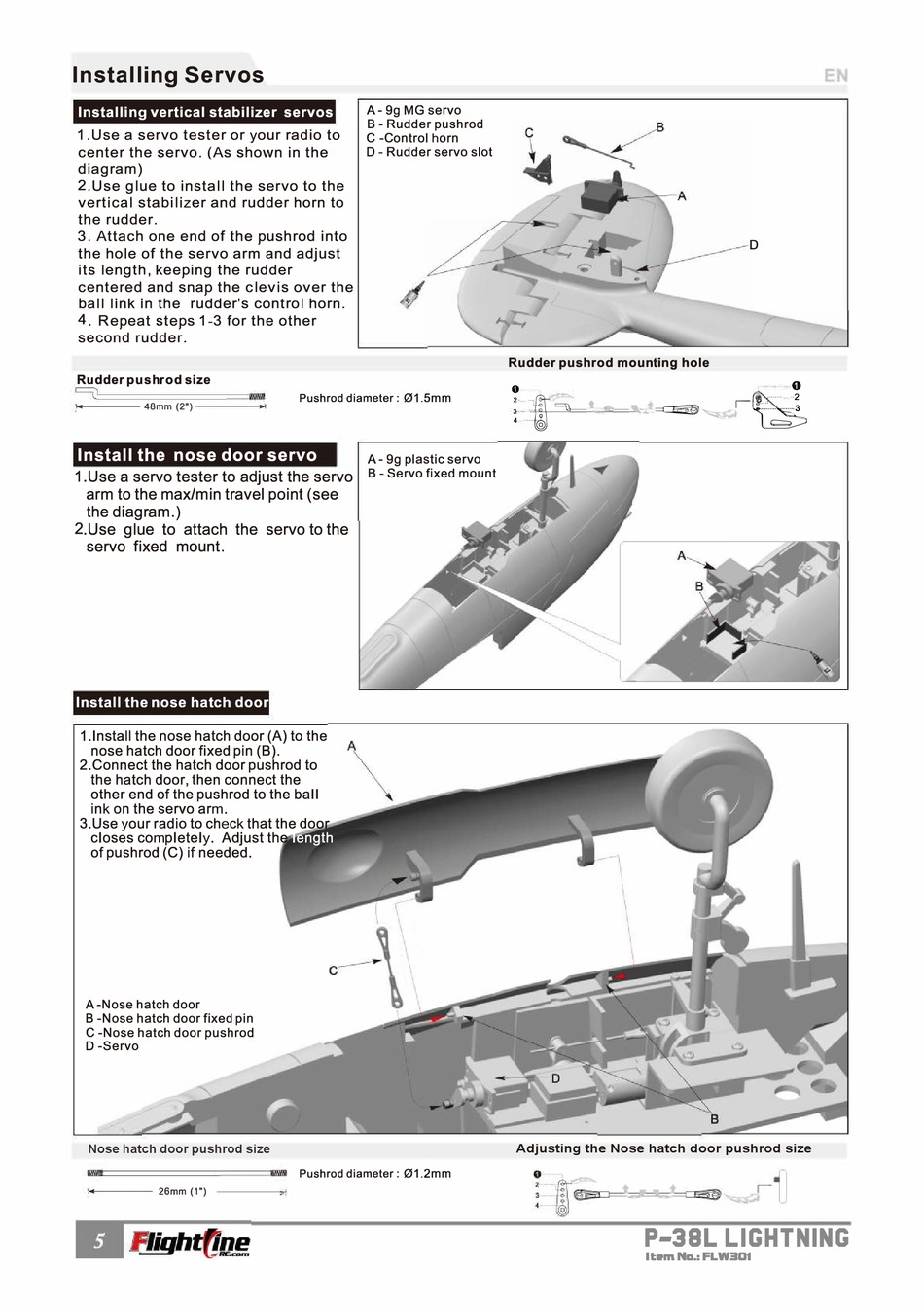

Installing Servos
Installing vertical stabilizer servos
1.Use a servo tester or your radio to
center the servo. (As shown in the
diagram)
2.Use glue to install the servo to the
vertical stabilizer and rudder horn to
the rudder.
3. Attach one end of the pushrod into
the hole of the servo arm and adjust
its length, keeping the rudder
centered and snap the clevis over the
ball link in the rudder's control horn.
4. Repeat steps 1-3 for the other
second rudder.
Rudder push rod size
14----- 48mm (2") -------.1
Install the nose door servo
1.Use a servo tester to adjust the servo
arm to the max/min travel point (see
the diagram.)
2.Use glue to attach the servo to the
servo fixed mount.
Install the nose hatch door
1.lnstall the nose hatch door (A) to the
nose hatch door fixed pin (B).
2.Connect the hatch door pushrod to
the hatch door, then connect the
other end of the pushrod to the ball
ink on the servo arm.
3.Use your radio to check that the door
closes completely. Adjust the
of pushrod (C) if needed.
A -Nose hatch door
B -Nose hatch door fixed pin
C -Nose hatch door push rod
D-Servo
Nose hatch door pushrod size
1+---- 26mm (1")
A- 9g MG servo
B - Rudder push rod
C -Control horn
D - Rudder servo slot
Pushrod diameter: 01.5mm
A- 9g plastic servo
B - Servo fixed mount
length
Pushrod diameter: 01.2mm
Rudder pushrod mounting hole
_==em�.,�
JIT=ti
?
t..• ..
4···· · · f@J
Adjusting the Nose hatch door pushrod size
P-38L LIGHTNING
ll•m Na.: FLW:ID1
D
!
�
