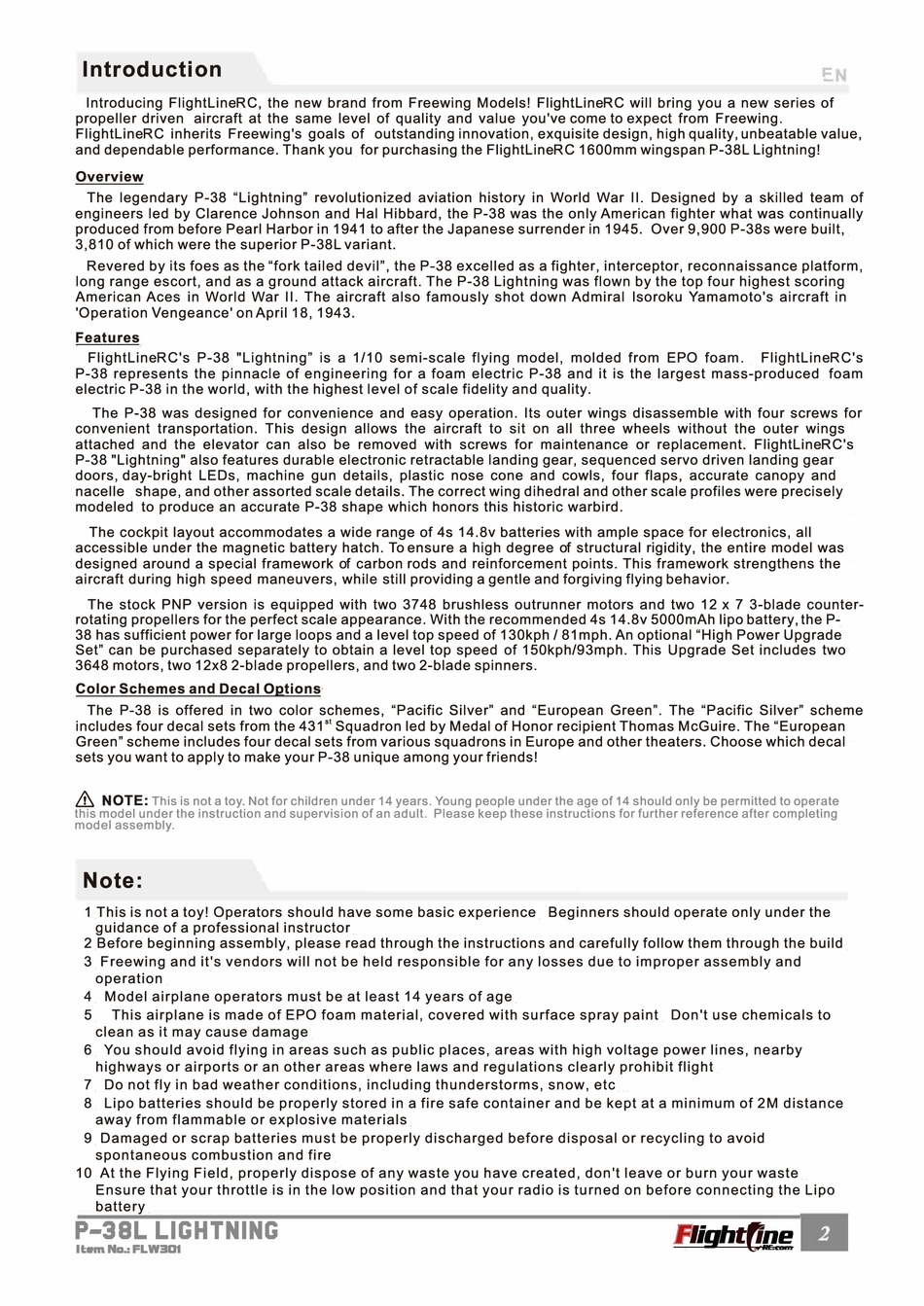

Introduction
Introducing FlightLineRC, the new brand from Freewing Models! FlightLineRC will bring you a new series of
propeller driven . aircraft at the same level of quality and value you've come to expect from Freewing.
FlightLineRC inherits Freewing's goals of . outstanding innovation, exquisite design, high quality, unbeatable value,
and dependable performance. Thank you. for purchasing the FlightLineRC 1600mm wingspan P-38L Lightning!
Overview
The legendary P-38 "Lightning" revolutionized aviation history in World War II. Designed by a skilled team of
engineers led by Clarence Johnson and Hal Hibbard, the P-38 was the only American fighter what was continually
produced from before Pearl Harbor in 1941 to after the Japanese surrender in 1945. Over 9,900 P-38s were built,.
3,810 of which were the superior P-38L variant.
Revered by its foes as the "fork tailed devil", the P-38 excelled as a fighter, interceptor, reconnaissance platform,
long range escort, and as a ground attack aircraft. The P-38 Lightning was flown by the top four highest scoring
American Aces in World War II. The aircraft also famously shot down Admiral lsoroku Yamamoto's aircraft in
'Operation Vengeance' on April 18, 1943.
Features
FlightLineRC's P-38 "Lightning" is a 1/10 semi-scale flying model, molded from EPO foam . . FlightLineRC's
P-38 represents the pinnacle of engineering for a foam electric P-38 and it is the largest mass-produced. foam
electric P-38 in the world, with the highest level of scale fidelity and quality.
The P-38 was designed for convenience and easy operation. Its outer wings disassemble with four screws for
convenient transportation. This design allows the aircraft to sit on all three wheels without the outer wings
attached and the elevator can also be removed with screws for maintenance or replacement. FlightLineRC 's
P-38 "Lightning" also features durable electronic retractable landing gear, sequenced servo driven landing gear
doors, day-bright LEDs, machine gun details, plastic nose cone and cowls, four flaps, accurate canopy and
nacelle . shape, and other assorted scale details. The correct wing dihedral and other scale profiles were precisely
modeled. to produce an accurate P-38 shape which honors this historic warbird.
The cockpit layout accommodates a wide range of 4s 14.8v batteries with ample space for electronics, all
accessible under the magnetic battery hatch. To ensure a high degree of structural rigidity, the entire model was
designed around a special framework of carbon rods and reinforcement points. This framework strengthens the
aircraft during high speed maneuvers, while still providing a gentle and forgiving flying behavior.
The stock PNP version is equipped with two 3748 brushless outrunner motors and two 12 x 7 3-blade counter­
rotating propellers for the perfect scale appearance. With the recommended 4s 14.8v 5000mAh lipo battery, the P- .
38 has sufficient power for large loops and a level top speed of 130kph / 81 mph. An optional "High Power Upgrade
Set" can be purchased separately to obtain a level top speed of 150kph/93mph. This Upgrade Set includes two
3648 motors, two 12x8 2-blade propellers, and two 2-blade spinners.
Color Schemes and Decal Options
The P-38 is offered in two color schemes, "Pacific Silver" and "European Green". The "Pacific Silver" scheme
includes four decal sets from the 431
Green" scheme includes four decal sets from various squadrons in Europe and other theaters. Choose which decal
sets you want to apply to make your P-38 unique among your friends!
&.
NOTE:
This is not a toy. Not for children under 14 years. Young people under the age of 14 should only be permitted to operate
this model under the instruction and supervision of an adult Please keep these instructions for further reference after completing
model assembly.
Note:
1.This is not a toy! Operators should have some basic experience. Beginners should operate only under the
guidance of a professional instructor.
2.Before beginning assembly, please read through the instructions and carefully follow them through the build.
3. Freewing and it's vendors will not be held responsible for any losses due to improper assembly and
operation.
4. Model airplane operators must be at least 14 years of age.
5. This airplane is made of EPO foam material, covered with surface spray paint. Don't use chemicals to
clean as it may cause damage.
6. You should avoid flying in areas such as public places, areas with high voltage power lines, nearby
highways or airports or an other areas where laws and regulations clearly prohibit flight.
7. Do not fly in bad weather conditions, including thunderstorms, snow, etc...
8. Lipo batteries should be properly stored in a fire safe container and be kept at a minimum of 2M distance
away from flammable or explosive materials.
9. Damaged or scrap batteries must be properly discharged before disposal or recycling to avoid
spontaneous combustion and fire.
10. At the Flying Field, properly dispose of any waste you have created, don't leave or burn your waste..
Ensure that your throttle is in the low position and that your radio is turned on before connecting the Lipo
battery.
