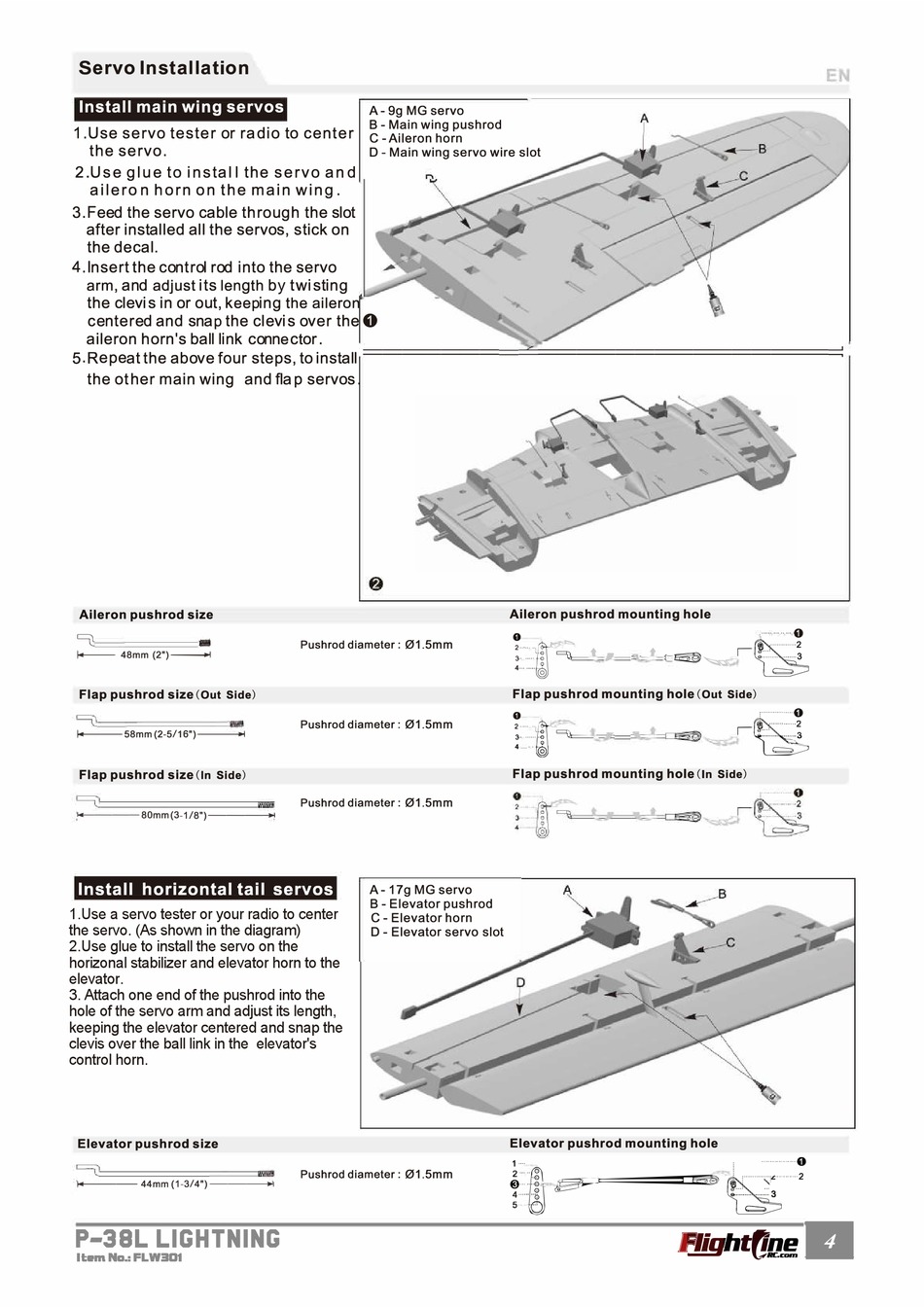

Servo Installation

Install main wing servos
1.Use servo tester or radio to ce nter
the servo.
2.Use g lu e to instal l the servo an d
ailero n ho r n o n the main wing.
3.Feed the servo cable through the slot
after installed all the servos, stick o n
the decal.
4.Insert the control rod into the servo
arm, and adjust its length by twisting
the clevis in or out, keeping the aileron
centered and snap the clevis over the
ailero n horn's ball link connector.
5. R epeat the above four steps, to install
the other main wing and flap servos.
Aileron pushrod size
9
•
I+--
48mm (2")-
Flap pushrod size (Out Side)
f4------58mm (2-5/16")-------.
Flap pushrod slze(ln Side)
>+-----80mm(3-1/8")----+<
Install horizontal tail servos
1.Use a servo tester or your radio to center
the servo. (As shown in the diagram)
2.Use glue to install the servo on the
horizonal stabilizer and elevator horn to the
elevator.
3. Attach one end of the pushrod into the
hole of the servo arm and adjust its length,
keeping the elevator centered and snap the
clevis over the ball link in the elevator's
control horn.
Elevator push rod size
,__ __ 44mm (1-3/4")----..
P-38L LIGHTNING
lt•m Na.: FLW3D1
A- 9g MG servo
B - Main wing pushrod
C -Aileron horn
D - Main wing servo wire slot
0
=======
Pushrod diameter: 01.5mm
Pushrod diameter: 01.5mm
Pushrod diameter: 01.5mm
A-17g MG servo
B - Elevator push rod
C - Elevator horn
D - Elevator servo slot
Pushrod diameter: 01.5mm
=====
=============== ::::::
Aileron pushrod mounting hole
w' ,.,,
0
,·,��'�
,�
�·· · · · ···· ·
=tl t.
·· · ·· · · ·
4
Flap push rod mounting hole (Out Side)
0
g
3· ......
,
.
4 ··0:1
. . . . . . .
Flap push rod mounting hole (In Side)
Elevator push rod mounting hole
l[JJi � �· · · · · · · · · · · · · · · · · · · · · :
4······ ··0
s- - - - o
.······ ··· ·· ···O
rfs_<!
'�
--------3
=
9- .........
