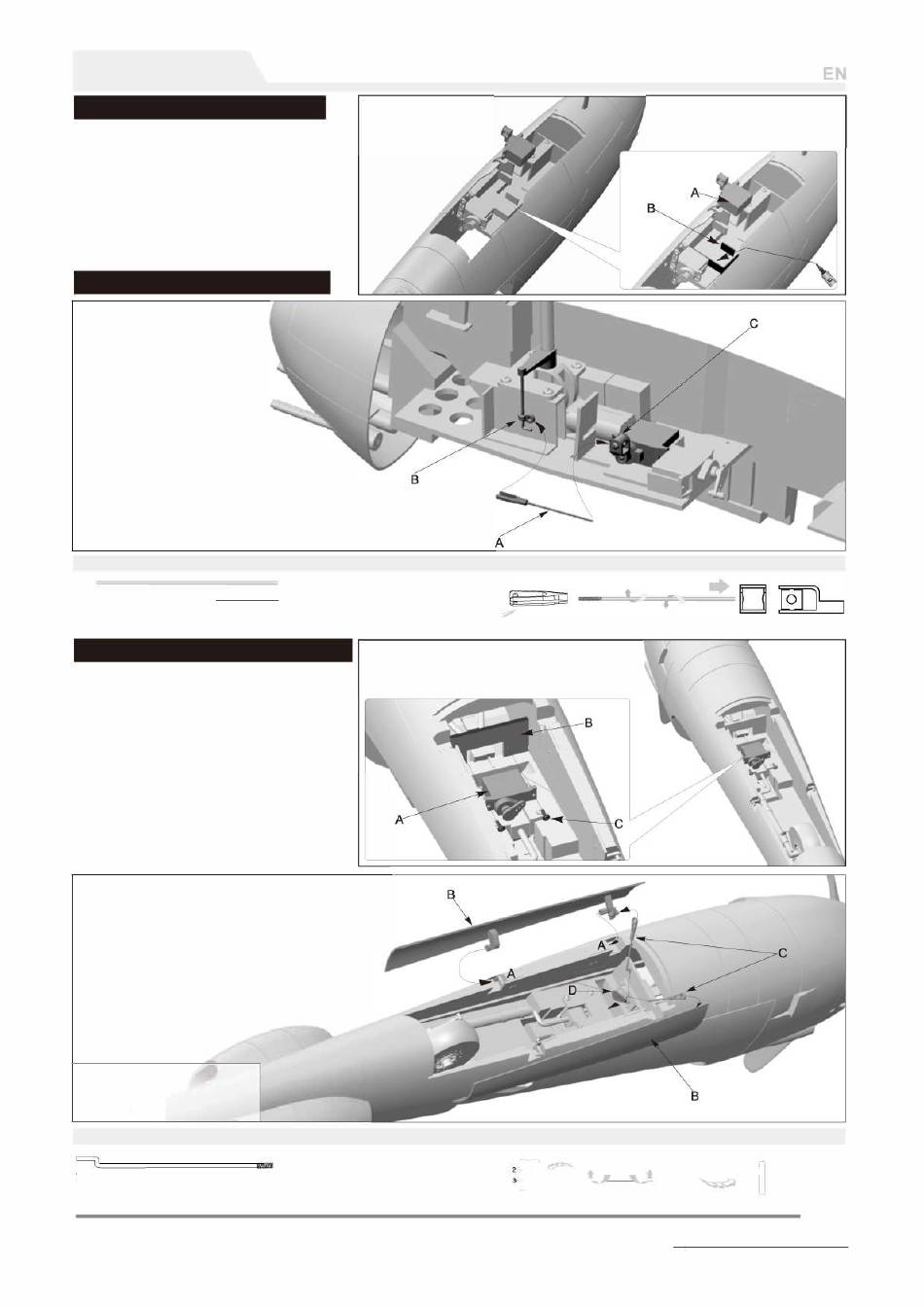

Installing servos
Install the nose steering servo
1. Use a Servo testor to center the
servo.
2. Use glue to attach the servo to
the servo fixed base.
Install the nose steering servo
A- Nose wheel steering push rod.
B - Nose wheel steering control ring.
C- Servo arm swivel lock.
1.Snap the plastic clevis side of the
nose wheel steering push rod (A) to the nose
steering control ring (B), and slide the
rubber tubing over the clevis to secure it.
2.Loosen the screw of the servo arm swivel lock (C),
and insert the other end of the nose wheel steering
pushrod. (A) into the servo arm swivel lock (C).
3.Center the servo and the nose wheel then tighten the
screw of the servo arm swivel lock to secure the pushrod.
Nose wheel steering pushrod size
.... r::,__ __
/B" )---•
55 mm(2 _ 1
Install the main landing gear hatch door
1. Use a servo tester to center the
servo.
2. Use glue to attach the servo to
the servo fixed base.
3. Use the two screws to secure
the servo to the servo fixed base
1.lnstall the main gear hatch doors (B) to the
hatch door fixed pins (A).
2.Insert the left/right hatch door pushrods to the
same arm hole of servo (D), and snap the
clevis
ends to the ball links of the hatch doors.
3.Use your radio to test the closed position of
the doors. Adjust the length of the rear hatch
door pushrods to adjust the doors for the best
closed position.
4.Repeat these steps for the main gear doors
on the second boom.
A- Hatch door fixed pins
B - Rear hatch doors(left/right)
C - Hatch door pushrods
D - Servo
Rear hatch door push rod size
,._---41.5mm(1-5/8")----.i
A- 9g MG servo
B - Servo fixed base
I
Push rod diameter: 01.2mm
A - 9g plastic servo
B - Servo fixed base
C - Screw (PWA2x8mm)
Pushrod diameter: 01.2mm
Nose wheel steering control ring
C@
t;;,.,
Q
Rear hatch door push rod installation hole position 0
��"-�
- - - - - - , ,
······ ·�
�
4- - - - - @
Servo arm swivel lock.
,.
