Introduction to spraying using the
FineCoat procedure
FineCoat is a low pressure spraying technique which
operates with a high volume of air at low air pressure.
The essential advantage of this system is the reduced
formation of spray mist. The material required to cover a
given surface is thus reduced to a minimum.
The FineCoat system is particularly suitable for repairing
and renovating.
Compared to conventional coating applications, an
economical and superior surface finish is achieved with
an environmentally friendly application.

Description of functions

The "FineCoat 6000 • 9800" spray application system
consists of a turbo-blower which supplies a FineCoat
paint spray gun with atomizing air via an air hose.
In the spray gun, part of the atomizing air is used to
increase the pressure in the paint container. This
pressure is used to convey coating material through the
ascending feed pipe to the tip where it is mixed with the
rest of the atomized air.

Applications

• Renovation and repair work
• Interior wall decoration

System diagram

12
14
13
11 10
GB
What kind of spraying materials can be
applied?
• Water-soluble and solvent-containing coating materials
• Wood preservatives
• Multi-color effect materials
• Multi-color paint
• Texture and effect paints

Technical data

Voltage
Power consumption P
Max. air ram pressure : 0.27 bar
Rpm
Weight (turbo-blower,
air hose and spray gun) : 11.5 kg
Mains cable
Container capacity
Air hose
Nozzle set (standard)
Max. noise level
turbo-blower
paint spray gun
* Measuring location: 1 m in distance from the unit 1.60 m above the
floor, reverberant floor.
** Measuring location: 2.5 m distance from the unit 1.60 m above the
floor.
1
2
3
4
5
6
7
8
9
14
FineCoat FineCoat
6000 9800
: 230 - 240 V~, 50 Hz 230 - 240 V~, 50 Hz
: 900 W 1350 W
1
0.55 bar
: 20 000 rpm 21 000 rpm
15 kg
: 3 m 3 m
: 1 liter 1 liter
: 4.5 m 7.5 m
: No. 4 (1.8 mm) No. 4 (1.8 mm)
: 73 dB (A) * 75 dB (A) *
: 76 dB (A) ** 80 dB (A) **

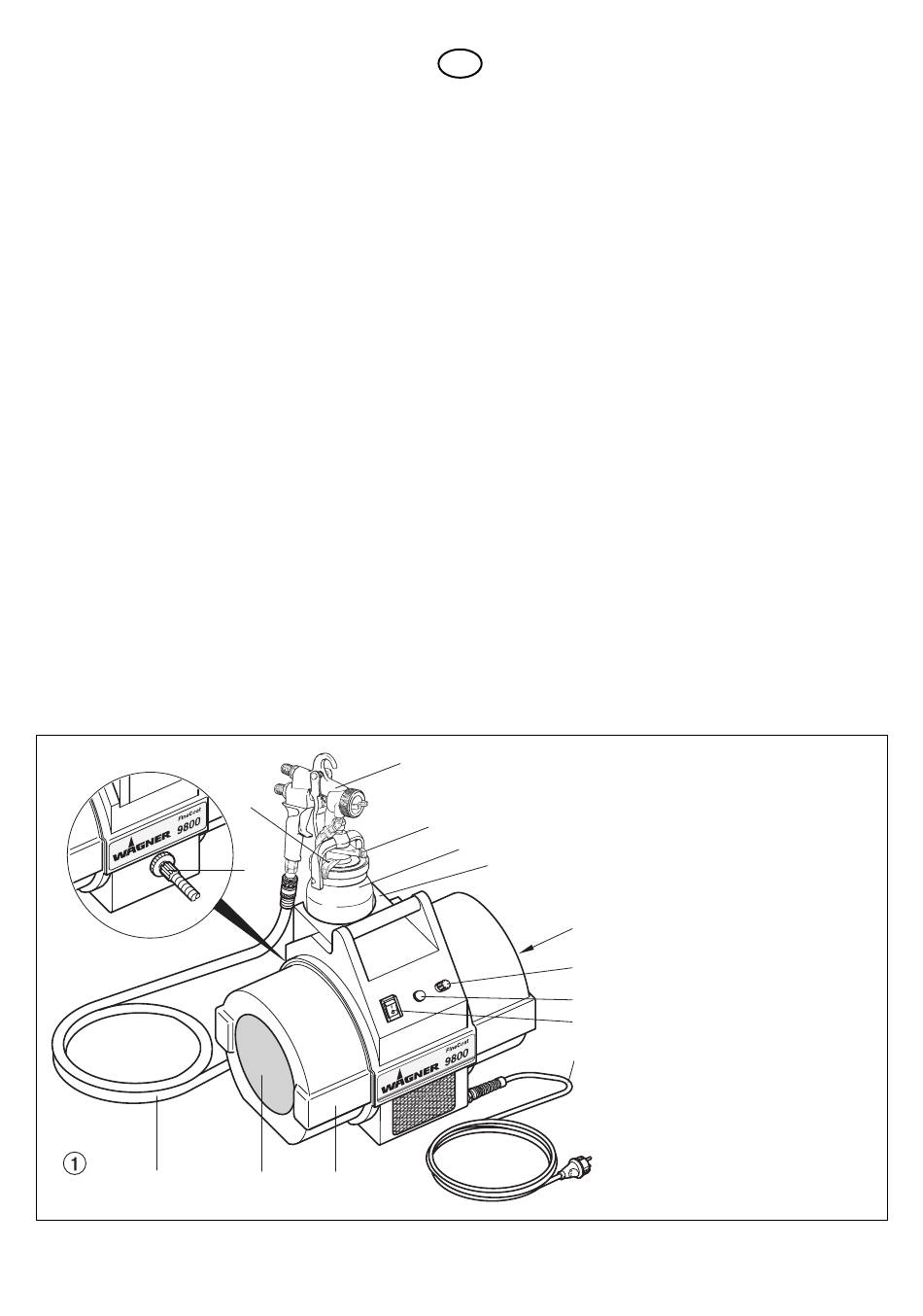

1 FineCoat paint spray gun
2 Closing lever for paint container
3 Paint container (contents: 1 liter)
4 Spray gun holder
5 Air filter
6 Fine wire fuse
7 Indicator lamp for air filter
contamination
8 ON/OFF switch
9 Mains cable
10 Turbo-blower
11 Motor air filter
12 Air hose
13 Air hose connection
14 Rotating lever for ascending
feed pipe
