(1)
3 Adjusting the swing doors
Caution! When the doors are opened and closed, it is
possible for items or fingers to become trapped be-
tween the door and the side of the unit. If the units are
used in teaching establishments then their use must be
supervised and the doors must be closed after use.

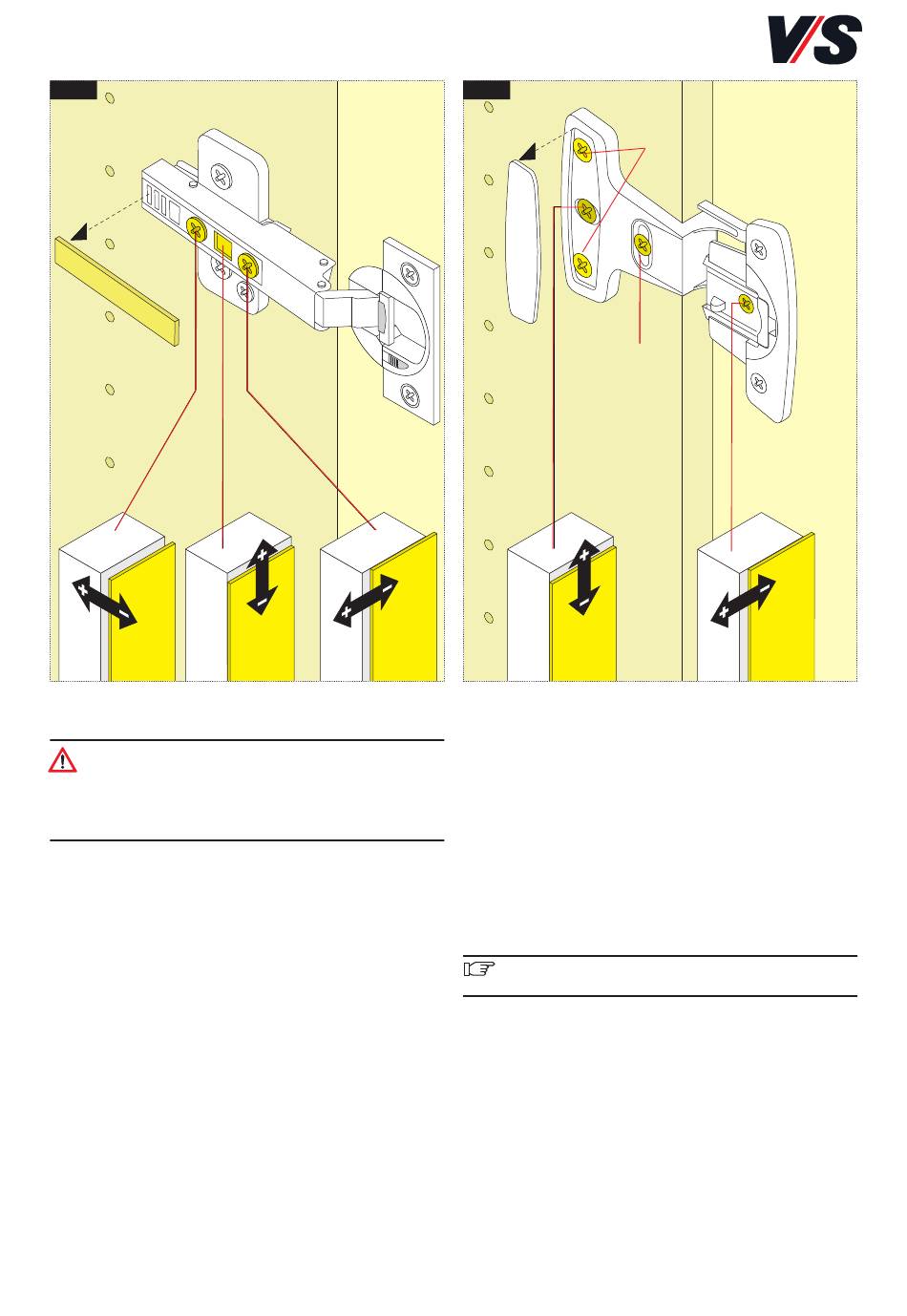

[Figure 1]
Opening angle up to 110°.
In the case of concealed hinges: Remove the protective caps.
Adjust as required using a screwdriver.
[Figure 1]
Adjust to
(+3 / -2.0 mm) (1)
(±3 mm) (2)
(±2 mm) (3)
(2) (3)
2
(6)
[Figure 2]
Opening angle up to 270°.
In the case of visible hinges: Release the screws (4) and
remove the protective caps. Then adjust as required using
a screwdriver.
[Figure 2]
Adjust to
Eccentric screw - positional adjustment (-2 mm) (5)
Eccentric screw - height adjustment (±2 mm) (6)
Third fixing screw (7)
Important! When adjustment is complete, replace the
protective caps.
(4)
(7)
(5)
